RFID Locker Systems for Gyms, Spas & Universities: Facility Requirements Guide

An RFID locker system that works well in a gym may not be the right configuration for a spa or university. The lock hardware can look similar, but the credential, operating mode and management priorities change with the facility.

This facility requirements guide focuses on how to configure a project for each application. If you are comparing individual RFID locker lock models, see our RFID Locker Locks Buying Guide for lock types, features and purchasing considerations.

For a broader comparison of RFID, keypad and fingerprint options across a locker project, see our Locker Solutions page.

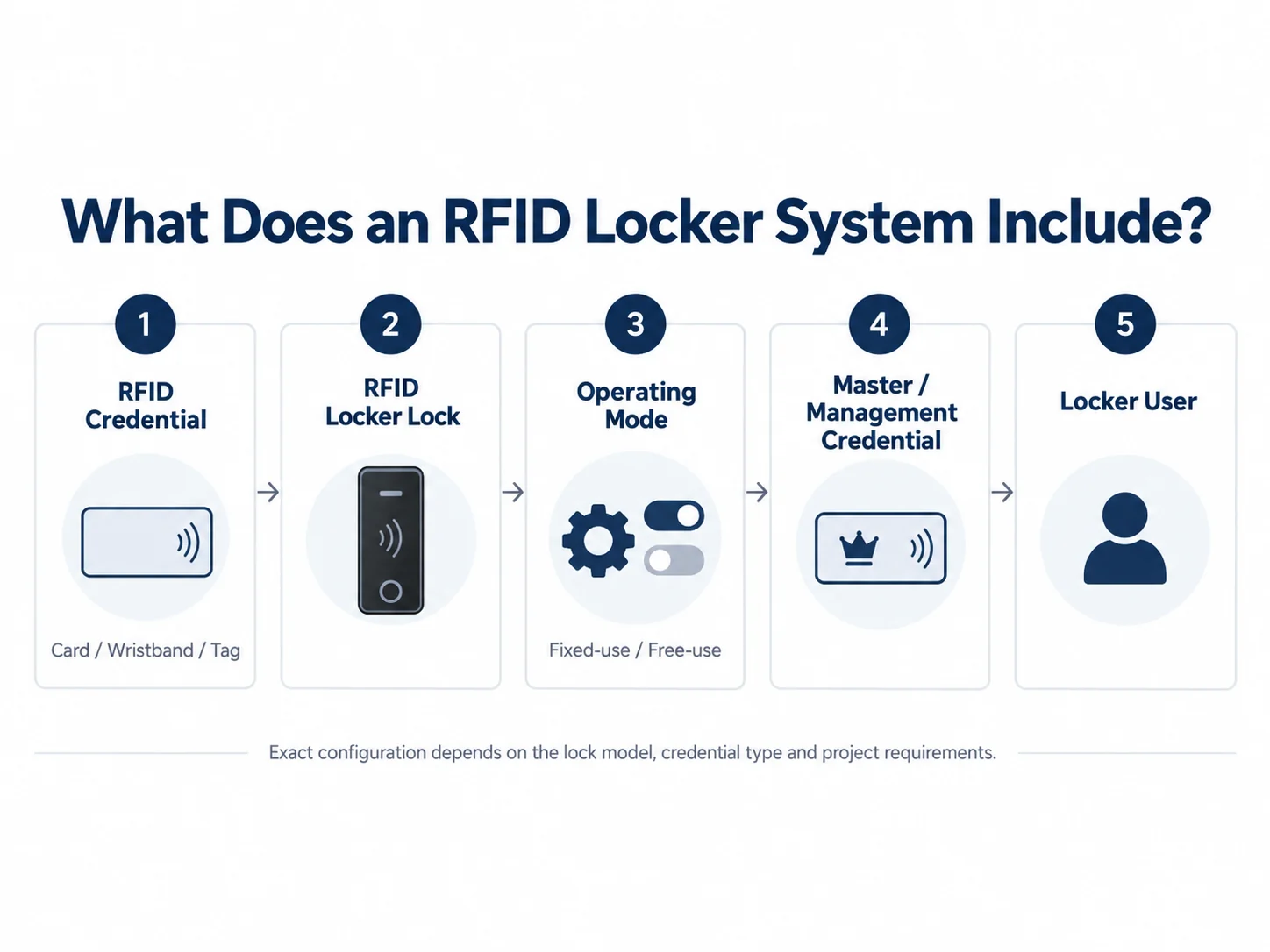

1. What Does an RFID Locker System Include?

An RFID locker system is more than the lock itself. Depending on the project, it may include RFID locker locks, compatible cards or wristbands, user operating modes, master credentials and different management methods.

A typical project may include:

• RFID locker locks
• RFID cards, wristbands or tags
• Fixed-use or free-use operating mode
• Master card or management credential
• Optional programming or management devices
• Locker cabinets and installation hardware

The exact configuration depends on the lock model, RFID credential type and project requirements. Not every RFID locker lock supports centralized software or networked management, so system functions should be confirmed before ordering.

2. RFID Locker Systems for Gyms

Gyms usually prioritize fast turnover and easy daily use. Members may choose a locker temporarily, while staff need a simple way to handle lost credentials, occupied lockers and peak-hour assistance.

Confirm whether the facility uses a membership card, wristband or tag, and whether the same credential should work at another access point. A gym may use free-use lockers, fixed-use lockers or a mixed layout, so the operating mode should be defined by zone.

For product options, compare the RFID locker locks collection after the gym workflow and locker structure are confirmed.

3. RFID Locker Systems for Spas and Pools

Spa, sauna and pool projects commonly use free-use lockers and need a simple guest experience. A waterproof wristband may be convenient, but the lock's operating environment and credential compatibility must be confirmed separately.

Review humidity, cleaning conditions, direct splashes, wristband handling and the staff reset process. If one wristband is expected to support admission, services or cashless payment as well as the locker, test the complete credential workflow before ordering.

4. RFID Locker Systems for Universities

Universities usually require assigned or fixed-use lockers for a term, semester or academic year. The project therefore needs clearer administration for assignments, lost student cards, end-of-term clearance and reassignment.

Confirm whether an existing student card can be reused, who manages the locker records and how staff receive master access. Campus projects should also define battery replacement, spare parts and support responsibilities by building or department.

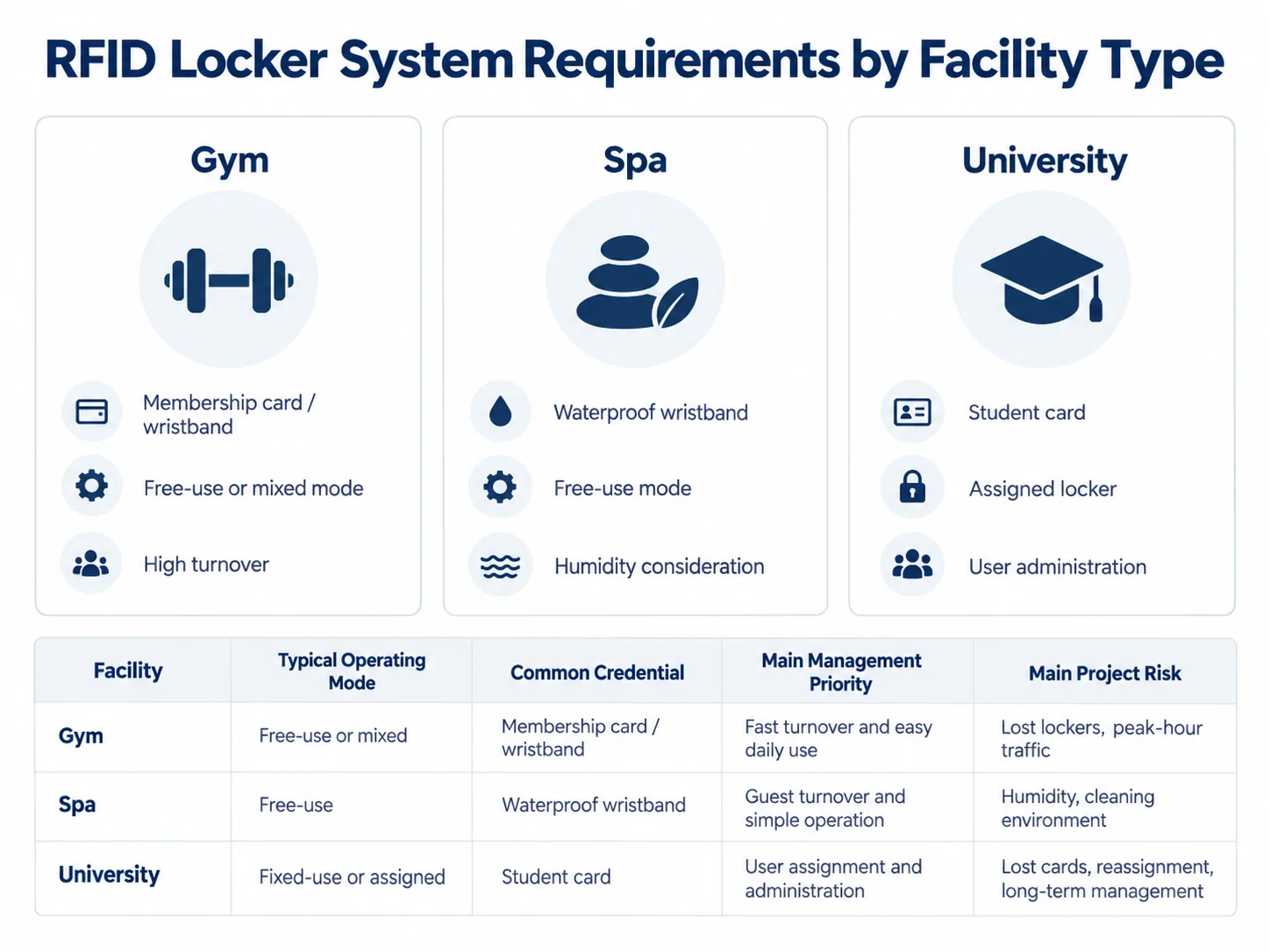

5. RFID Locker System Requirements by Facility Type

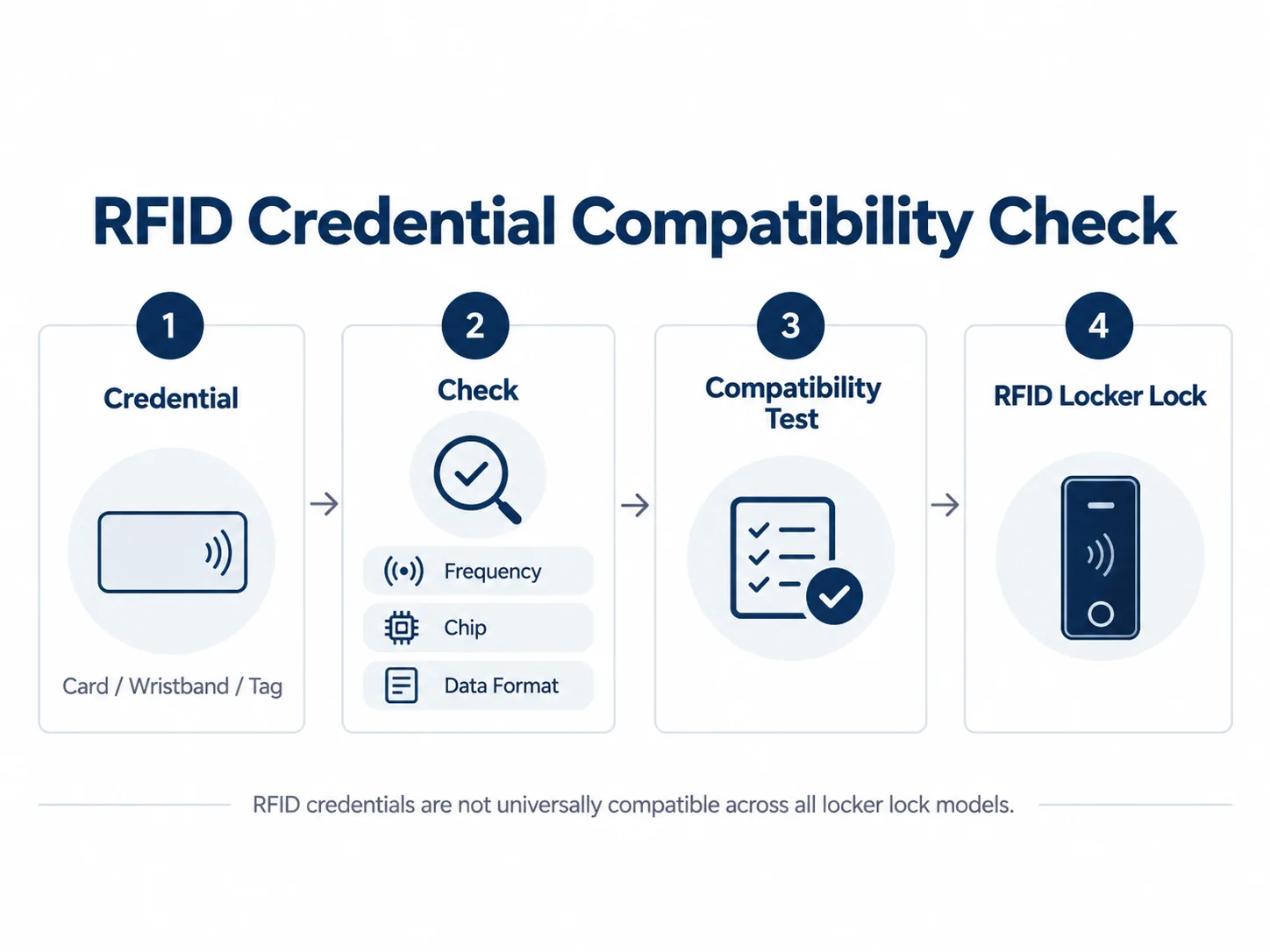

6. Confirm RFID Credential Compatibility

“RFID” describes a family of technologies, not one universal card. A card, wristband or tag should be checked by frequency, chip and data format before it is treated as compatible with a locker lock.

Send the supplier the credential frequency, chip or card type, available technical data and a sample card or wristband. If one credential must work across turnstiles, room doors, payment and lockers, test each subsystem as part of the complete workflow.

7. Match the RFID Locker Lock to the Locker Structure

Before confirming a model, check the locker material, door thickness, opening direction, available mounting space and latch position.

Installation dimensions vary between locker lock models. For project orders, confirm the locker drawing or sample before mass production.

For detailed installation planning, see our RFID Locker Lock Installation Guide.

8. Information Needed to Configure an RFID Locker System

• Project type: gym / spa / university / other
• Project quantity
• Locker material
• Locker door thickness
• Locker photos or drawings
• RFID card / wristband type
• RFID frequency or chip information if available
• Fixed-use or free-use requirement
• Master card / management requirement
• Installation country
• Sample quantity

9. Frequently Asked Questions

Can a gym membership card open an RFID locker?

Possibly, but the frequency, chip, data format and lock configuration must be compatible. Send technical information or a sample credential for testing before ordering in volume.

What is the best RFID locker mode for a spa?

Free-use mode is common where guests select an available locker for one visit. The correct configuration still depends on the facility workflow, staff reset process and selected lock model.

Can university student cards be used for lockers?

They may be used when the locker system supports the relevant credential technology and administration workflow. Compatibility and lost-card procedures should be tested before rollout.

Should an RFID locker project start with samples?

Yes. Test the credential, operating mode, installation fit, staff override and maintenance access on an actual locker before approving the bulk configuration.
