2036Password APP-S2-Y TTLock Voice Hotel Keypad Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The 2036Password APP-S2-Y is a TTLock hotel keypad lock developed for hotel door projects, hospitality distributors and access-control contractors. It combines a voice keypad interface, TTLock APP management and an 8503 mainboard in a silver stainless-steel panel measuring 287.5 × 68 × 25 mm.
This model is supplied with a No. 3 reverse-mount lock body as the standard configuration, while a No. 4 lock body is available for projects requiring a different side-bar size. Door preparation, mounting direction and lock-body compatibility should be confirmed before bulk ordering.
Key Features
- Hotel keypad lock designed for hospitality projects and distributor programs
- Password entry through a voice-enabled keypad
- TTLock APP solution for compatible access-management requirements
- 8503 mainboard configuration
- Stainless-steel panel construction
- Silver exterior finish
- Slim 287.5 × 68 × 25 mm panel dimensions
- Standard No. 3 reverse-mount lock body with cylinder and two keys
- Optional No. 4 lock body for alternative door preparation
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Panel length | 287.5 mm |
| Panel width | 68 mm |
| Panel height | 25 mm |
| No. 3 lock body side bar | 26 × 203 mm |
| No. 4 lock body side bar | 22 × 203 mm |
Dimension Drawing

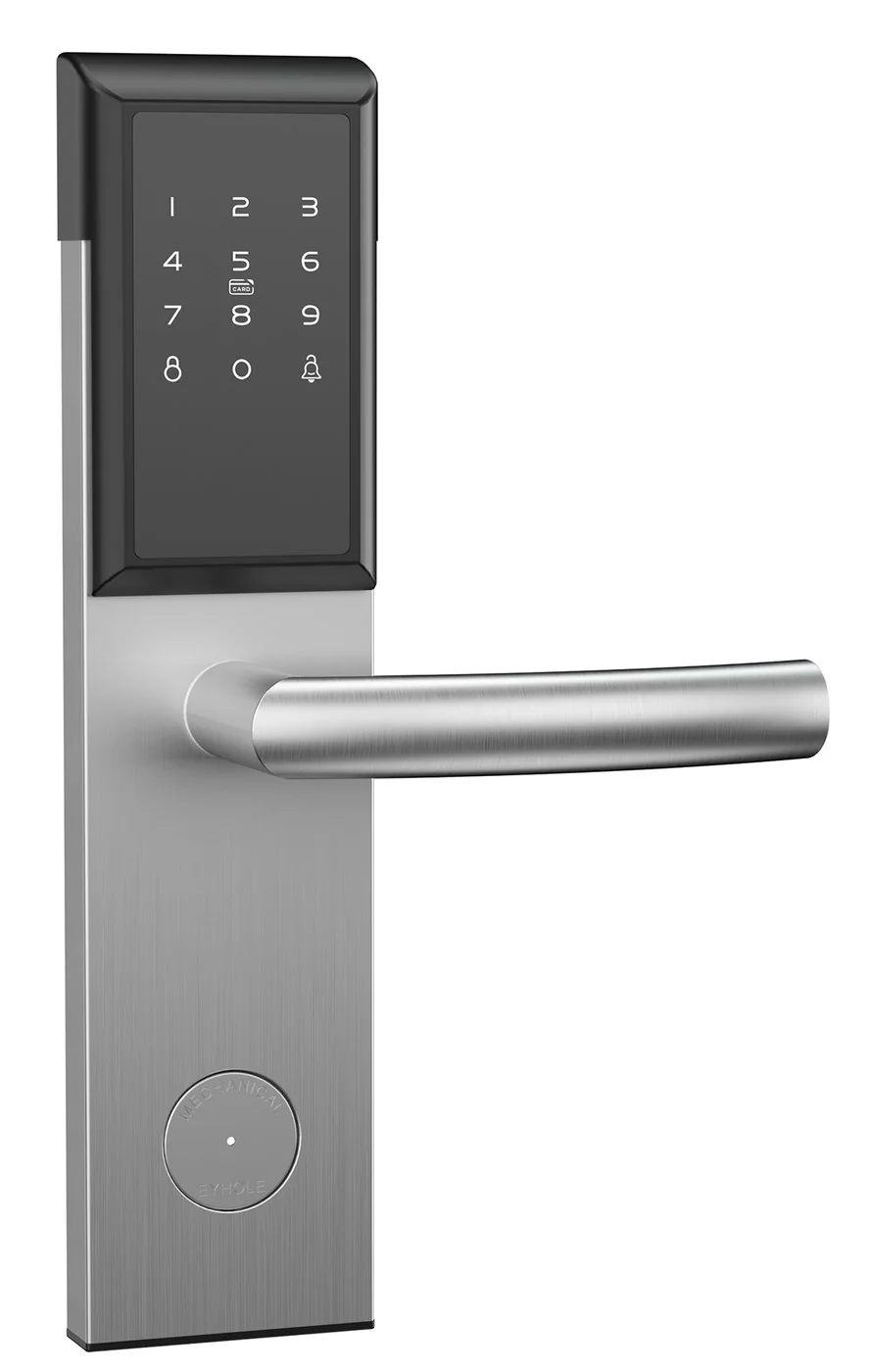

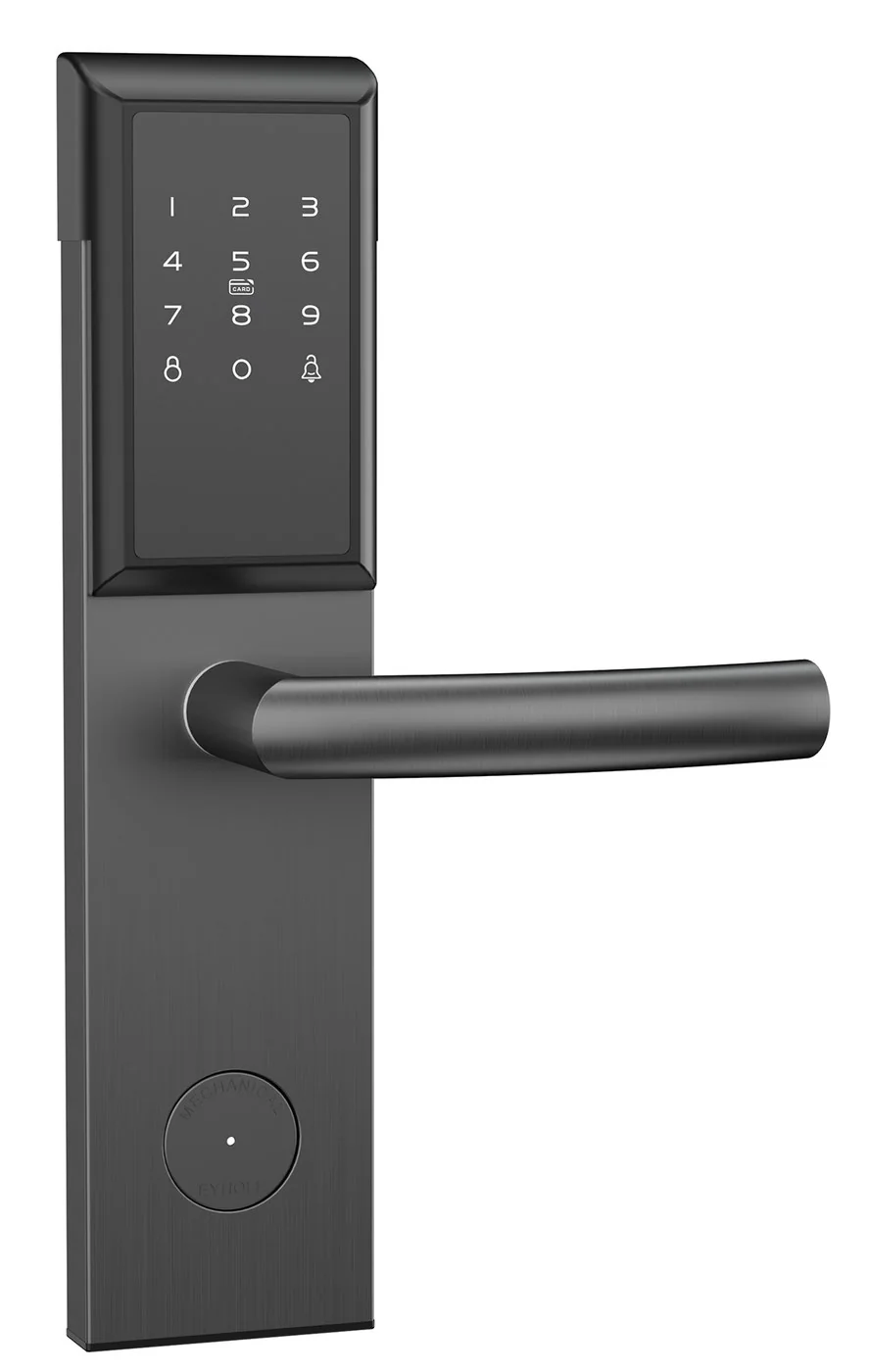

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 2.11 kg
- Unit package size: 31 × 21 × 16 cm
- Carton size: 74 × 32 × 42 cm
- Quantity per carton: 10 sets

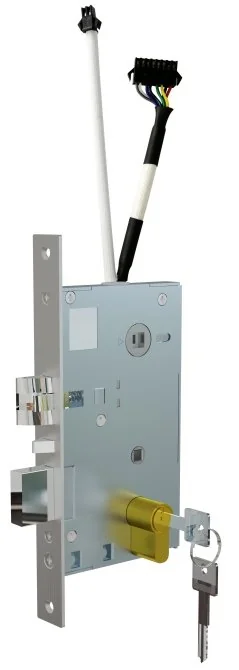

Standard Lock Body
The standard configuration uses the No. 3 reverse-mount lock body with a 26 × 203 mm side bar. This lock-body package includes a cylinder and two mechanical keys.
A No. 4 lock body with a 22 × 203 mm side bar is available as an optional configuration. The datasheet references standard and reverse-mount formats for the lock-body options, so buyers should confirm the required mounting direction and door preparation with sales.
OEM / ODM
The 2036Password APP-S2-Y can be evaluated for hotel projects, distributor programs and OEM/ODM orders. Private-label branding, finish requirements, packaging specifications, mainboard selection and APP requirements should be confirmed against the intended project configuration.
For an accurate quotation, provide the door type, door preparation, mounting direction, required lock body, order quantity and destination country. Include any branding or packaging requirements when submitting the enquiry.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | 2036Password APP-S2-Y |
| Product category | Hotel Keypad Lock |
| Keypad type | Voice keypad version |
| APP solution | TTLock |
| Mainboard | 8503 |
| Material | Stainless steel |
| Color | Silver |
| Panel size | 287.5 × 68 × 25 mm |
| Standard lock body | No. 3 reverse-mount lock body |
| Standard side bar | 26 × 203 mm |
| Optional lock body | No. 4 lock body |
| Optional side bar | 22 × 203 mm |
FAQs
What applications is this hotel keypad lock designed for?
The 2036Password APP-S2-Y is intended for hotel door projects, hospitality renovations and distributor supply programs. The compatible door material, thickness and existing cut-out dimensions are not specified in the datasheet and must be confirmed before ordering.
Which unlock methods does this model support?
This model supports keypad password entry and the TTLock APP solution. It is identified as a voice keypad version and uses an 8503 mainboard.
How do I confirm whether the lock body will fit my hotel door?
Provide the door preparation drawing, door thickness, handing or mounting direction and existing mortise dimensions. The standard No. 3 lock body uses a 26 × 203 mm side bar, while the optional No. 4 version uses a 22 × 203 mm side bar.
Is OEM branding available, and what is the MOQ?
OEM/ODM requirements for the 2036Password APP-S2-Y can be discussed for distributor and project orders. The minimum order quantity is not listed in the datasheet, so confirm the MOQ with sales based on the required branding, packaging and configuration.
What information is required to request a quotation?
Send the required quantity, destination country, door type, door thickness, mounting direction and preferred lock-body number. Also specify whether you require private labeling, custom packaging or a particular APP and mainboard configuration.
