Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The 2036 TTLock hotel keypad lock is designed for hotel rooms and accommodation projects requiring password access together with TTLock APP management. Its stainless steel panels, gunmetal finish, voice keypad interface and 8503 mainboard provide a defined specification for distributors, hotel contractors and private-label buyers.
Two 203 mm lock body options are available for different door preparation requirements. Buyers can select the No.3 lock body with a 26 × 203 mm faceplate or the No.4 lock body with a narrower 22 × 203 mm faceplate.
Key Features
- Keypad password access for hotel room entry
- TTLock APP solution for compatible mobile management
- Voice keypad version for audible operating prompts
- 8503 mainboard configuration
- Stainless steel panel construction
- Gunmetal exterior finish
- No.3 standard or reverse-mount lock body option
- No.4 standard or reverse-mount lock body option
- Lock body faceplate widths of 26 mm or 22 mm for project matching
Specifications
| Item | Specification |
|---|
| Panel length | 287.5 mm |
|---|
| Panel width | 68 mm |
|---|
| Panel height | 25 mm |
|---|
| No. 3 lock body side bar | 26 × 203 mm |
|---|
| No. 4 lock body side bar | 22 × 203 mm |
|---|
| Unit weight | 2.11 kg |
|---|
| Unit package size | 31 × 21 × 16 cm |
|---|
| Carton size | 74 × 32 × 42 cm |
|---|
| Quantity per carton | 10 sets |
|---|
| Model | 2036Password APP-S2-Gunmetal |
|---|
| Product category | Hotel Keypad Lock |
|---|
| Keypad type | Voice keypad version |
|---|
Application
TTLock solution with 8503 mainboard; connectivity configuration confirm with sales

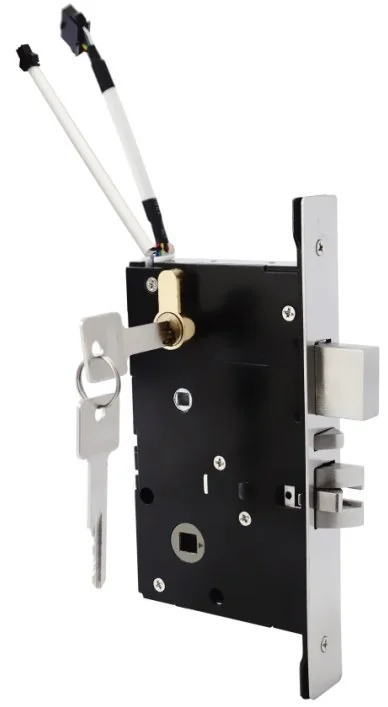

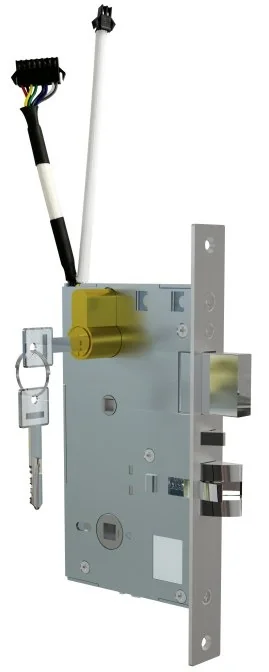

Standard Lock Body
The standard configuration uses the No. 3 reverse-mount lock body with a 26 × 203 mm side bar. This lock-body package includes a cylinder and two mechanical keys.
A No. 4 lock body with a 22 × 203 mm side bar is available as an optional configuration. The datasheet references standard and reverse-mount formats for the lock-body options, so buyers should confirm the required mounting direction and door preparation with sales.
OEM / ODM
This model supports OEM / ODM orders. Confirm branding, finish, packaging, and MOQ with sales.
