2037Password TTLock Voice Keypad Hotel Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The 2037Password is a TTLock hotel keypad lock developed for hotel rooms and other managed accommodation projects requiring password and APP-based access. It combines a voice keypad version, TTLock solution and 8503 mainboard in a 290 mm stainless steel panel with a silver finish.
This model is supplied with a No.3 reverse-mount lock body as standard, while a No.4 reverse-mount configuration is available for projects with different installation requirements. Door preparation, handing and lock-body compatibility should be checked before bulk ordering.
Key Features
- Password keypad access for managed guest-room entry
- TTLock APP-Y solution for compatible access-management workflows
- Voice keypad version for guided keypad operation
- 8503 mainboard configuration
- Stainless steel front and rear panel construction
- Silver surface finish
- Slim 290 × 68 × 16 mm panel dimensions
- Standard No.3 reverse-mount lock body
- Optional No.4 reverse-mount lock body for alternative door preparation
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Specification | Measurement |
| Panel length | 290 mm |
| Panel width | 68 mm |
| Panel height | 16 mm |
| No.3 lock body side bar | 26 × 203 mm |
| No.4 lock body side bar | 22 × 203 mm |
Dimension Drawing

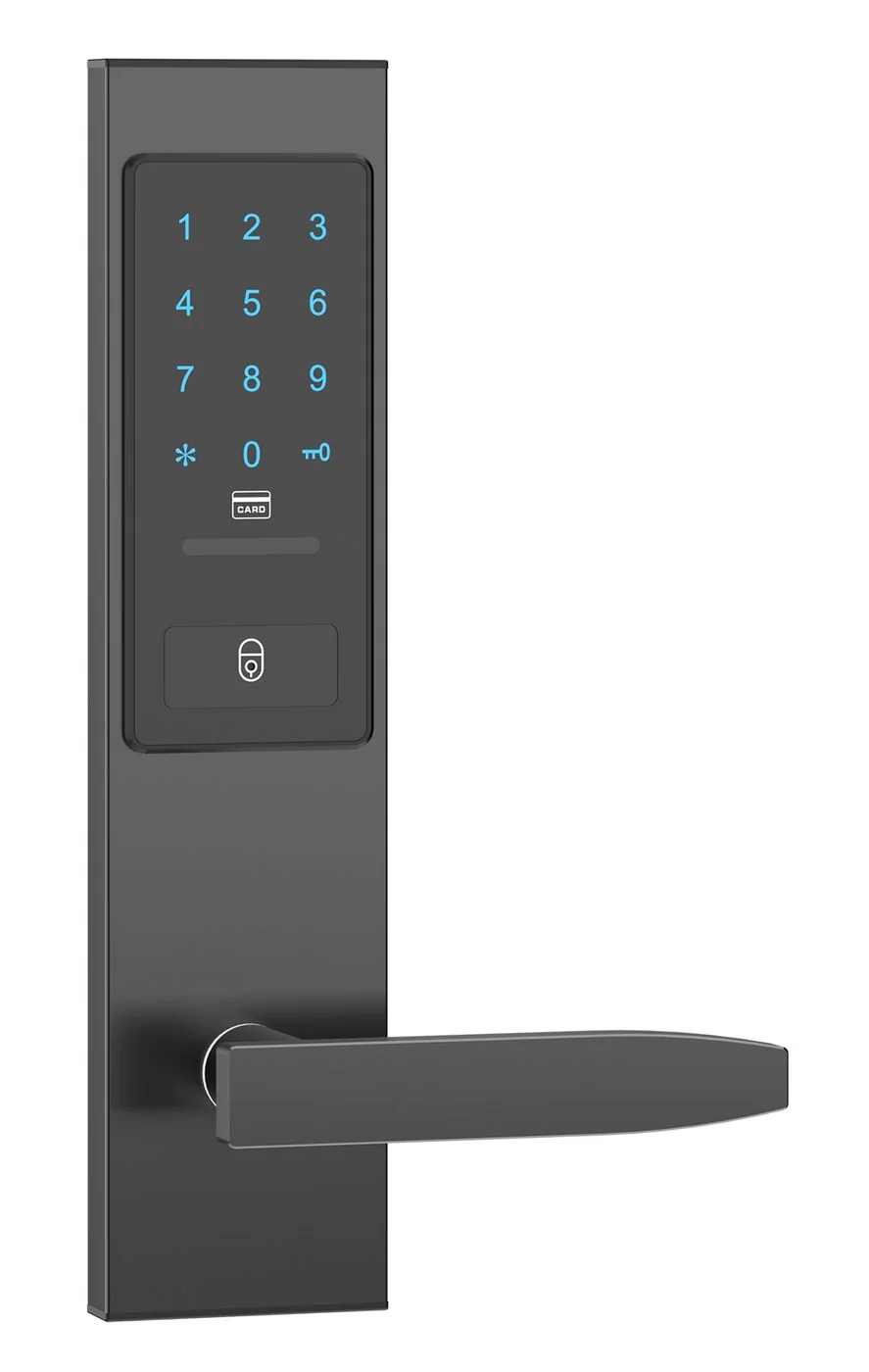

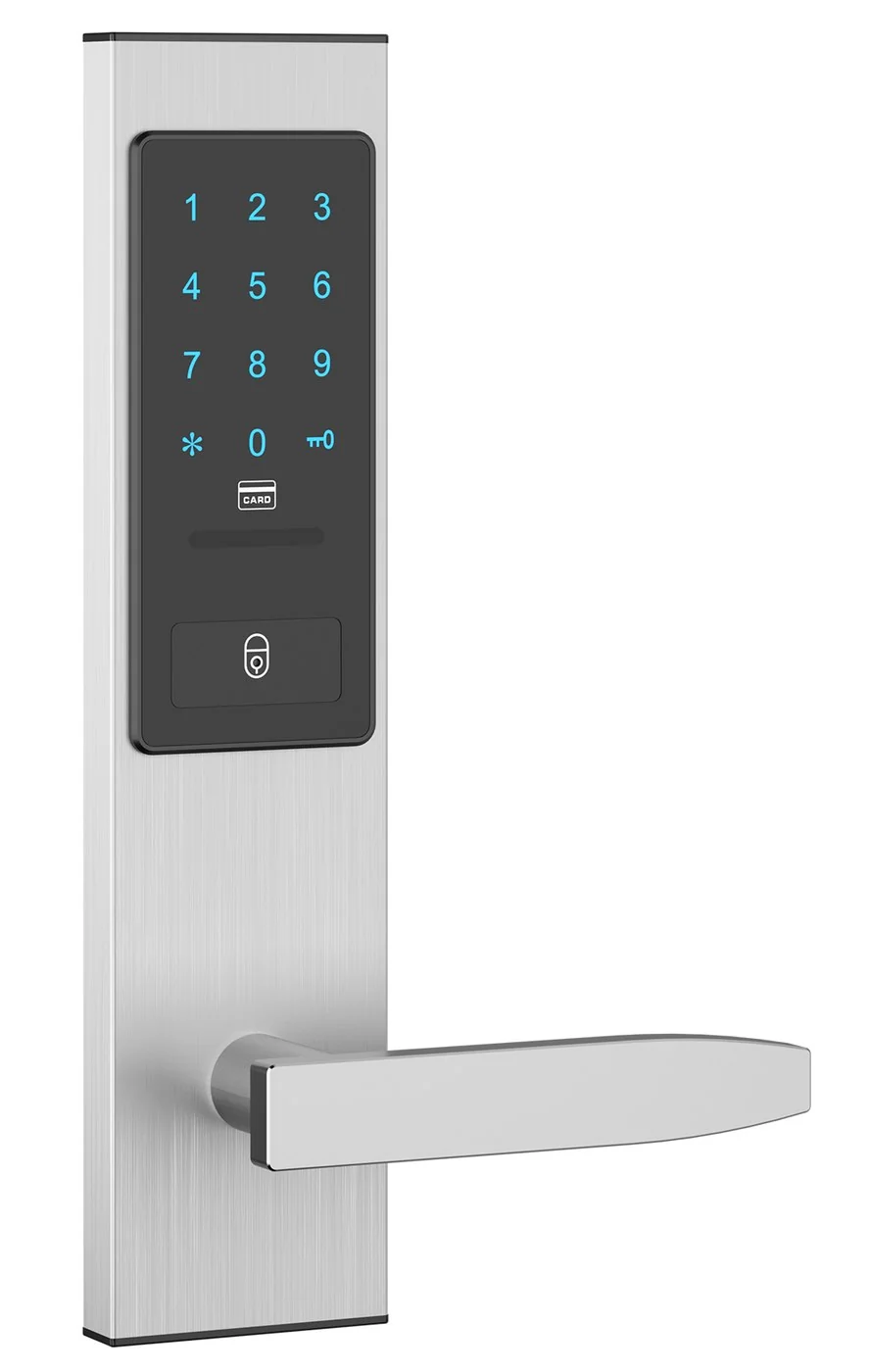

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 2.17 kg
- Unit package size: 31 × 21 × 16 cm
- Export carton size: 74 × 32 × 42 cm
- Quantity per carton: 10 sets

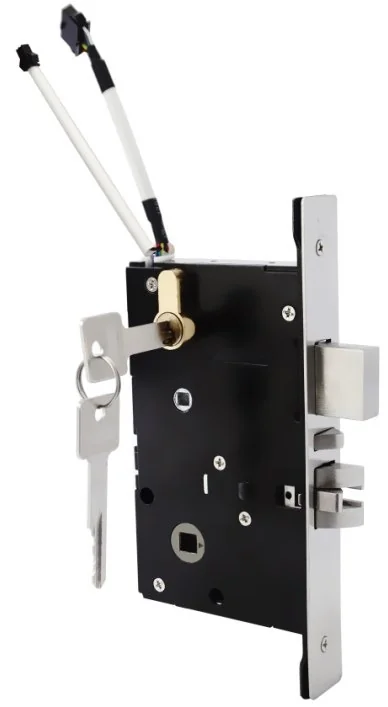

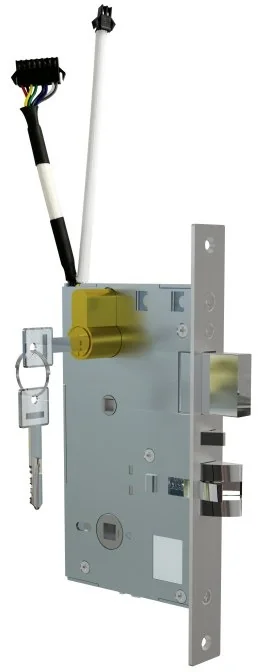

Standard Lock Body
The standard configuration uses a No.3 reverse-mount lock body with a 26 × 203 mm side bar. The listed No.3 lock-body assembly includes a cylinder and two mechanical keys.
A No.4 standard or reverse-mount lock body with a 22 × 203 mm side bar is available as an optional configuration. Buyers should provide door drawings, existing mortise dimensions or installation photos so the correct lock body can be confirmed before production.
OEM / ODM
OEM and ODM requirements for the 2037Password can be reviewed according to the project specification. Private labeling, finish changes, packaging design and alternative board or APP configurations are subject to technical confirmation and order requirements.
For an accurate quotation, provide the door type, required lock-body configuration, order quantity, destination country and any branding or packaging requirements. Sales can then confirm compatibility, available customization and export configuration.
Technical Snapshot
| Item | Specification |
|---|---|
| Product category | Hotel Keypad Lock |
| Model | 2037Password APP-Y |
| Version | Voice Keypad Version |
| Access system | TTLock Solution |
| Mainboard | 8503 |
| Main material | Stainless steel |
| Color | Silver |
| Unlock methods | Password keypad and TTLock APP |
| Panel dimensions | 290 × 68 × 16 mm |
| Standard lock body | No.3 reverse-mount lock body |
| Optional lock body | No.4 standard or reverse-mount lock body |
| Unit weight | 2.17 kg |
FAQs
What type of project is the 2037Password suitable for?
The 2037Password is designed as a hotel keypad lock for guest rooms and managed accommodation projects. Before ordering, buyers should confirm the door structure, opening direction, mortise preparation and required lock-body type.
Which unlocking methods does this model support?
This version supports password keypad access and TTLock APP operation. It is identified as the voice keypad version and uses the TTLock solution with an 8503 mainboard.
How do I choose between the No.3 and No.4 lock bodies?
The standard No.3 reverse-mount lock body has a 26 × 203 mm side bar, while the optional No.4 version has a 22 × 203 mm side bar. Send the existing mortise dimensions, door drawings or clear installation photos to sales for compatibility checking.
Can this hotel lock be supplied for OEM or private-label orders?
OEM and ODM requests for the 2037Password can be evaluated for project and distributor orders. Branding, finish, packaging and system-board requirements must be confirmed with sales, and the applicable MOQ depends on the requested configuration.
What information is needed to request a quotation?
Provide the required quantity, destination country, door type, door handing and preferred No.3 or No.4 lock body. Include any logo, packaging, finish or APP requirements so sales can prepare a configuration-specific quotation.
