2039Password TTLock Voice Hotel Keypad Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The 2039Password is a TTLock hotel keypad lock developed for hotel rooms, managed accommodation, and project installations requiring password-based door access. Its voice keypad version combines TTLock APP management with an 8534 mainboard, an aluminum-alloy panel, and a black-and-silver powder-coated finish.
This model is supplied with a No. 3 reverse-mount lock body, cylinder, and two mechanical keys. The defined panel and lock-body dimensions help hotel buyers, distributors, and contractors evaluate installation compatibility before placing bulk or OEM orders.
Key Features
- Voice keypad version for password-operated hotel room access
- TTLock solution for compatible APP-based lock management
- 8534 mainboard configuration
- Aluminum-alloy front and rear panel construction
- Black-and-silver powder-coated surface finish
- Slim 295 × 74 × 12 mm panel dimensions
- No. 3 reverse-mount lock body supplied as standard
- Standard lock-body package includes cylinder and two mechanical keys
- Packed 10 sets per export carton for project and distributor orders
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Specification | Measurement |
| Panel Length | 295 mm |
| Panel Width | 74 mm |
| Panel Height | 12 mm |
| Lock Body Side Bar | 26 × 203 mm |
| Unit Package Size | 310 × 210 × 160 mm |
| Carton Size | 740 × 320 × 420 mm |

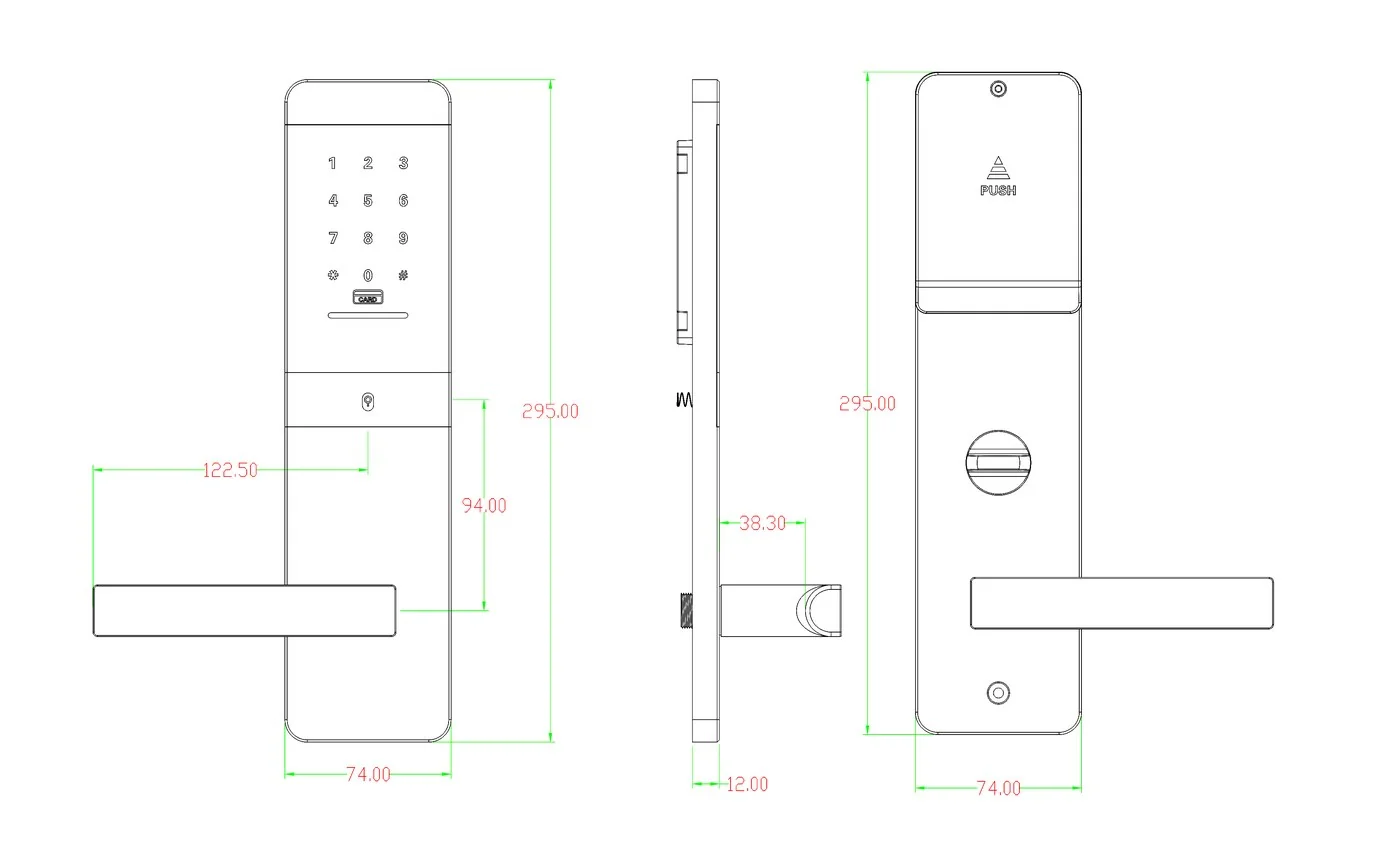

Dimension Drawing

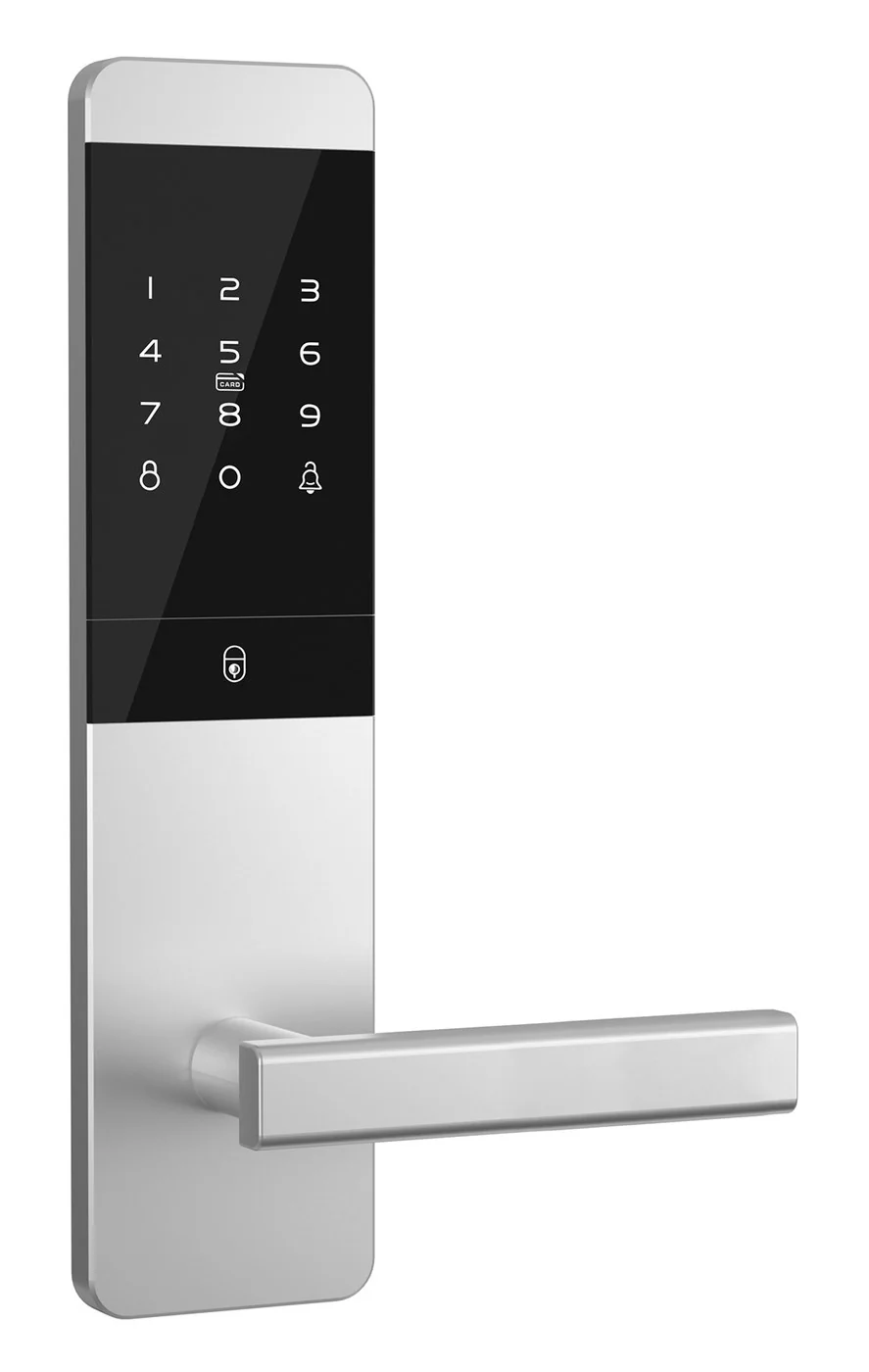

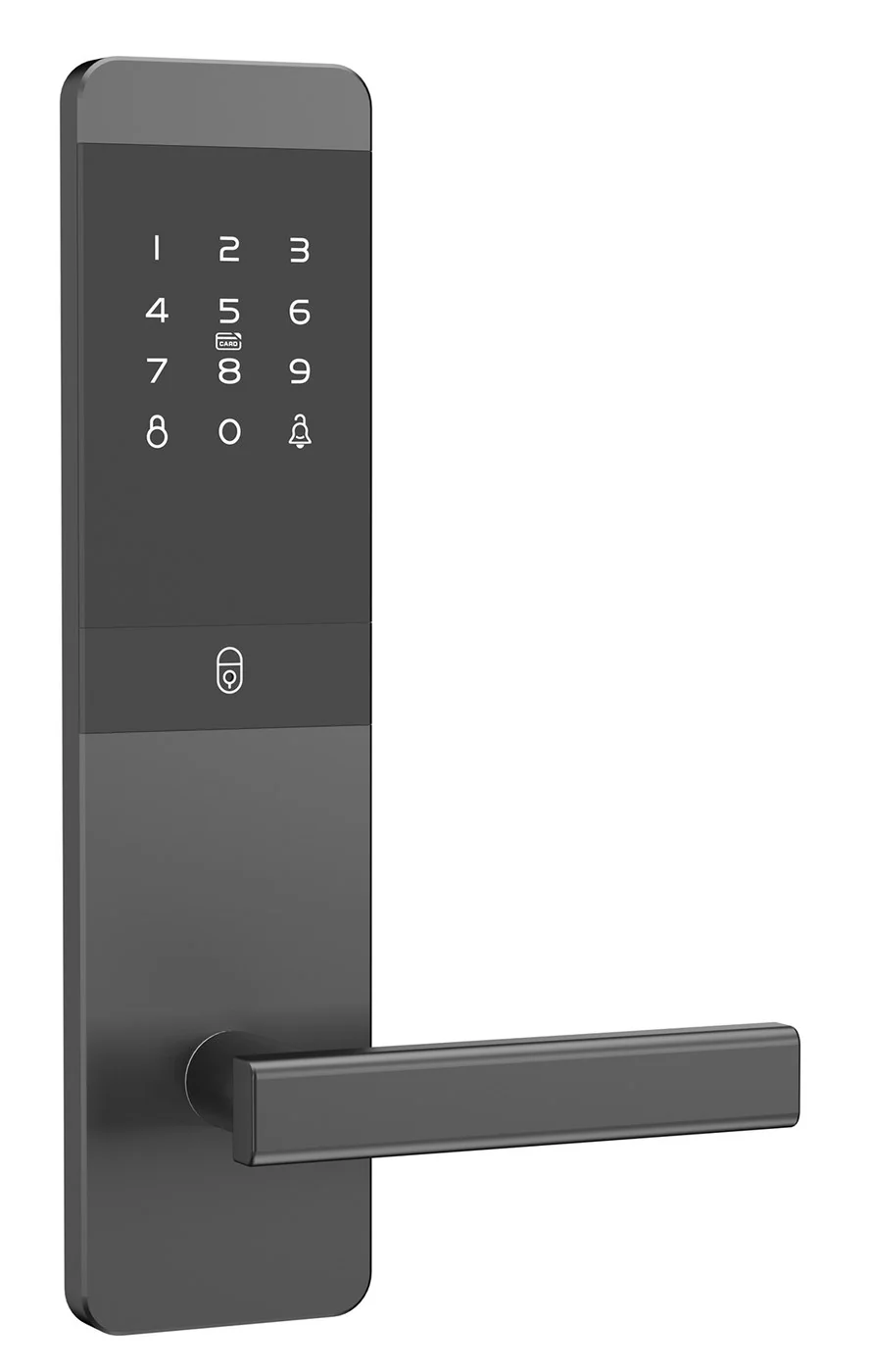

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 2.46 kg
- Unit package size: 31 × 21 × 16 cm
- Export carton size: 74 × 32 × 42 cm
- Quantity per carton: 10 sets

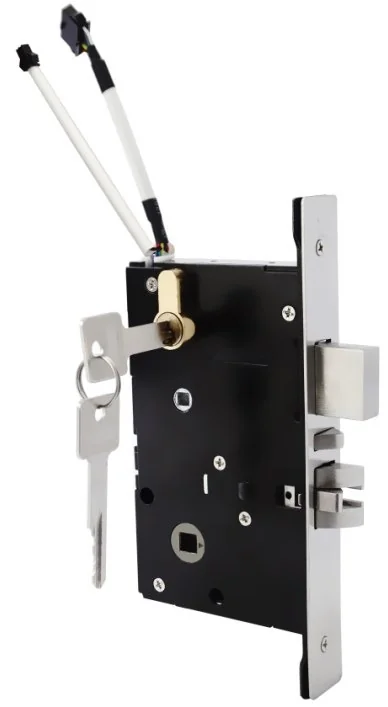

Standard Lock Body
The standard configuration uses a No. 3 reverse-mount lock body with a 26 × 203 mm side bar. The lock-body set includes the cylinder and two mechanical keys.
Buyers should confirm the existing door preparation, lock-body orientation, handing, cutout dimensions, and cylinder position before ordering for replacement or retrofit projects.
OEM / ODM
OEM and ODM enquiries are accepted for private labeling, surface-finish requirements, branded packaging, and project-specific configurations. The standard SKU uses the TTLock solution and 8534 mainboard; alternative APP or board requirements should be confirmed with sales before quotation.
For an accurate proposal, provide the required quantity, destination country, door type, door handing, preferred finish, packaging requirements, and any APP or mainboard specifications.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | 2039Password APP |
| Product Category | Hotel Keypad Lock |
| Version | Voice Keypad Version |
| APP Solution | TTLock |
| Mainboard | 8534 |
| Main Material | Aluminum Alloy |
| Finish | Powder-Coated |
| Color | Black/Silver |
| Panel Dimensions | 295 × 74 × 12 mm |
| Standard Lock Body | No. 3 Reverse-Mount Lock Body |
| Lock Body Side Bar | 26 × 203 mm |
| Included Lock Body Accessories | Cylinder and 2 Keys |
FAQs
What applications is the 2039Password hotel keypad lock designed for?
The 2039Password is intended for hotel rooms, managed accommodation, and similar hospitality projects requiring keypad and APP-based access. Door compatibility should be checked against the panel dimensions, reverse-mount lock body, door handing, and existing door preparation.
Which unlock methods does this model support?
This model supports keypad password access and the TTLock APP solution. A mechanical cylinder and two keys are also included with the standard lock-body configuration.
What should be checked before installing the lock?
Confirm that the door is suitable for the No. 3 reverse-mount lock body and its 26 × 203 mm side bar. Buyers should also verify the door cutout, handing, lock-body orientation, cylinder position, and panel clearance before ordering.
Is OEM branding available, and what is the MOQ?
OEM enquiries for the 2039Password can include private labels, finish requirements, branded packaging, and project-specific configurations. Minimum order quantities depend on the requested customization and should be confirmed with sales.
What information is required for a quotation?
Provide the order quantity, destination country, door type, door handing, preferred color or finish, and packaging requirements. Include any required TTLock, mainboard, branding, or lock-body details so the sales team can confirm compatibility and prepare a quote.
