RX-2067-L RFID Aluminum Security Door Smart Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The RX-2067-L is an RFID security door smart lock designed for distributors, access-control projects, and commercial door installations requiring card-based entry. Its elongated aluminum alloy panel measures 375 × 75 × 22 mm and is supplied in a powder-coated black finish.
This RFID version is configured with a Security 6068 lock body as standard. Buyers should confirm door preparation, handing, thickness, and installation compatibility with the sales team before ordering.
Key Features
- RFID unlocking configuration
- Designed for security door applications
- Aluminum alloy front and rear panel construction
- Powder-coated black surface finish
- Long-panel format measuring 375 × 75 × 22 mm
- Security 6068 lock body supplied as standard
- 3.1 kg packaged unit weight
- Eight lock sets packed per export carton
- Suitable for distributor, project, and OEM/ODM enquiries
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Parameter | Specification |
| Panel Length | 375 mm |
| Panel Width | 75 mm |
| Panel Height | 22 mm |
| Overall Listed Dimensions | 375 × 75 × 22 mm |

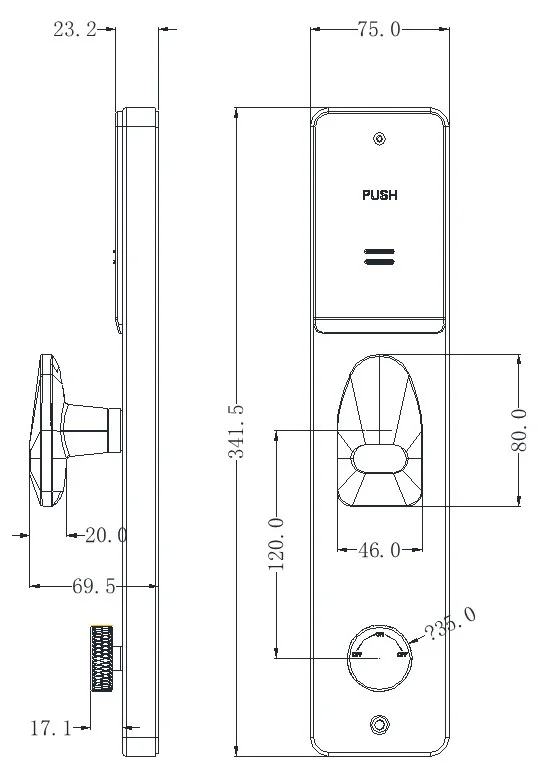

Dimension Drawing
Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.1 kg
- Unit package size: 41.5 × 22.5 × 16 cm
- Export carton size: 57.5 × 41.5 × 43 cm
- Quantity per carton: 8 sets

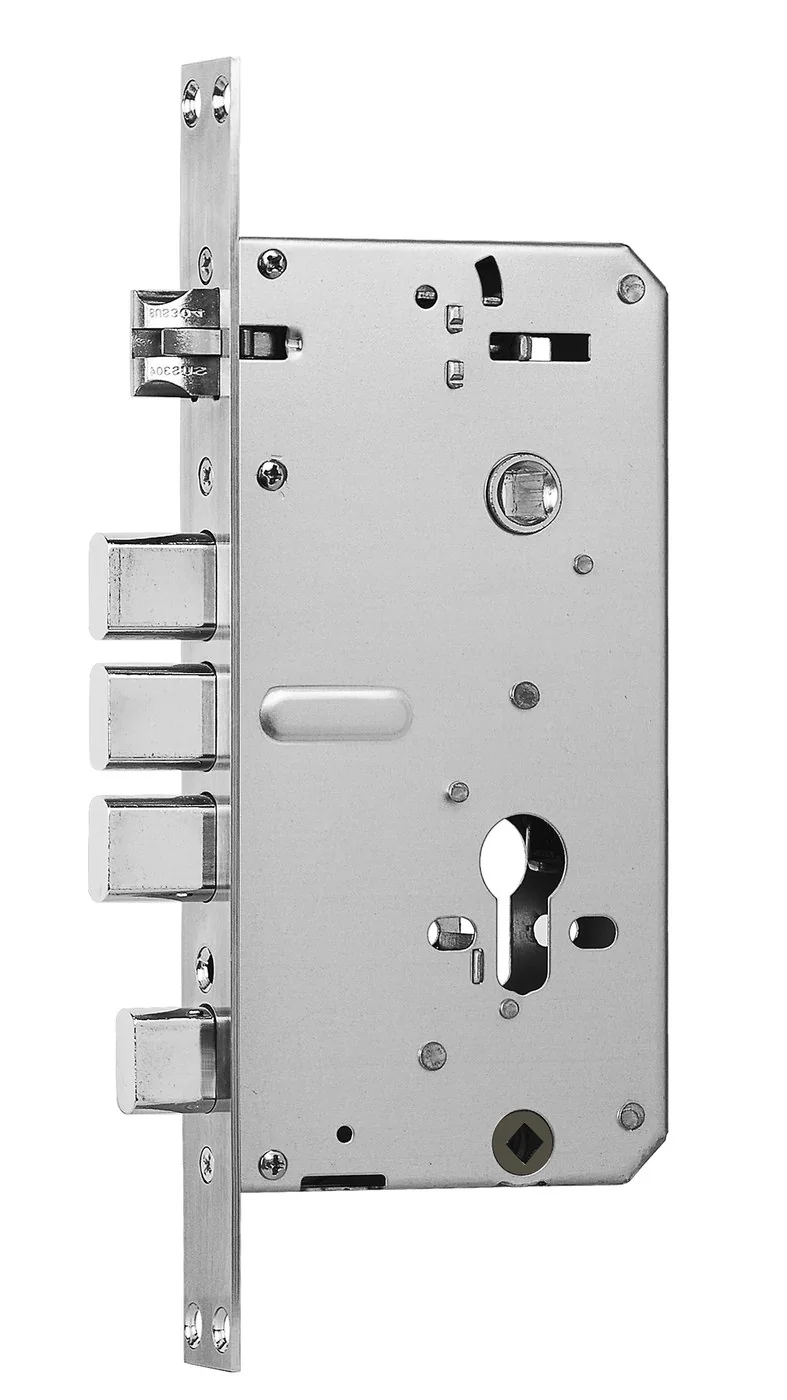

Standard Lock Body
The RX-2067-L is supplied with a Security 6068 lock body as its standard configuration. Before bulk ordering, provide the existing mortise dimensions, door opening direction, door material, and installation drawings so compatibility can be checked.
OEM / ODM
For OEM or ODM projects, contact the sales team to confirm available private-label branding, finish, packaging, electronic board, and system configuration options. Include the required door type, lock quantity, destination market, and project schedule when requesting a quotation.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | RX-2067-L |
| Product Category | Security Door Smart Lock |
| Version | RFID Version |
| Unlock Method | RFID |
| Main Material | Aluminum Alloy |
| Color | Powder-Coated Black |
| Panel Dimensions | 375 × 75 × 22 mm |
| Standard Lock Body | Security 6068 |
| Unit Weight | 3.1 kg |
| Unit Package Size | 41.5 × 22.5 × 16 cm |
| Carton Size | 57.5 × 41.5 × 43 cm |
| Carton Quantity | 8 sets |
FAQs
What type of door is the RX-2067-L designed for?
The RX-2067-L is designed as a security door smart lock for project and commercial access applications. Door material, preparation, thickness, and opening direction should be submitted to the sales team for compatibility confirmation.
What unlocking method does this model support?
This version supports RFID unlocking. No additional unlocking methods, APP platform, or connectivity functions are specified in the datasheet, so any required system configuration should be confirmed before ordering.
Is the lock compatible with a Security 6068 door preparation?
A Security 6068 lock body is included as the standard configuration. Buyers should still provide mortise drawings or measurements because door preparation and installation conditions can vary between projects.
Can the RX-2067-L be supplied for OEM or private-label orders?
OEM and ODM requirements can be discussed for the RX-2067-L. Branding, finish, packaging, electronic configuration, and minimum order requirements must be confirmed with the sales team based on the project.
What information is needed to request a quotation?
Provide the required quantity, destination country, door type, door opening direction, installation dimensions, and branding or packaging requirements. Project drawings or photos of the existing door and mortise will help the sales team assess compatibility and prepare an accurate quotation.
