RX2067 TTLock App Fingerprint Keypad Lock with Voice
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The RX2067 is a TTLock fingerprint keypad lock developed for distributors, door projects, and OEM/ODM supply programs requiring app-based access management and a full-length aluminum alloy panel. This gunmetal model combines fingerprint and keypad unlocking with a voice-enabled 8534 control board.
Its 375 × 75 mm panel is supplied with a Security 6068 lock body as the standard configuration. Door preparation, handing, and mortise compatibility should be confirmed before bulk ordering.
Key Features
- Fingerprint and keypad unlocking configuration
- TTLock App management
- Voice-enabled 8534 control board
- Aluminum alloy front and rear panel construction
- Gunmetal surface finish
- Full-length panel measuring 375 × 75 × 22 mm
- Standard Security 6068 lock body
- Project packaging with eight sets per export carton
- Suitable for distributor, contractor, and OEM/ODM enquiries
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Panel length | 375 mm |
| Panel width | 75 mm |
| Panel height | 22 mm |

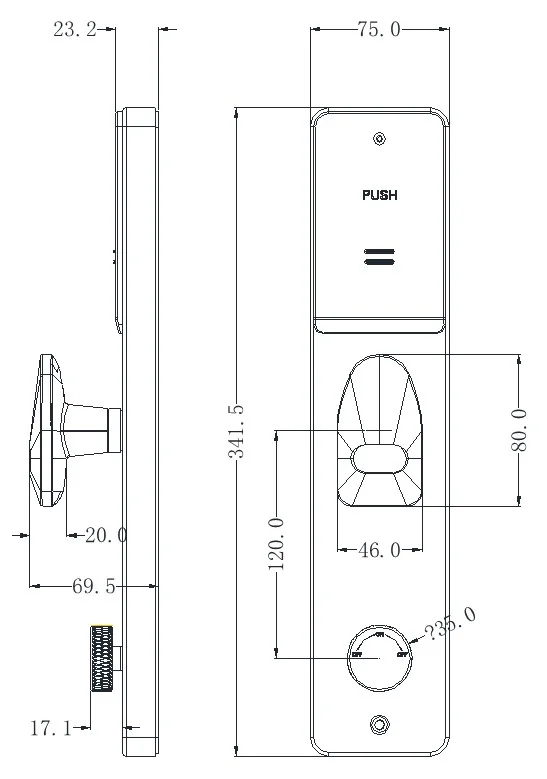

Dimension Drawing

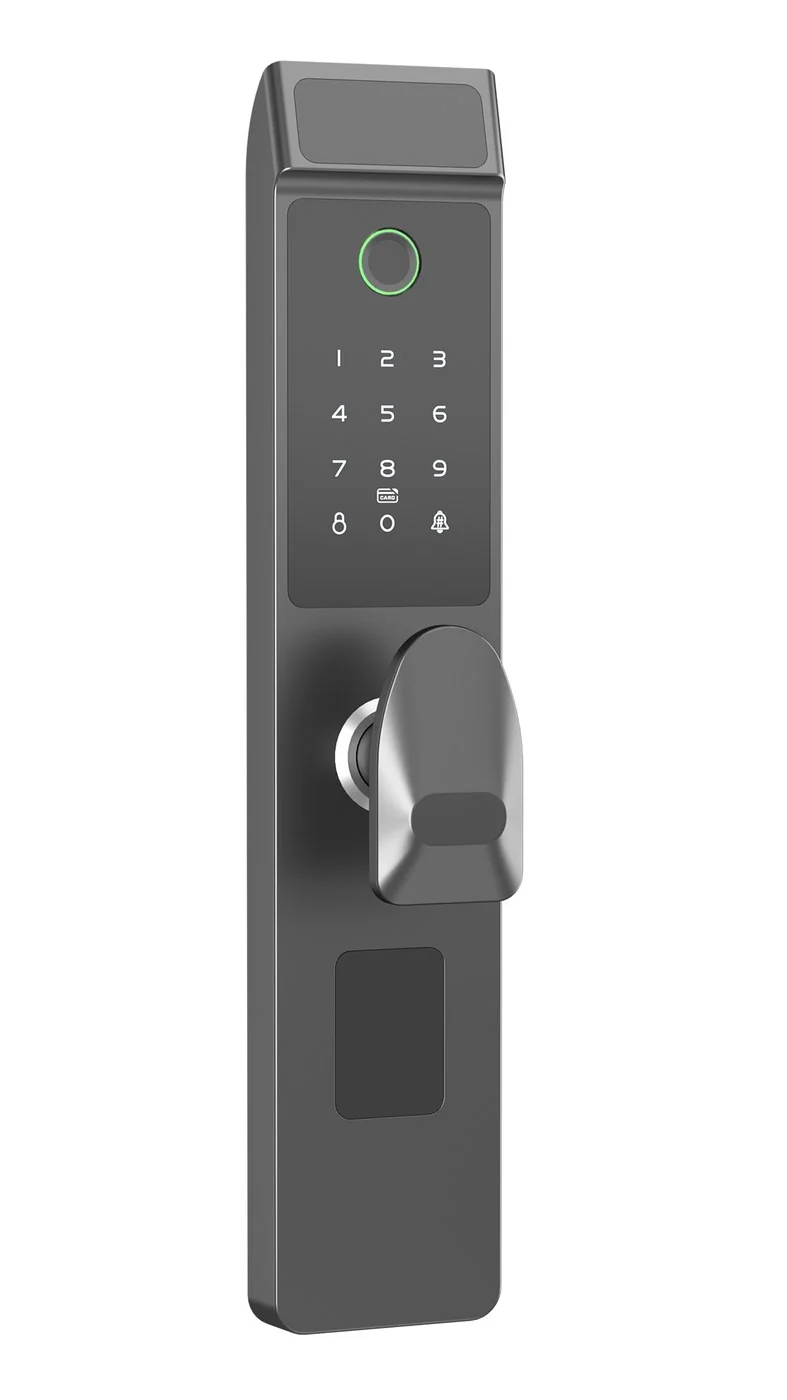

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.45 kg
- Unit package size: 41.5 × 22.5 × 16 cm
- Export carton size: 57.5 × 41.5 × 43 cm
- Quantity per carton: 8 sets

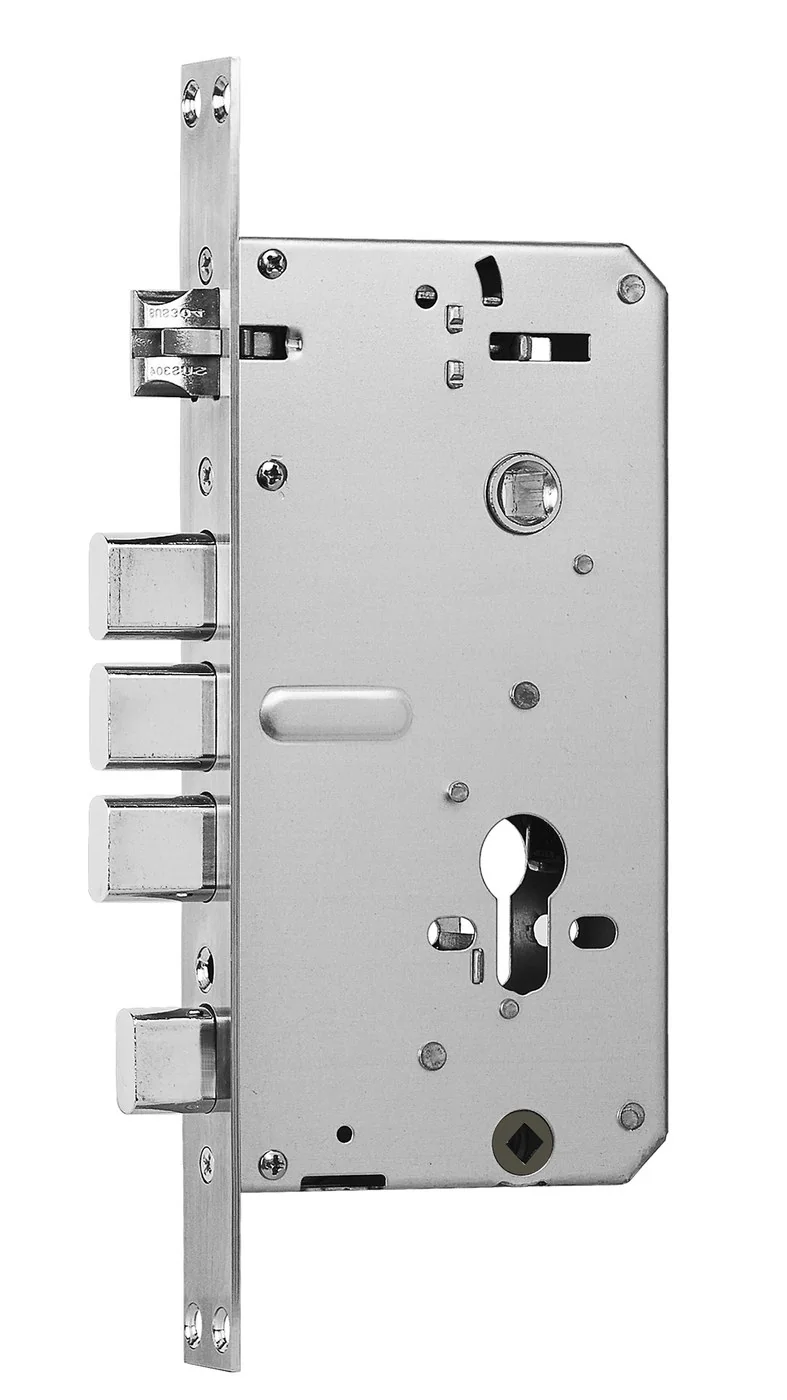

Standard Lock Body
The standard configuration includes a Security 6068 lock body. Buyers should provide the existing mortise drawing, door preparation details, opening direction, and required backset information for compatibility confirmation.
OEM / ODM
OEM and ODM requirements may include private-label branding, finish selection, packaging design, control-board configuration, and APP options. Available customisation should be confirmed with sales according to the order quantity and project requirements.
For an accurate quotation, provide the door type, door preparation or mortise drawing, required quantity, branding requirements, and destination country.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | RX2067 TTLock App |
| Product category | Fingerprint Lock |
| Unlock methods | Fingerprint, keypad |
| APP | TTLock App |
| Control board | 8534 board with voice |
| Material | Aluminum alloy |
| Color | Gunmetal |
| Panel dimensions | 375 × 75 × 22 mm |
| Standard lock body | Security 6068 |
| Unit weight | 3.45 kg |
| Unit package | 41.5 × 22.5 × 16 cm |
| Export carton | 57.5 × 41.5 × 43 cm |
FAQs
What type of door project is the RX2067 designed for?
The RX2067 is intended for door access projects requiring a full-length aluminum alloy fingerprint and keypad lock with TTLock App management. Final suitability depends on the door structure, handing, existing cut-outs, and compatibility with the Security 6068 lock body.
Which unlocking methods are included with this model?
This version supports fingerprint and keypad unlocking. It also uses the TTLock App for access management, while the specific connectivity configuration should be confirmed with sales.
What information is required to confirm installation compatibility?
Provide the door type, opening direction, door preparation drawing, and existing mortise dimensions. The standard lock body is Security 6068, so its dimensions and fixing positions should be checked against the intended door system.
Can this lock be supplied for OEM or ODM orders?
OEM and ODM options for the RX2067 may be discussed according to the project, including branding, finish, packaging, control-board, and APP requirements. Minimum order quantities and available customisation must be confirmed with sales.
How can buyers request a quotation?
Send the required quantity, destination country, door type, lock-body requirements, and any branding or packaging instructions. Including door drawings or mortise specifications will help the sales team verify compatibility before quoting.
