3S01 TTLock Fully Automatic Digital Door Viewer Fingerprint Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The 3S01 is a TTLock fingerprint door lock developed for distributors, entrance-door projects, contractors, and OEM/ODM buyers requiring app-based entry with an integrated digital door viewer. Its fully automatic locking structure combines fingerprint access, TTLock app operation, an aluminum alloy panel, and a Multipoint Mortise Lock Body configuration.
The narrow 69.08 mm panel width supports projects where the available installation area must be reviewed carefully. Buyers should confirm the existing door preparation, opening direction, and mortise dimensions before placing a bulk order.
Key Features
- Fingerprint unlocking for direct keyless entry
- TTLock app operation
- Fully automatic locking mechanism
- Integrated digital door viewer
- Aluminum alloy construction
- Silver gray exterior finish
- Full-length 408 mm lock panel
- 69.08 mm panel width with a 17 mm profile
- Multipoint Mortise Lock Body configuration available for project matching
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Length | 408 mm |
| Width | 69.08 mm |
| Height | 17 mm |

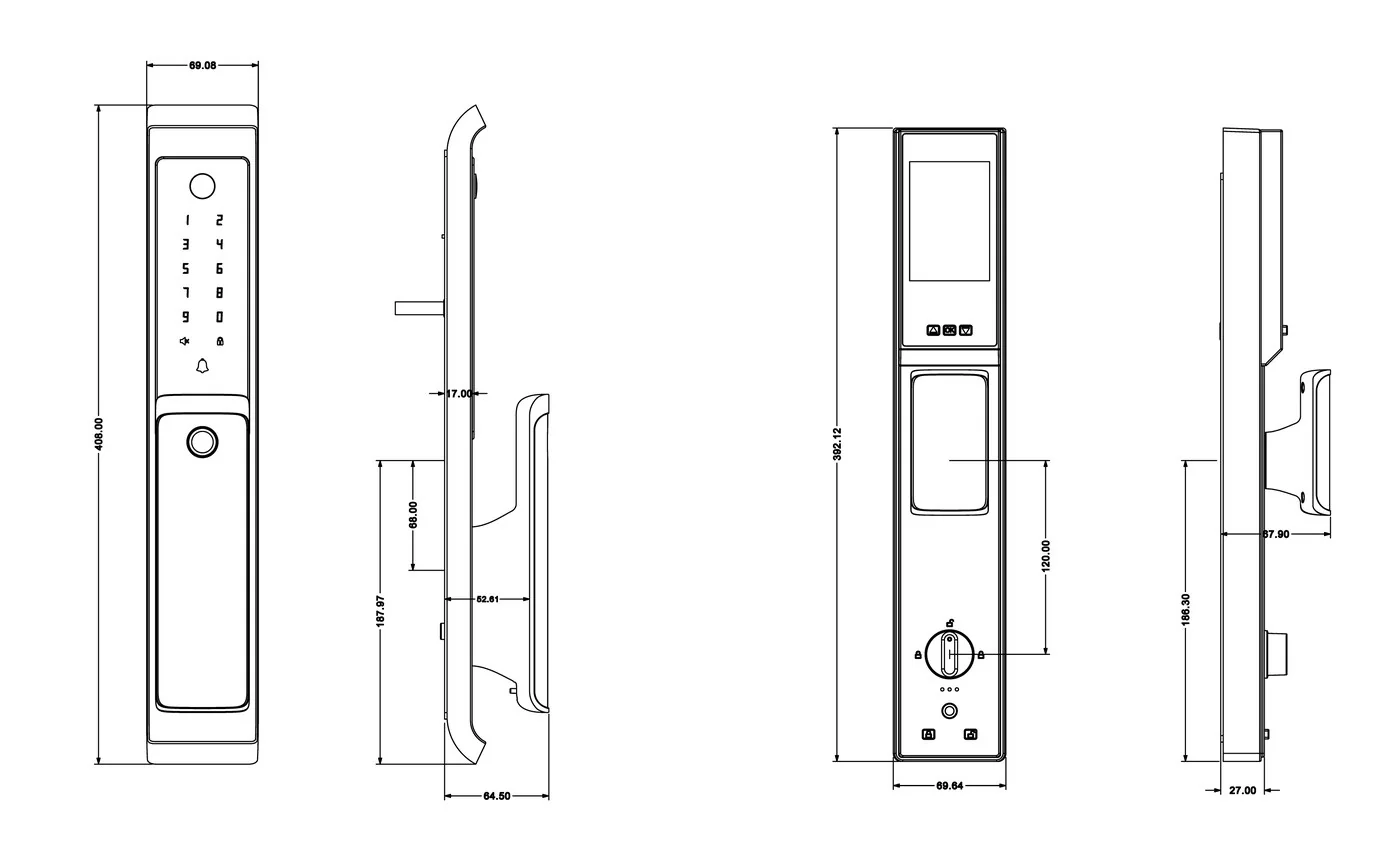

Dimension Drawing
Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 4 kg
- Unit size: 51.5 × 24.5 × 16.5 cm
- Carton size: 59 × 40 × 48 cm
- Quantity per carton: 4 sets

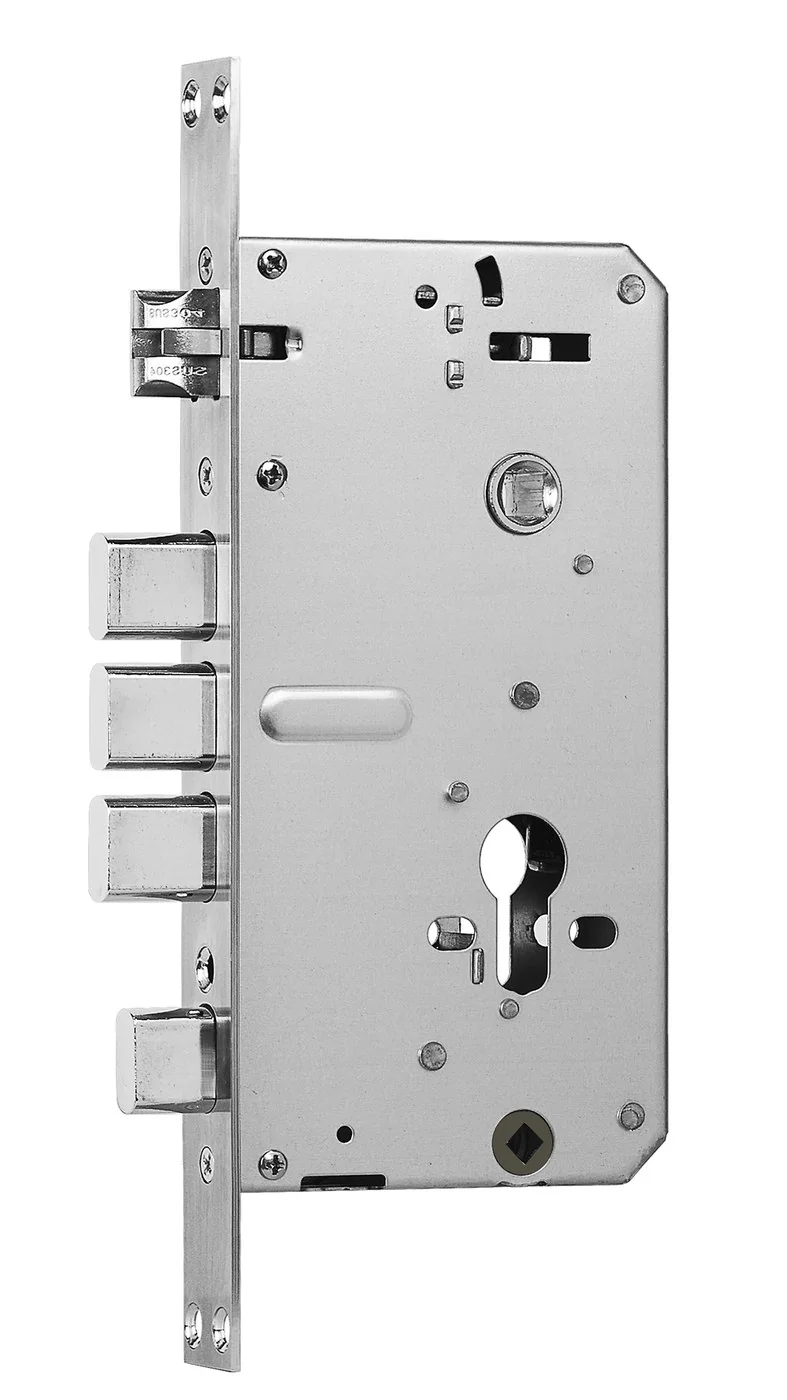

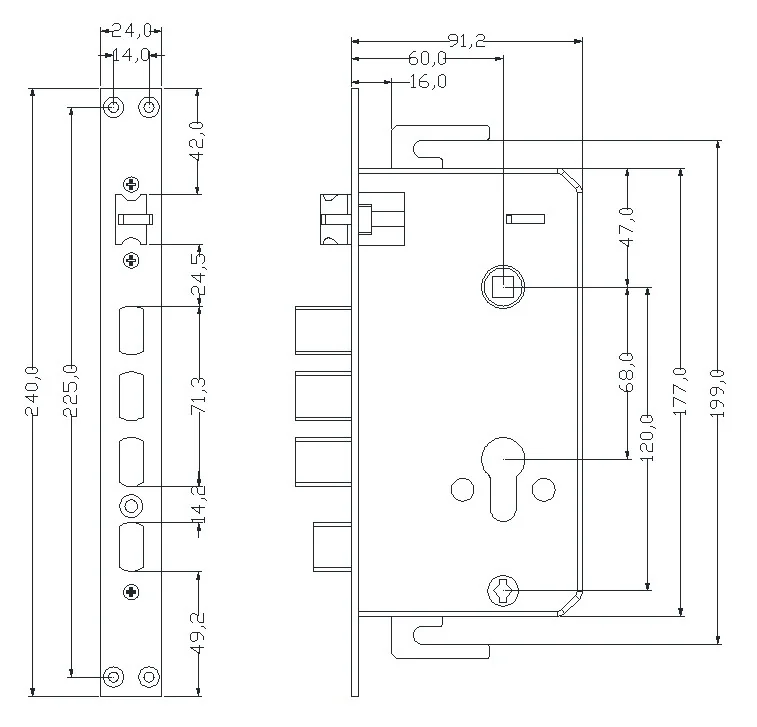

Standard Lock Body
The 3S01 can be configured with a Multipoint Mortise Lock Body. Buyers should provide the existing mortise dimensions, door photographs, and installation drawings so the sales team can confirm compatibility before production.
OEM / ODM
OEM and ODM inquiries for the 3S01 can include private-label branding, finish requirements, customized packaging, and control-board or app configuration requests. All customization options are subject to technical and order-quantity confirmation.
For an accurate quotation, provide the door type, door thickness, opening direction, mortise dimensions, required quantity, destination country, and any branding or packaging requirements.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | 3S01 |
| Product Type | Fully Automatic Digital Door Viewer Fingerprint Lock |
| Primary Unlock Methods | Fingerprint, TTLock app |
| Operation | Fully automatic |
| App Platform | TTLock |
| Material | Aluminum alloy |
| Color | Silver gray |
| Panel Dimensions | 408 × 69.08 × 17 mm |
| Digital Door Viewer | Integrated |
| Lock Body | Multipoint Mortise Lock Body |
| Unit Weight | 4 kg |
| Unit Packaging | 51.5 × 24.5 × 16.5 cm |
FAQs
What types of projects is the 3S01 suitable for?
The 3S01 is intended for door projects requiring fingerprint access, TTLock app operation, fully automatic locking, and an integrated digital door viewer. It is suitable for distributor programs, contractor supply, and customized entrance-door lock projects, subject to door and mortise compatibility.
Which unlocking methods does this model support?
This model supports fingerprint unlocking and TTLock app operation. Additional access methods are not specified in the datasheet and should be confirmed with sales if required.
Can the lock be used with a multipoint door-locking system?
The listed lock-body configuration is a Multipoint Mortise Lock Body. Final compatibility depends on the door preparation, mortise dimensions, spindle position, opening direction, and existing locking points, so technical drawings should be checked before ordering.
Is OEM branding available, and what is the MOQ?
OEM/ODM requests for the 3S01 may cover branding, finish, packaging, and board or app configuration review. The applicable MOQ depends on the customization scope and should be confirmed with the sales team.
What information is required for a quotation?
Provide the required quantity, destination country, door type, door thickness, opening direction, mortise dimensions, and project schedule. Door photographs, installation drawings, branding files, and packaging requirements will help the sales team prepare a more accurate quotation.
