RX2067TTLock Face Recognition Fingerprint Lock with TTLock App
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview

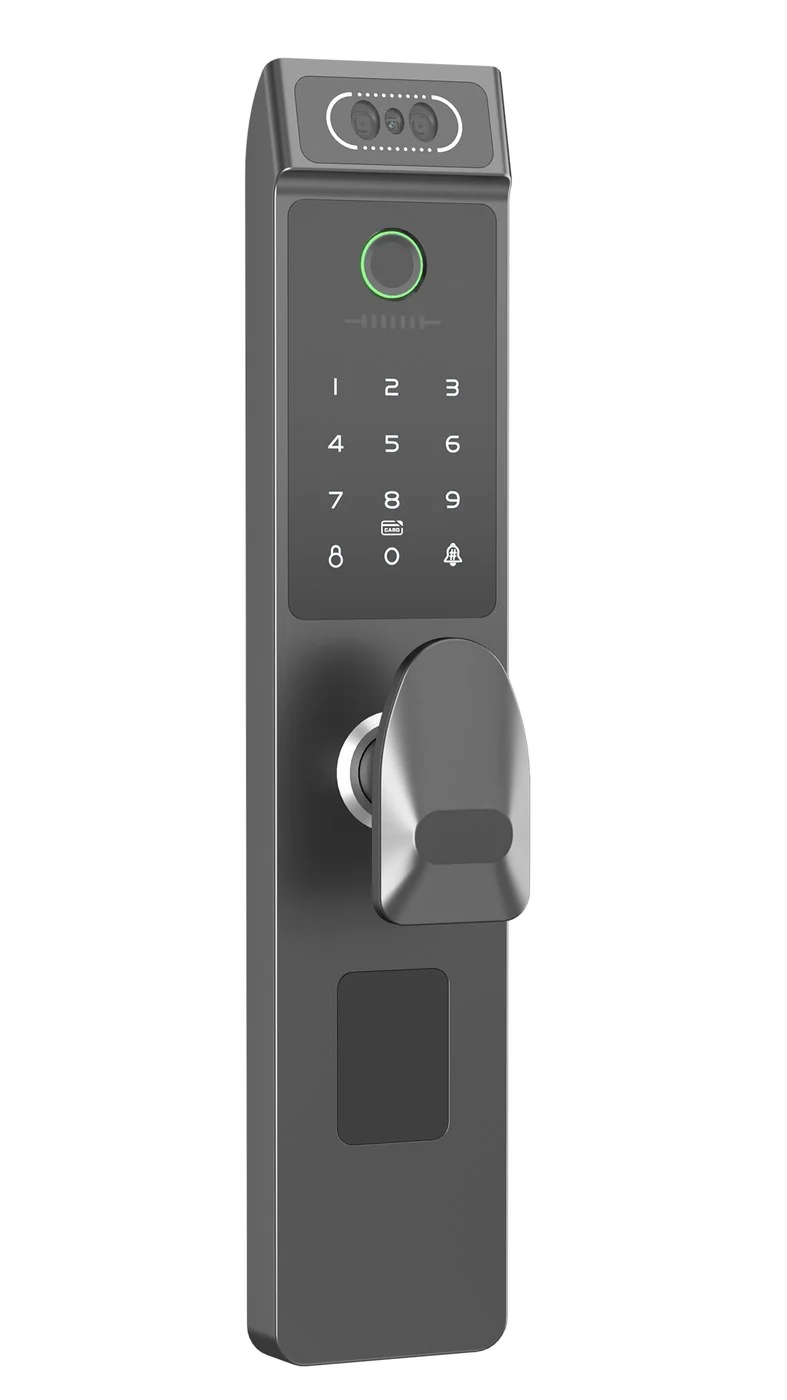

The RX2067TTLock is a TTLock face fingerprint lock developed for distributors, security-door projects, and OEM/ODM programs requiring biometric access with app-based operation. Its 375 mm aluminum alloy panel combines face recognition, fingerprint identification, and TTLock app access in a gunmetal housing.
This face recognition version supports a face enrollment push solution and is supplied with a Security 6068 lock body. Buyers should confirm door preparation, handing, thickness, and project-specific connectivity requirements with sales before ordering.
Key Features
- Face recognition version for biometric door access
- Supports a face enrollment push solution
- Integrated fingerprint unlocking
- TTLock app operation
- Aluminum alloy panel construction
- Gunmetal exterior finish
- Full-size 375 × 75 × 22 mm panel
- Supplied with a Security 6068 lock body
- Export packaging arranged as 8 sets per carton
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Length | 375 mm |
| Width | 75 mm |
| Height | 22 mm |

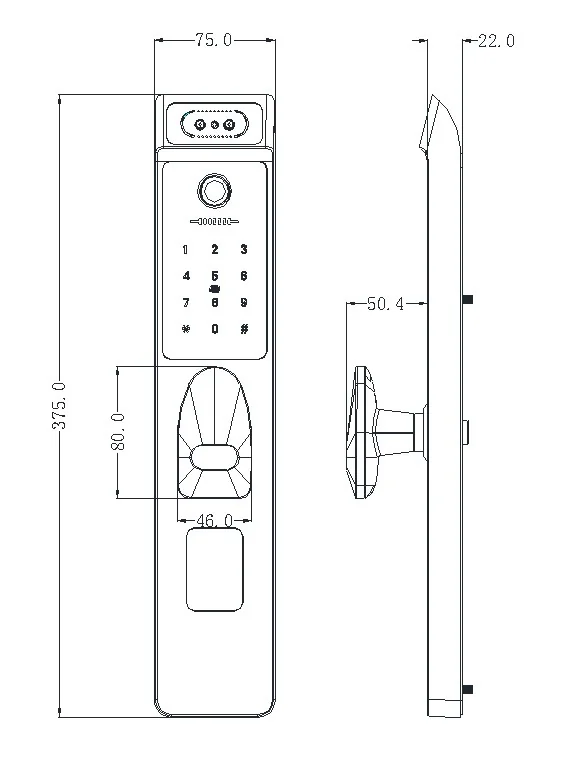

Dimension Drawing
Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.5 kg
- Unit package size: 41.5 × 22.5 × 16 cm
- Carton size: 57.5 × 41.5 × 43 cm
- Quantity per carton: 8 sets

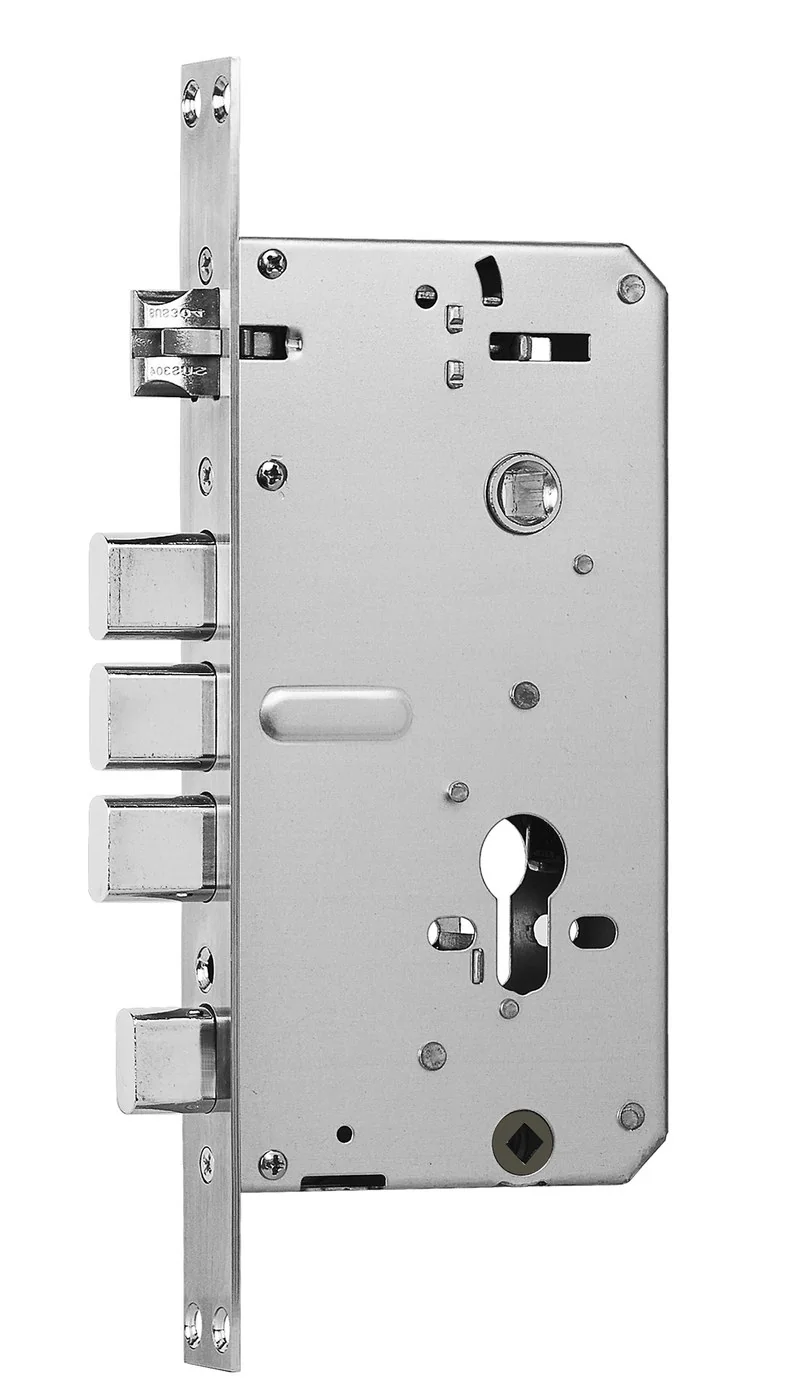

Standard Lock Body
The standard configuration is supplied with a Security 6068 lock body. Door cutout, handing, door thickness, and installation compatibility should be confirmed with sales using the project’s door drawings or existing lock-body measurements.
OEM / ODM
The RX2067TTLock can be evaluated for OEM and ODM supply programs. Availability of private labeling, alternative finishes, customized packaging, and different board or app configurations must be confirmed with sales.
For an accurate quotation, provide the door type, lock-body preparation, required quantity, destination country, preferred branding, and required app configuration.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | RX2067TTLock |
| Product category | Fingerprint Lock |
| Version | Face Recognition Version |
| Unlock methods | Face recognition, fingerprint, TTLock app |
| Face enrollment | Supports face enrollment push solution |
| Material | Aluminum alloy |
| Color | Gunmetal |
| Panel dimensions | 375 × 75 × 22 mm |
| Standard lock body | Security 6068 |
| Unit weight | 3.5 kg |
| Unit package size | 41.5 × 22.5 × 16 cm |
| Carton size | 57.5 × 41.5 × 43 cm |
FAQs
What type of door is the RX2067TTLock designed for?
The RX2067TTLock is intended for full-size door installations using a compatible Security 6068 lock body. Buyers should provide the door type, opening direction, thickness, and existing cutout information so the installation fit can be checked before ordering.
Which unlocking methods does this model support?
This model supports face recognition, fingerprint identification, and operation through the TTLock app. It also supports a face enrollment push solution.
Can it replace any lock that uses a Security 6068 lock body?
Compatibility should not be assumed from the lock-body name alone. The door preparation, panel mounting positions, handing, thickness, and existing mortise dimensions should be checked against the project door before bulk production.
Are OEM branding and customized configurations available?
OEM and ODM requirements can be discussed for distributor and project orders. Private labeling, finish options, packaging, board configuration, app selection, and minimum order requirements must be confirmed with sales.
What information is required to request a quote?
Provide the required quantity, destination country, door type, door thickness, opening direction, lock-body details, and preferred branding or app configuration. Door drawings and photos of the existing lock installation can help confirm compatibility.
