RX2066 TTLock Fingerprint Keypad Lock with Security 6068 Lock Body
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The RX2066 is a full-length TTLock fingerprint lock developed for distributors, security door projects and OEM/ODM buyers requiring fingerprint, keypad and app-based access in one configuration. Its 364.4 mm aluminum alloy panel is supplied in gunmetal and paired with a Security 6068 lock body.
This version uses the TTLock solution with a 503 voice board. It is suitable for domestic and export supply programs, subject to confirmation of the required door preparation and project configuration.
Key Features
- Fingerprint access for keyless user authentication
- Keypad entry for PIN-code access
- TTLock app solution for supported lock management functions
- 503 electronic board with voice prompts
- Aluminum alloy front and rear panel construction
- Gunmetal exterior finish
- Full-size 364.4 × 76.1 × 30.3 mm panel
- Security 6068 lock body supplied as the standard mortise
- Configuration compatible with domestic and export orders
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Length | 364.4 mm |
| Width | 76.1 mm |
| Height | 30.3 mm |

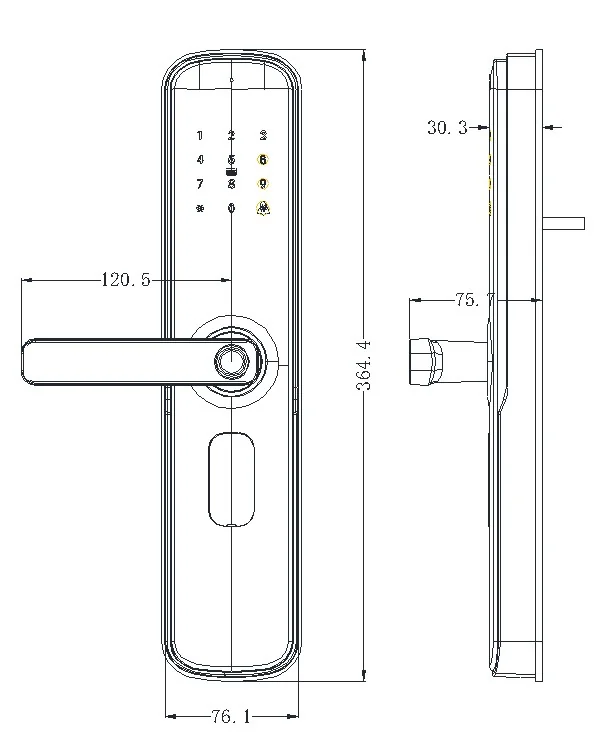

Dimension Drawing

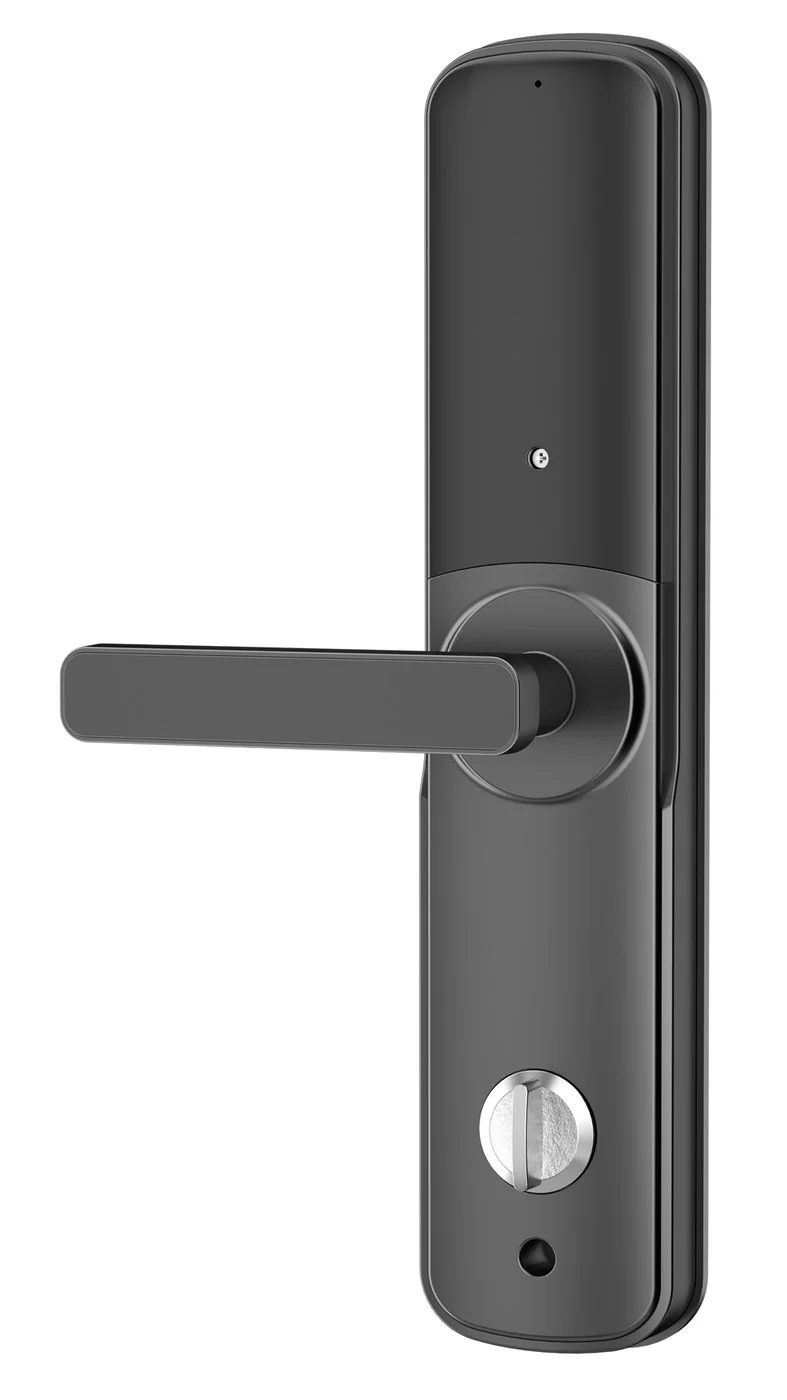

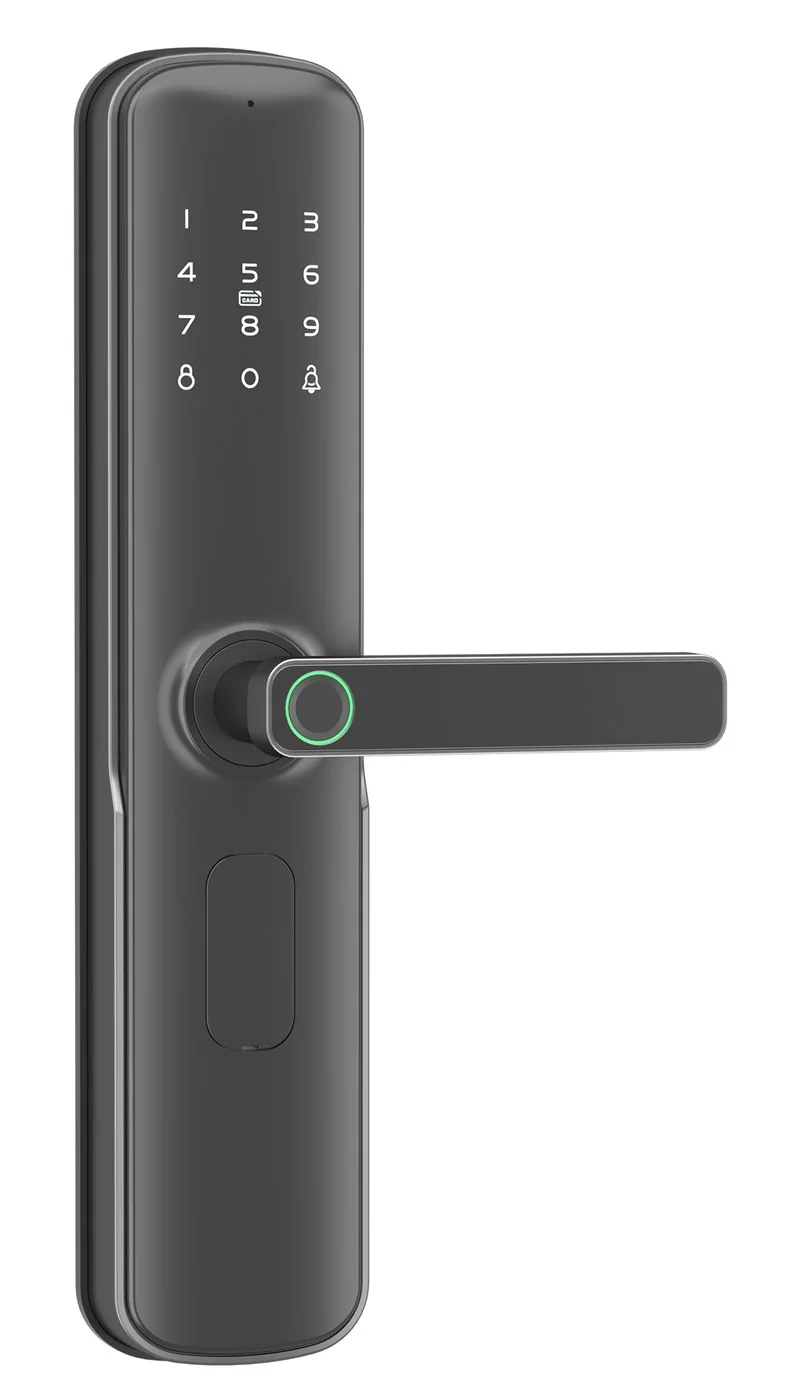

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.5 kg
- Unit package size: 41.5 × 22.5 × 16 cm
- Carton size: 57.5 × 41.5 × 43 cm
- Quantity per carton: 8 sets

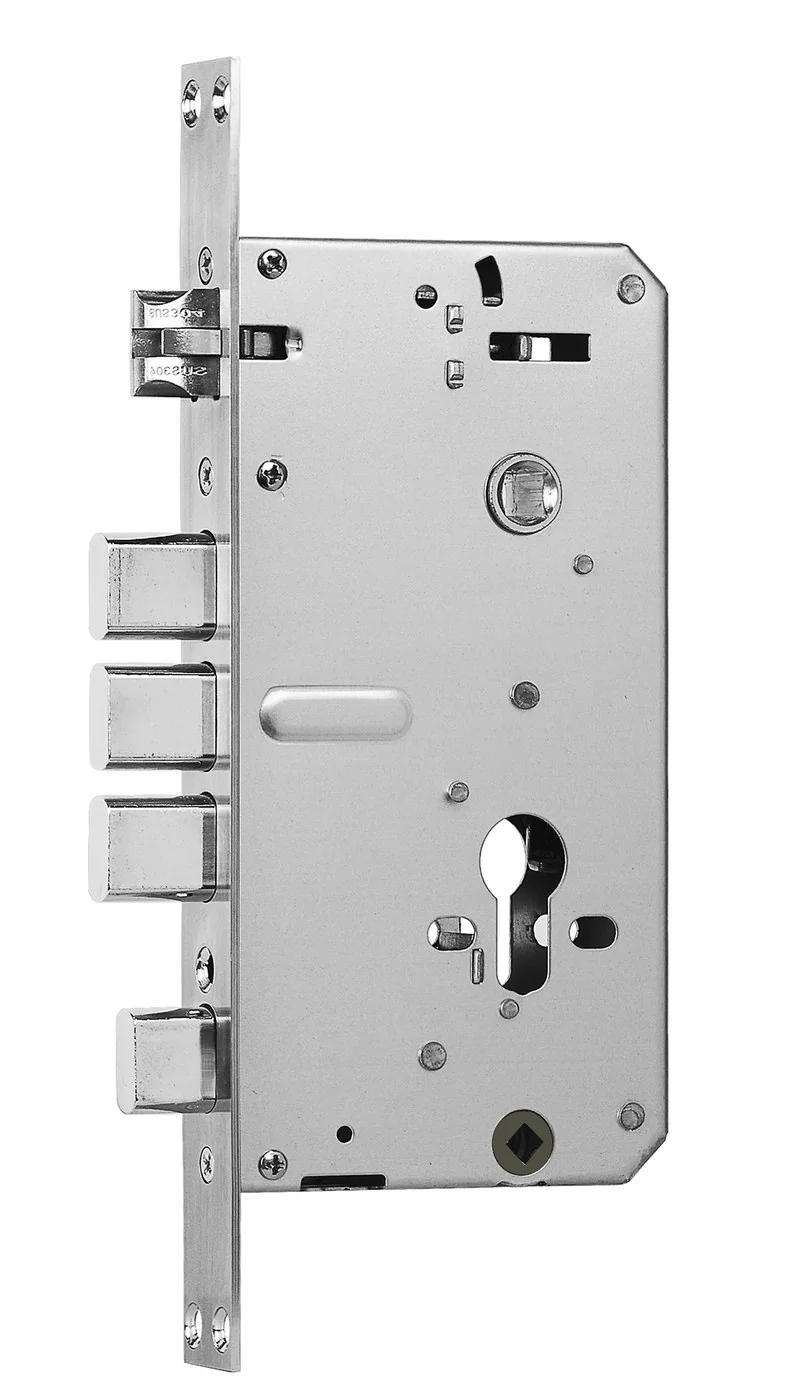

Standard Lock Body
The RX2066 is supplied with a Security 6068 lock body as standard. Buyers should provide the existing door preparation, opening direction, door material and door thickness for compatibility confirmation before ordering.
OEM / ODM
OEM and ODM requirements for private-label branding, exterior finish, packaging, board configuration and TTLock solution should be confirmed with the sales team. Availability may depend on the requested specification and order quantity.
For an accurate quotation, provide the door type, door material, required lock functions, quantity, destination country and any branding or packaging requirements.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | RX2066 |
| Product category | Fingerprint Lock |
| Access methods | Fingerprint, keypad and TTLock app |
| App solution | TTLock |
| Electronic board | 503 board with voice |
| Panel material | Aluminum alloy |
| Color | Gunmetal |
| Panel dimensions | 364.4 × 76.1 × 30.3 mm |
| Standard lock body | Security 6068 |
| Unit weight | 3.5 kg |
| Unit package | 41.5 × 22.5 × 16 cm |
| Carton quantity | 8 sets |
FAQs
What type of door is the RX2066 designed for?
The RX2066 is intended for door systems that can accommodate its full-length panel and Security 6068 lock body. Door material, thickness, handing and existing mortise preparation should be submitted to the supplier for fit confirmation.
Which unlocking methods does this model support?
This version supports fingerprint recognition, keypad entry and the TTLock app solution. The exact app connectivity and gateway requirements should be confirmed according to the intended project configuration.
Can this lock replace an existing 6068 mortise lock?
The standard supplied lock body is Security 6068. However, buyers should compare the existing door cut-out, spindle position, backset and fixing points before treating it as a direct replacement.
Is OEM branding available, and what is the MOQ?
OEM options may include branding, finish, packaging and electronic configuration, subject to sales confirmation. MOQ is not fixed in this datasheet and should be confirmed based on the requested customization.
What information is needed to request a quotation?
Provide the required quantity, destination country, door type, door material, door thickness, opening direction and existing lock-body details. Include any private-label, finish, packaging or TTLock configuration requirements.
