RX2018 Coffee Gold Aluminum Alloy Fingerprint Keypad Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The RX2018 fingerprint keypad lock is designed for distributors, door suppliers, contractors, and OEM partners requiring a tall-panel electronic lock with biometric and PIN-code access. Its aluminum alloy body is supplied in a Coffee Gold finish and configured with a Security 6068 lock body.
With overall dimensions of 410 × 85.5 × 50 mm, this model should be evaluated against the project door preparation and mortise requirements before bulk ordering. It is suitable for B2B product ranges and access-control projects where fingerprint and keypad operation are required without relying on an unspecified mobile application.
Key Features
- Fingerprint recognition for biometric access
- Keypad entry for PIN-code unlocking
- Dual-access Fingerprint & Keypad configuration
- Aluminum alloy lock construction
- Coffee Gold exterior finish
- Tall 410 mm lock profile
- Standard Security 6068 lock body
- Individual set weight of 4 kg
- Export carton configuration of 4 sets per carton
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Length | 410 mm |
| Width | 85.5 mm |
| Height | 50 mm |

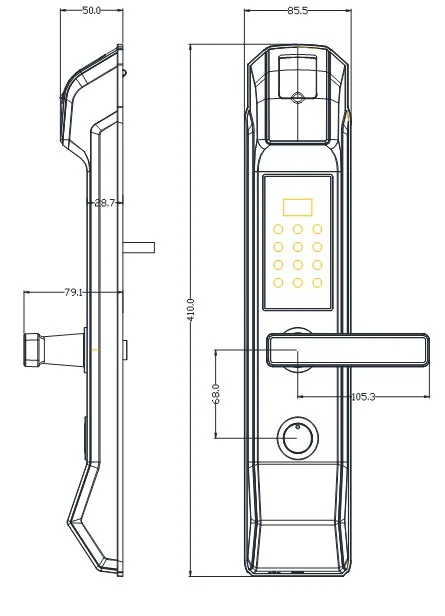

Dimension Drawing
Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 4 kg
- Unit package size: 51.5 × 27 × 18.5 cm
- Export carton size: 59 × 40 × 48 cm
- Quantity per carton: 4 sets

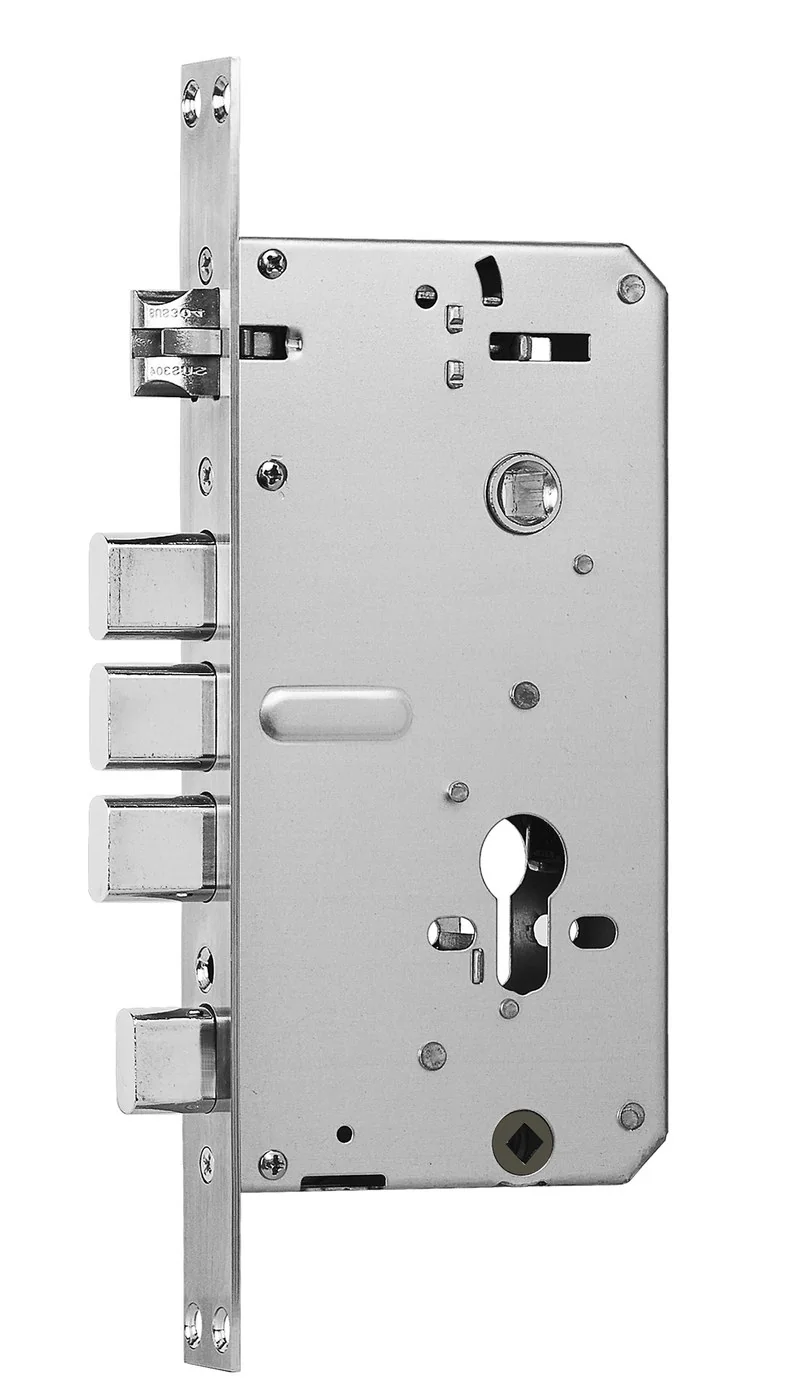

Standard Lock Body
The RX2018 is configured with a Security 6068 lock body. Buyers should confirm the existing door cut-out, backset, center distance, handing, and installation requirements with the sales team before placing a project or replacement order.
OEM / ODM
OEM and ODM requirements should be reviewed according to the project specification and order quantity. Availability of private labeling, alternative finishes, customized packaging, circuit-board configurations, or APP options must be confirmed with sales.
For quotation and compatibility checking, provide the door type, door preparation or drawings, required lock body, order quantity, destination country, and any branding or packaging requirements.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | RX2018 |
| Product category | Fingerprint Lock |
| Version | Fingerprint & Keypad |
| Unlock methods | Fingerprint, Keypad |
| Material | Aluminum Alloy |
| Color | Coffee Gold |
| Overall dimensions | 410 × 85.5 × 50 mm |
| APP / Connectivity | Not specified |
| Standard lock body | Security 6068 |
| Unit weight | 4 kg |
| Unit package size | 51.5 × 27 × 18.5 cm |
| Carton size | 59 × 40 × 48 cm |
FAQs
What door applications are suitable for the RX2018?
The RX2018 is intended for door projects that can accommodate its 410 × 85.5 × 50 mm lock dimensions and Security 6068 lock body. Door material, thickness, cut-out dimensions, and handing should be confirmed with sales before ordering.
Which unlock methods does this model support?
This version supports fingerprint recognition and keypad entry. APP control, card access, mechanical key access, and other methods are not specified in the supplied datasheet and should not be assumed.
Can this lock replace an existing 6068 door lock directly?
The standard lock body is Security 6068, but direct replacement depends on the existing door preparation, spindle position, fixing points, handing, and mortise dimensions. Provide door and lock-body drawings for a technical compatibility check.
Is OEM branding available, and what is the MOQ?
OEM requirements for the RX2018, including logo marking, finish, packaging, and electronic configuration, can be reviewed with the sales team. The applicable MOQ depends on the requested customization and should be confirmed during quotation.
What information is required to request a quote?
Provide the required quantity, destination country, door type, door drawings or installation dimensions, lock-body requirement, and any OEM packaging or branding instructions. This information allows the sales team to check configuration, packing, and project suitability before quoting.
