2017-S10 TTLock Stainless Steel Fingerprint and Keypad Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The 2017-S10 is a TTLock fingerprint lock developed for distributors, door suppliers, security projects and OEM customers requiring biometric access with keypad operation. Its stainless steel panel is available in gunmetal or silver and is configured with the TTLock App, an 8503 voice-enabled board and a Security 6068 lock body.
The 341 mm long panel gives the model a substantial format for compatible door installations. Buyers should confirm the existing door preparation, mortise dimensions and handing requirements before placing a project order.
Key Features
- Fingerprint and keypad unlocking configuration
- TTLock App management platform
- 8503 electronic board with voice function
- Stainless steel front and rear panel construction
- Gunmetal and silver color options
- 341 × 77.5 × 27.5 mm panel dimensions
- Security 6068 standard lock body
- 3.5 kg packaged unit weight
- Export version available; configuration details should be confirmed with sales
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Length | 341 mm |
| Width | 77.5 mm |
| Height | 27.5 mm |
Dimension Drawing
Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.5 kg
- Unit package size: 41.5 × 22.5 × 16 cm
- Carton size: 57.5 × 41.5 × 43 cm
- Quantity per carton: 8 sets

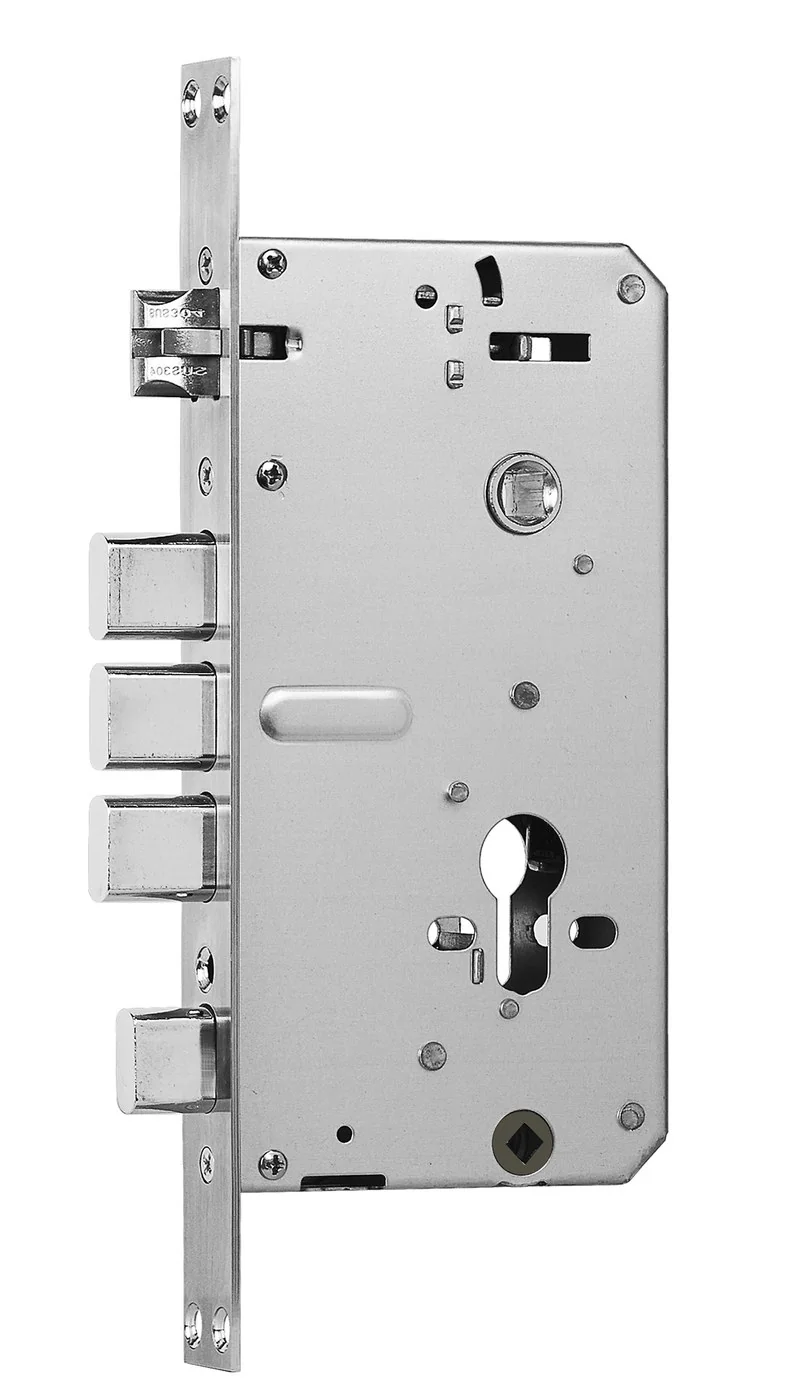

Standard Lock Body
The standard configuration is supplied with a Security 6068 lock body. Door manufacturers and project contractors should confirm the mortise outline, backset, center distance, spindle position and door opening direction before production.
Alternative lock-body matching, where required, should be reviewed with the sales team against the buyer’s door drawings or lock-body sample.
OEM / ODM
OEM and ODM enquiries are accepted for distribution programs, branded door systems and project supply. Private-label branding, gunmetal or silver finish selection, customized packaging, and alternative board or APP requirements can be reviewed according to order requirements; availability must be confirmed with sales.
For an accurate quotation, provide the door type, door preparation drawing, required lock body, color, estimated quantity and destination country.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | 2017-S10 |
| Product category | Fingerprint Lock |
| Main material | Stainless steel |
| Available colors | Gunmetal / Silver |
| Unlock methods | Fingerprint / Keypad |
| APP platform | TTLock App |
| Electronic board | 8503 board with voice |
| Panel dimensions | 341 × 77.5 × 27.5 mm |
| Standard lock body | Security 6068 |
| Unit weight | 3.5 kg |
| Unit package | 41.5 × 22.5 × 16 cm |
| Carton quantity | 8 sets |
FAQs
What door applications are suitable for the 2017-S10?
The 2017-S10 is intended for compatible door systems using a Security 6068 lock body. Final suitability depends on the door material, mortise opening, panel clearance, handing and existing hole positions, so buyers should submit a door drawing before ordering.
Which unlocking methods does this model support?
This version supports fingerprint and keypad unlocking. It is also configured with the TTLock App and an 8503 board with voice function.
Can this lock directly replace an existing 6068 door lock?
The supplied lock body is identified as Security 6068, but direct replacement should not be assumed from the name alone. Confirm the backset, center distance, faceplate, spindle position and mounting-hole layout against the existing door preparation.
Can the lock be supplied with OEM branding, and what is the MOQ?
OEM requirements such as logo branding, finish selection, packaging and board or APP configuration can be reviewed for project orders. MOQ depends on the requested customization and should be confirmed with sales.
What information is required to request a quotation?
Provide the required quantity, destination country, preferred color and project schedule. Include the door type, door thickness, opening direction, lock-body drawing and branding requirements where available so the configuration can be checked before quotation.
