YQ Standalone / TTLock Thermally Broken Aluminum Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The YQ thermally broken aluminum lock is intended for distributors, aluminum door suppliers, contractors, and OEM partners sourcing a slim electronic lock for project doors. It is available in two configurations: a standalone lock and a TTLock App version.
Both plans feature an IP65 waterproof rating and are offered in Gunmetal or Silver. The narrow 28.6 mm panel and Thermally Broken Aluminum 8525 lock body should be checked against the project door profile and mortise preparation before ordering.
Key Features
- Two selectable configurations: Standalone Lock or TTLock App
- IP65 waterproof protection for suitable project environments
- Gunmetal and Silver color options
- Slim 28.6 mm-wide panel for thermally broken aluminum door systems
- Overall panel dimensions of 315.6 × 28.6 × 22.8 mm
- Standard Thermally Broken Aluminum 8525 lock body
- Individual set weight of 2.1 kg
- Project packaging with 10 sets per export carton
- Suitable for distributor, contractor, OEM, and bulk project enquiries
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Lock panel | 315.6 mm |
Dimension Drawing
Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 2.1 kg
- Unit package size: 39 × 20 × 15.5 cm
- Export carton size: 72 × 41 × 37.5 cm
- Quantity per carton: 10 sets

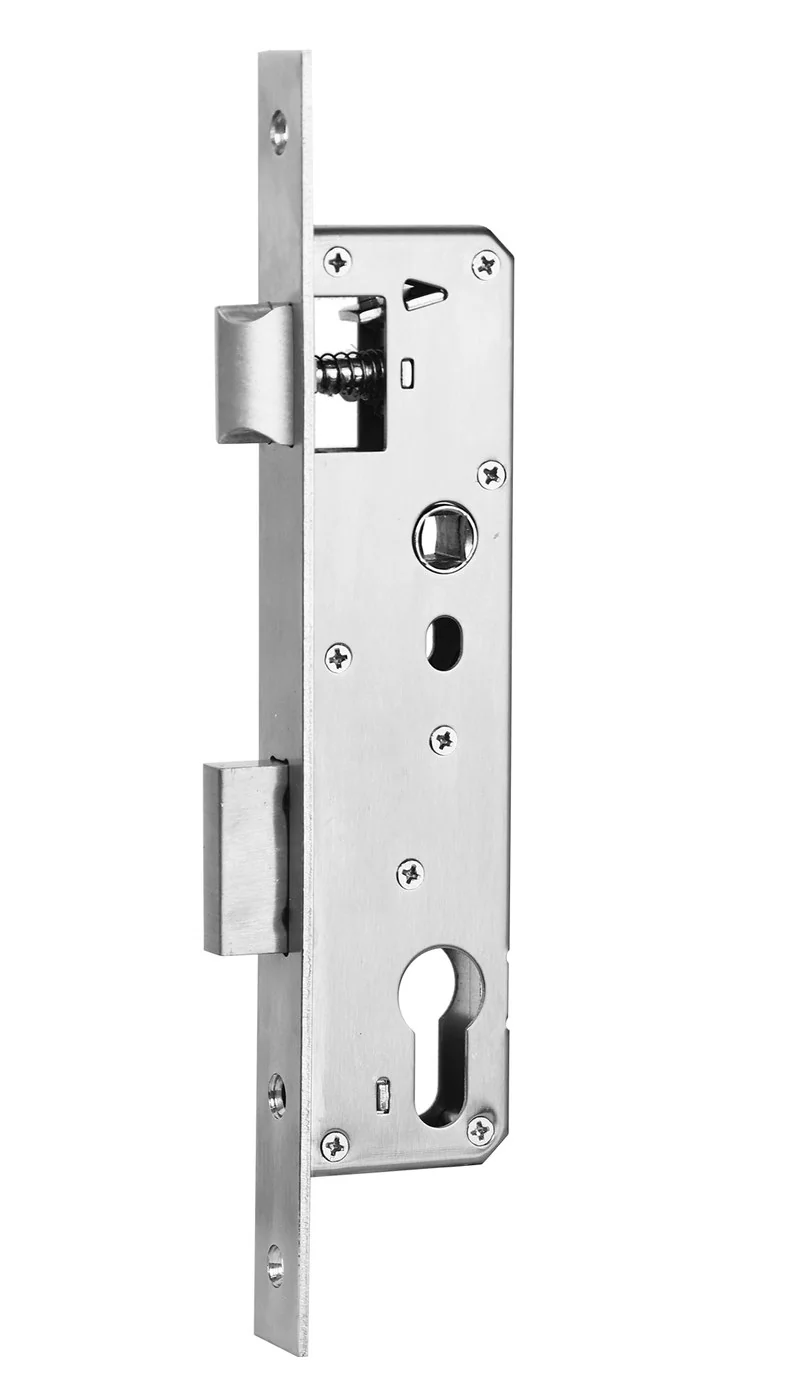

Standard Lock Body
The listed standard configuration uses a Thermally Broken Aluminum 8525 lock body. Buyers should provide the door profile, existing mortise dimensions, opening direction, and installation drawings for compatibility confirmation.
OEM / ODM
For OEM or ODM enquiries, submit the required private-label branding, finish, packaging, and control-board or APP configuration for feasibility confirmation. Gunmetal and Silver are the standard listed colors, while other requirements should be confirmed with sales.
For an accurate quotation, specify the preferred Standalone or TTLock App plan, door type and profile, required quantity, destination country, and lock-body requirements.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | YQ |
| Product category | Thermally Broken Aluminum Lock |
| Available plans | Standalone Lock / TTLock App |
| APP option | TTLock App |
| Protection rating | IP65 waterproof |
| Standard colors | Gunmetal / Silver |
| Panel dimensions | 315.6 × 28.6 × 22.8 mm |
| Standard lock body | Thermally Broken Aluminum 8525 |
| Unit weight | 2.1 kg |
| Unit package size | 39 × 20 × 15.5 cm |
| Carton size | 72 × 41 × 37.5 cm |
| Carton quantity | 10 sets |
FAQs
What type of door is the YQ lock designed for?
The YQ thermally broken aluminum lock is intended for thermally broken aluminum door applications. Compatibility depends on the door profile, mortise preparation, opening direction, and available installation clearance, so project drawings should be checked before ordering.
What control options are available for this model?
The model is offered as either a Standalone Lock or a TTLock App version. The datasheet does not specify additional credential methods, so confirm the exact unlocking functions required for your selected plan with sales.
Does the 8525 lock body fit every thermally broken aluminum door?
No universal fit should be assumed. Buyers should compare the Thermally Broken Aluminum 8525 lock body with the door profile, existing cut-out, lock-body position, and installation dimensions.
Can the YQ model be supplied for OEM projects, and what is the MOQ?
OEM and ODM requirements for the YQ model can be reviewed according to the project specification. The MOQ is not stated in the datasheet and should be confirmed based on the selected plan, color, branding, packaging, and order requirements.
What information is needed to request a quotation?
Provide the preferred Standalone or TTLock App plan, Gunmetal or Silver color, door type, door-profile drawing, opening direction, quantity, and destination country. Photos of the existing door preparation or lock body can help the sales team check compatibility.
