TY Dual-Side Fingerprint Thermally Broken Aluminum Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The TY fingerprint thermally broken aluminum lock is designed for courtyard entrances and thermally broken aluminum door projects requiring fingerprint access from both sides. Its narrow 38 mm panel width, IP65 waterproof rating and antique bronze ORB finish make it suitable for door systems where profile dimensions, exterior exposure and architectural appearance must be evaluated together.
Two configurations are available: a standalone lock for local access management and a TTLock app version for projects requiring an app-based platform. Both versions use dual-side fingerprint recognition and are supplied with a Thermally Broken Aluminum 8535 lock body.
Key Features
- Dual-side fingerprint recognition for access from both sides of the door
- Available in standalone and TTLock app configurations
- IP65 waterproof rating for exposed entrance applications
- Antique bronze appearance with ORB electroplated finish
- Slim 38 mm-wide panel for compatible aluminum door profiles
- 410 × 38 × 23 mm lock panel dimensions
- Thermally Broken Aluminum 8535 standard lock body
- 3.8 kg unit weight for project planning and freight calculation
- Packed four sets per export carton
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Length | 410 mm |
| Width | 38 mm |
| Height | 23 mm |

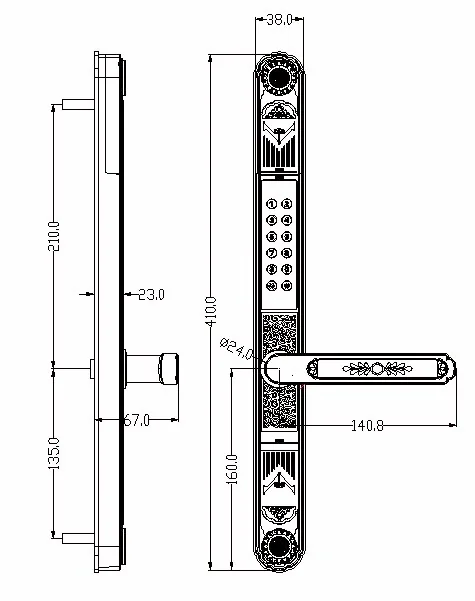

Dimension Drawing

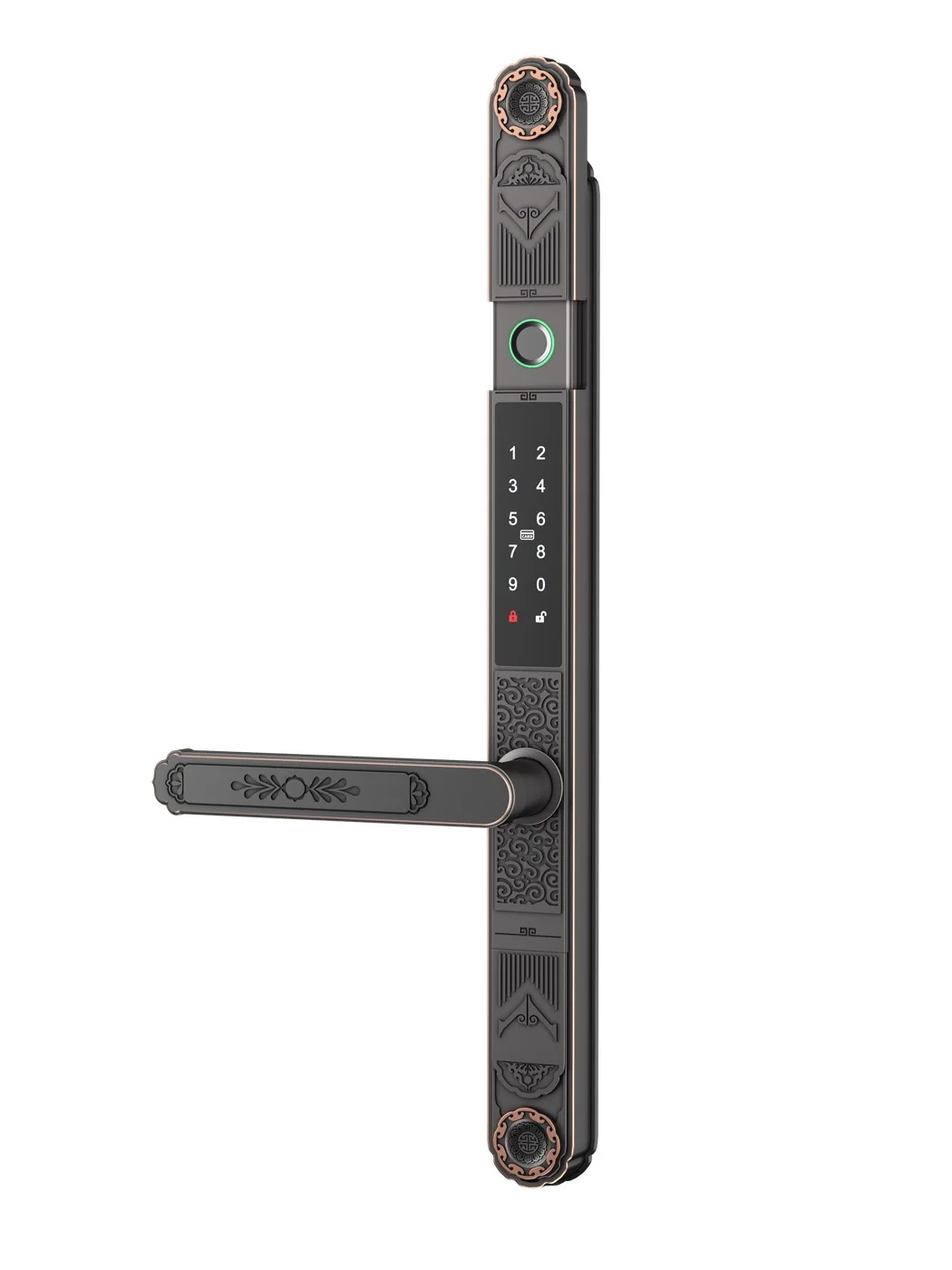

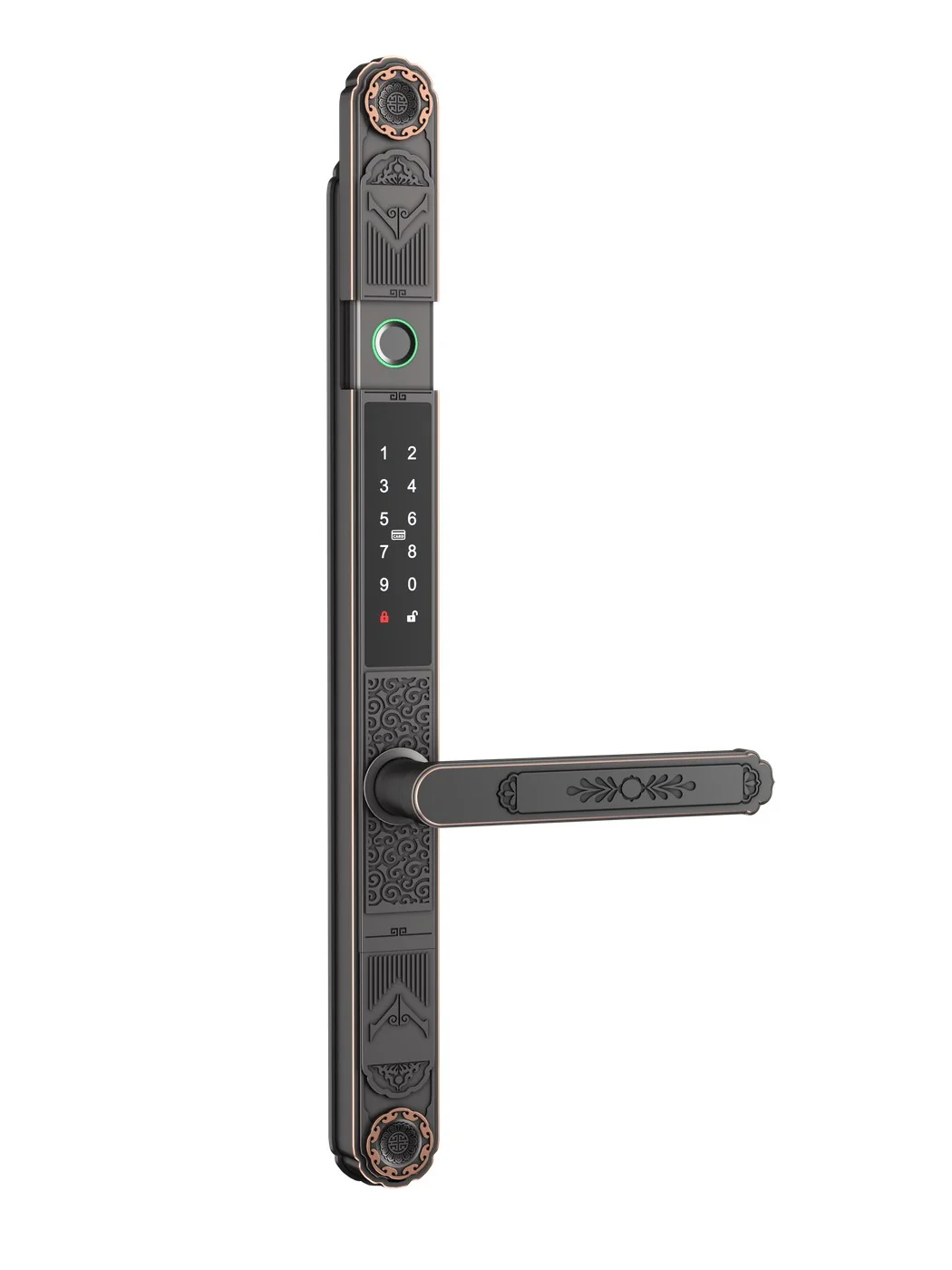

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.8 kg
- Unit package size: 39 × 20 × 15.5 cm
- Carton size: 59 × 40 × 48 cm
- Quantity per carton: 4 sets

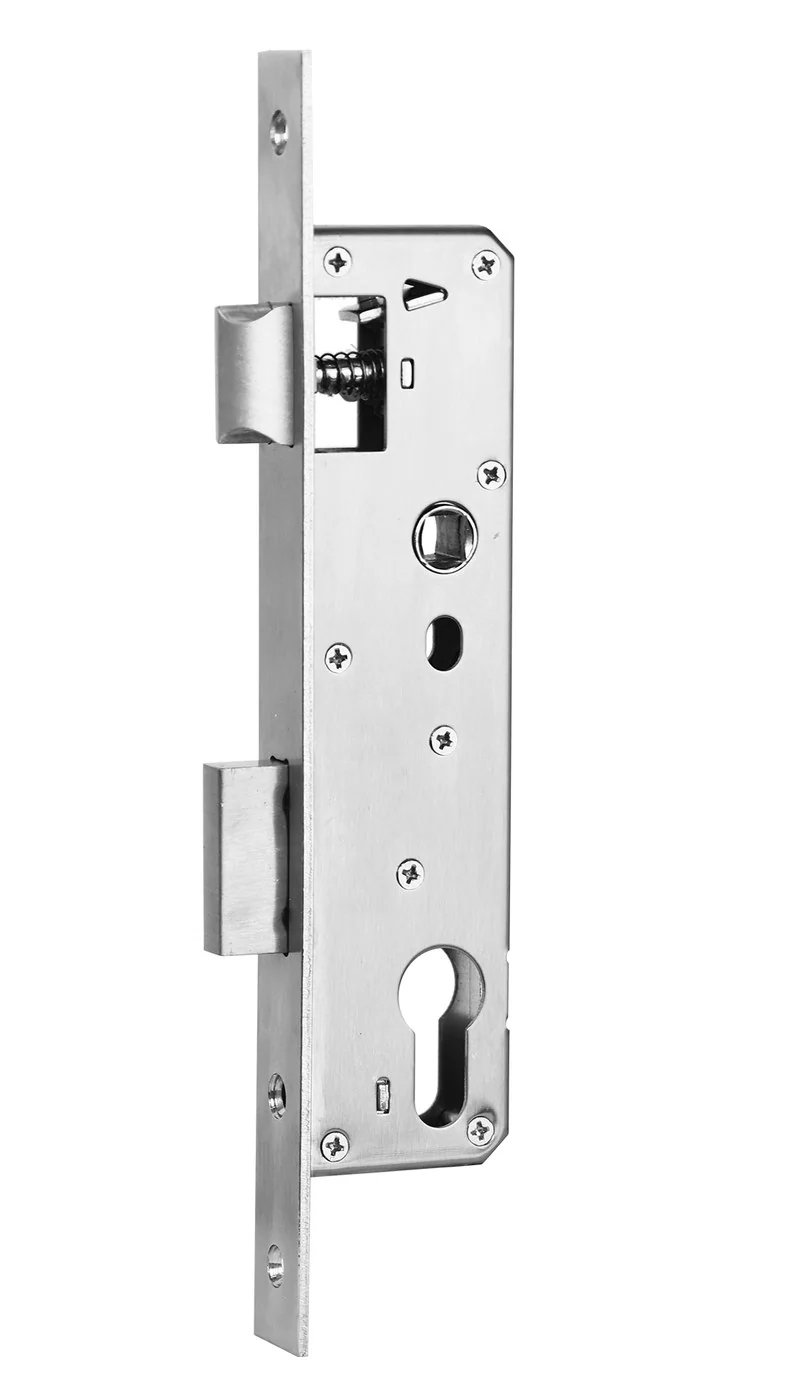

Standard Lock Body
The standard configuration includes a Thermally Broken Aluminum 8535 lock body. Buyers should provide the door profile, existing cutout or lock-body drawing so compatibility can be confirmed before production.
OEM / ODM
The TY lock can be supplied as either a standalone configuration or a TTLock app configuration. Requirements involving private branding, finish selection, packaging design or control-board configuration should be confirmed with the sales team before quotation.
For an OEM or project quotation, provide the door type, door profile or drawing, required configuration, order quantity and destination country. This information allows the supplier to verify lock-body compatibility, packaging requirements and the appropriate product version.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | TY |
| Product category | Thermally Broken Aluminum Lock |
| Intended application | Courtyard and compatible thermally broken aluminum doors |
| Access method | Dual-side fingerprint |
| Available versions | Standalone lock / TTLock app |
| Protection rating | IP65 |
| Color | Antique Bronze |
| Surface finish | ORB electroplated |
| Panel dimensions | 410 × 38 × 23 mm |
| Standard lock body | Thermally Broken Aluminum 8535 |
| Unit weight | 3.8 kg |
| Unit package size | 39 × 20 × 15.5 cm |
FAQs
What door applications is this lock designed for?
The TY Dual-Side Fingerprint Thermally Broken Aluminum Lock is intended for courtyard entrances and compatible thermally broken aluminum door systems. Because aluminum door profiles and cutouts vary, buyers should submit a door drawing or profile dimensions for compatibility checking.
What unlock methods are available on this model?
The specified access method is dual-side fingerprint recognition. The product is available as either a standalone lock or a TTLock app version; confirm the required TTLock functions with sales before ordering.
How can I confirm whether the 8535 lock body fits my door?
Provide the aluminum door profile, existing cutout dimensions and lock-body drawing where available. The supplied Thermally Broken Aluminum 8535 lock body should be checked against the actual door system before sample or bulk production.
Is OEM branding available, and what is the MOQ?
OEM and ODM requirements for the TY model can be discussed for branding, finish, packaging and configuration. The datasheet does not specify an MOQ, so the applicable quantity should be confirmed with sales based on the requested customization.
What information is required for a quotation?
Send the required version, door type, door profile or drawing, quantity and destination country. Also state whether you need the standalone configuration or the TTLock app configuration so the correct quotation can be prepared.
