DY IP65 Thermally Broken Aluminum Lock – Standalone / TTLock App
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The DY thermally broken aluminum lock is configured for thermally broken aluminum door projects requiring a narrow 38 mm panel and an 8535 lock body. It is available as either a standalone lock or a TTLock App version, allowing distributors and project buyers to select the operating platform that matches the installation.
Its 410 mm panel, antique bronze appearance and ORB electroplated finish make this model suitable for projects requiring a long, narrow lock profile. The IP65 waterproof rating supports installations where increased protection against water and dust exposure is required.
Key Features
- DY model for thermally broken aluminum door applications
- Two available configurations: standalone lock or TTLock App
- IP65 waterproof protection
- Antique bronze color
- ORB electroplated surface finish
- Narrow 38 mm panel width
- 410 × 38 × 23 mm panel dimensions
- Thermally Broken Aluminum 8535 standard lock body
- Project packaging with four sets per export carton
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Length | 410 mm |
| Width | 38 mm |
| Height | 23 mm |

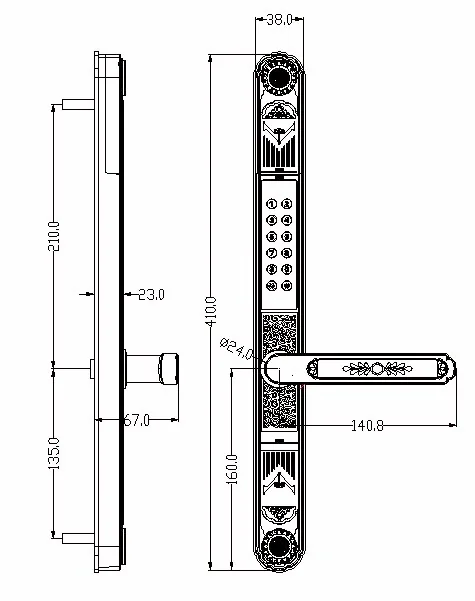

Dimension Drawing

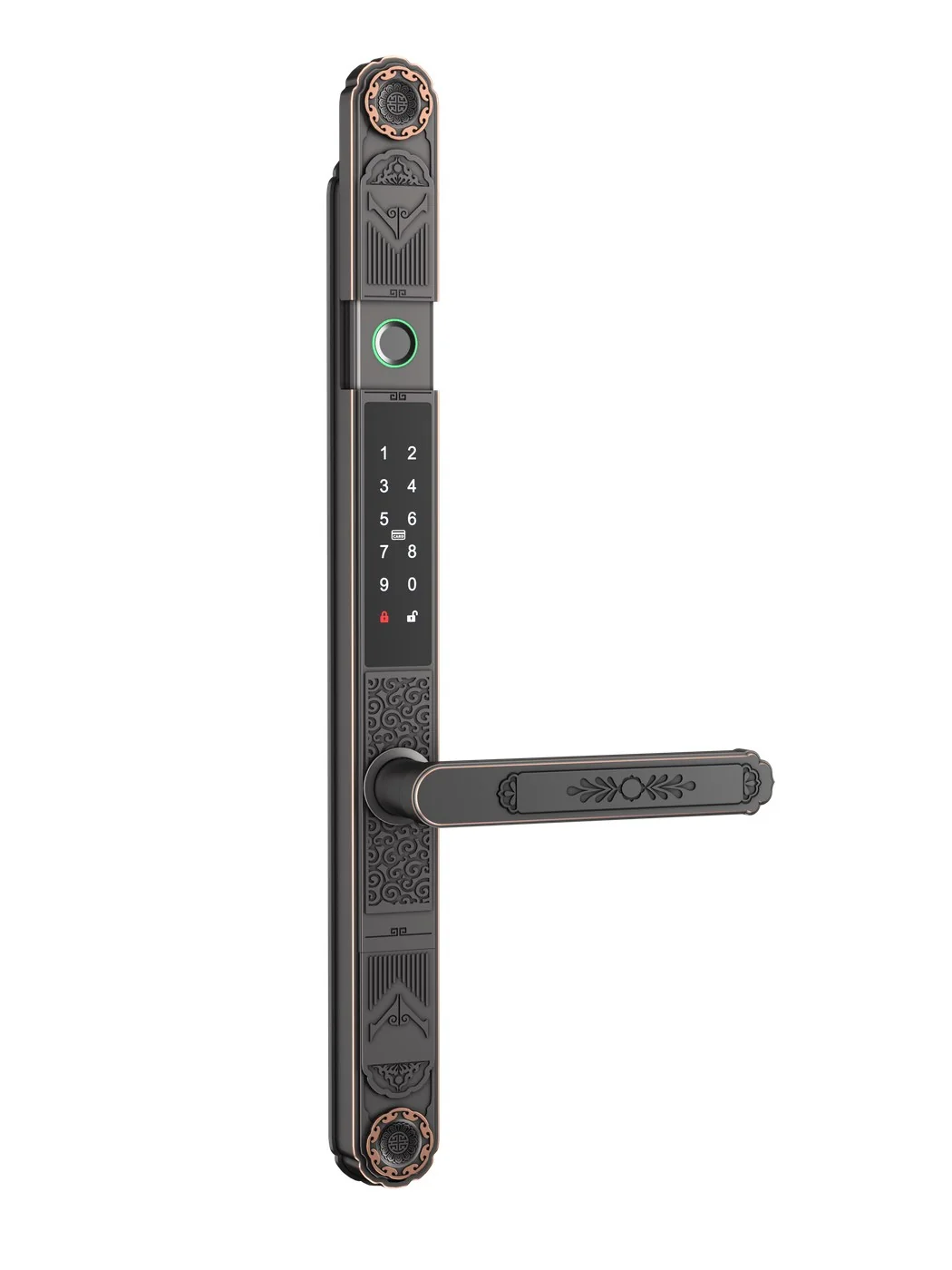

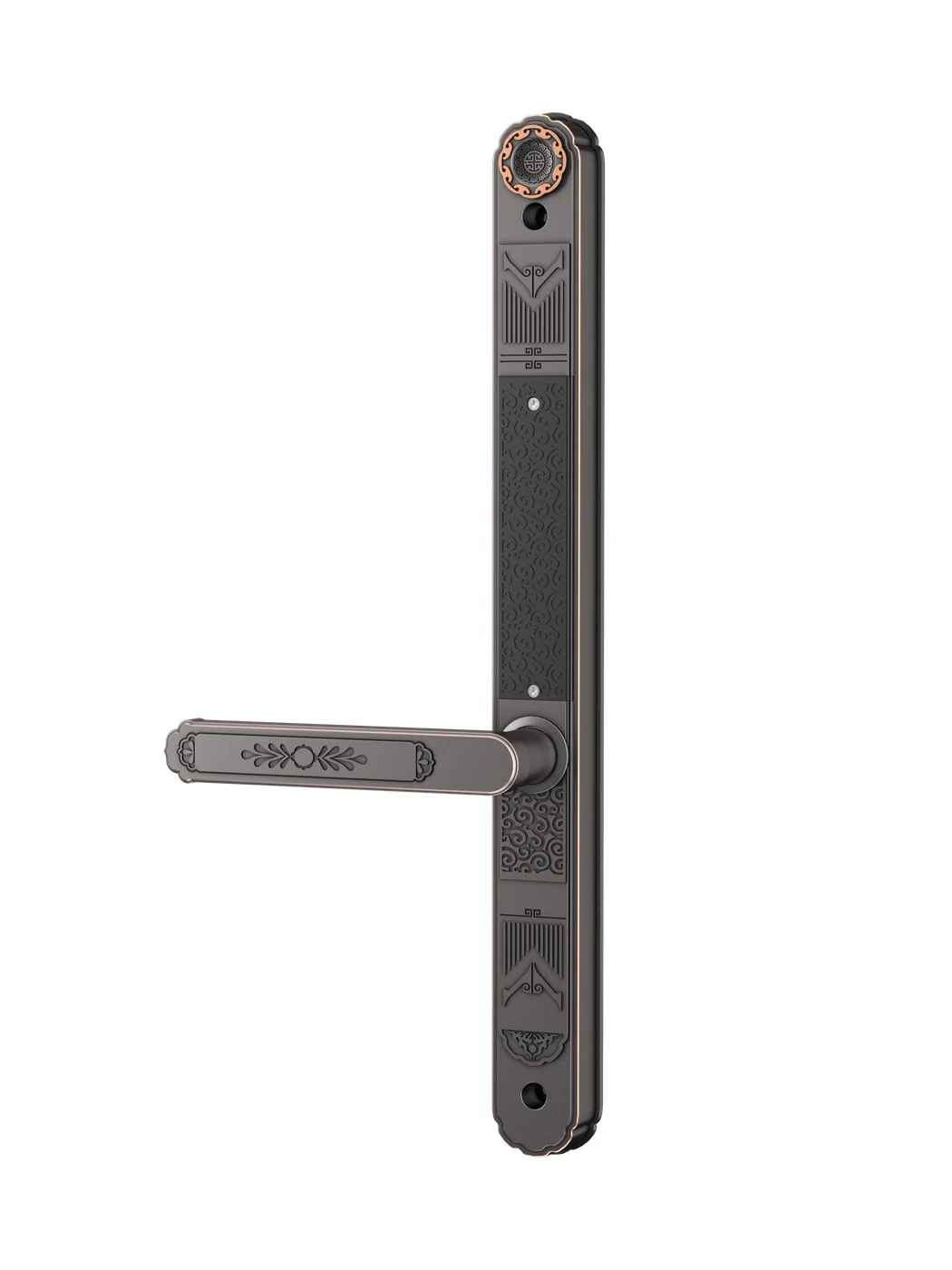

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.24 kg
- Unit size: 39 × 20 × 15.5 cm
- Carton size: 59 × 40 × 48 cm
- Quantity per carton: 4 sets

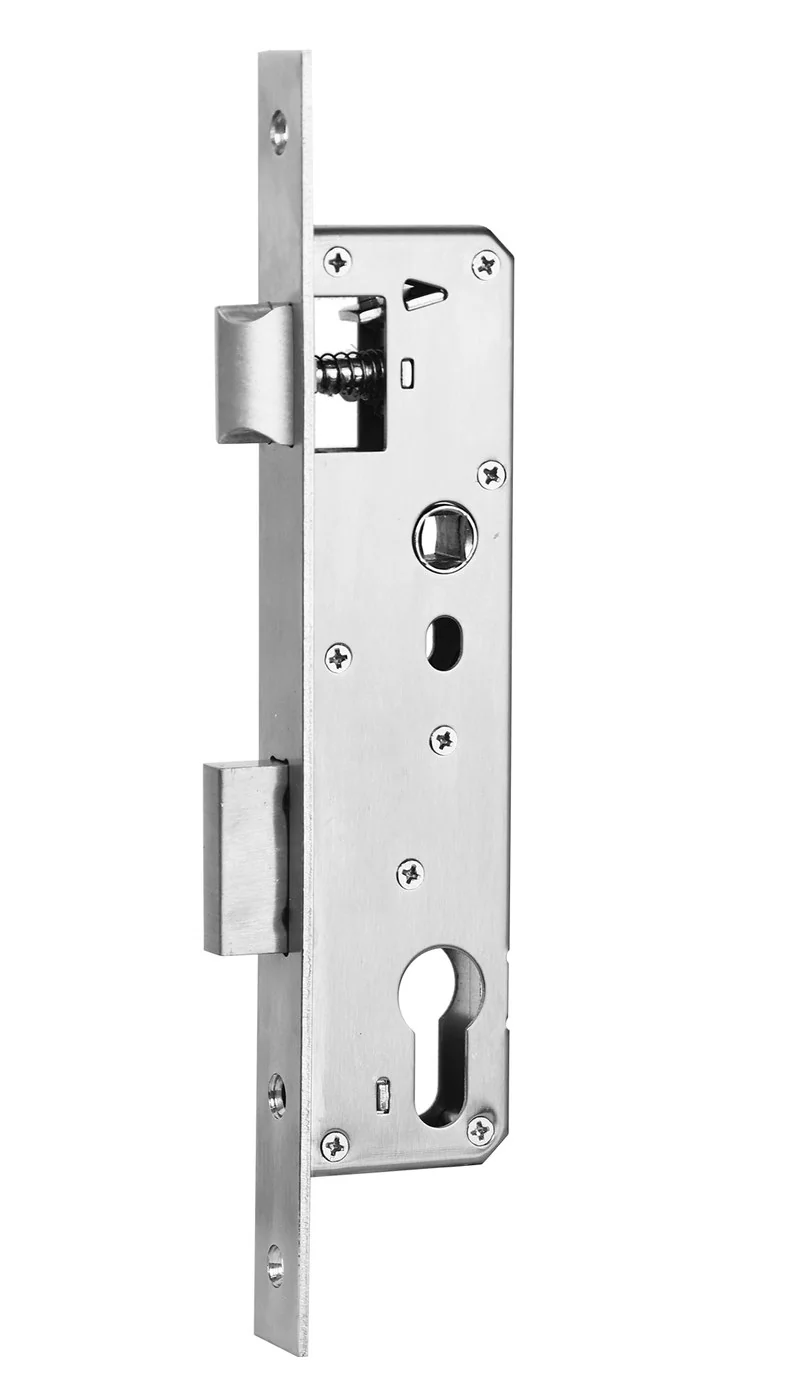

Standard Lock Body
The standard configuration uses a Thermally Broken Aluminum 8535 lock body. Buyers should provide the door profile, existing cutout details, opening direction and required spindle orientation for compatibility review before placing a bulk order.
OEM / ODM
OEM and ODM requirements for the DY lock can be discussed based on the project, including private labeling, finish requirements, export packaging and standalone or TTLock App configuration. Available customization options should be confirmed with sales before production.
For an accurate quotation, provide the door type, door profile or drawings, required quantity, preferred configuration and destination country.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | DY |
| Product category | Thermally Broken Aluminum Lock |
| Available versions | Standalone Lock / TTLock App |
| Protection rating | IP65 waterproof |
| Color | Antique bronze |
| Finish | ORB electroplated |
| Panel dimensions | 410 × 38 × 23 mm |
| Standard lock body | Thermally Broken Aluminum 8535 |
| Unit weight | 3.24 kg |
| Unit packaging size | 39 × 20 × 15.5 cm |
| Export carton size | 59 × 40 × 48 cm |
| Carton quantity | 4 sets |
FAQs
What type of door is the DY lock designed for?
The DY thermally broken aluminum lock is intended for thermally broken aluminum door systems using a compatible 8535 lock body. Final suitability depends on the door profile, cutout, opening direction and installation dimensions, which should be checked before ordering.
What operating configurations are available for this model?
The datasheet lists two configurations: a standalone lock and a TTLock App version. The specific credential or unlocking methods included with each configuration are not stated and should be confirmed with sales.
How can I confirm whether the 8535 lock body fits my door system?
Send the door profile drawing, existing lock-body dimensions, panel cutout, opening direction and photos of the door edge. Door thickness and other installation requirements are not specified in the datasheet and must be confirmed for each project.
Can the DY lock be supplied for OEM or bulk projects?
OEM and ODM requirements can be reviewed for private labeling, finish, packaging and operating configuration. Minimum order requirements and available customization depend on the requested specification and should be confirmed with sales.
What information is required to request a quotation?
Provide the required quantity, destination country, standalone or TTLock App preference, door type and available door drawings. Include any private-label, finish or packaging requirements so the sales team can evaluate the correct project configuration.
