DQRFID RFID Thermally Broken Aluminum Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The DQRFID RFID thermally broken aluminum lock is designed for commercial and project doors requiring a narrow 31 mm aluminum-alloy panel and card-based access. Its powder-coated gunmetal or silver finish can be paired with an optional round or square handle to suit different aluminum door designs.
This model is supplied with a Thermally Broken Aluminum 8530 lock body for compatible door systems. It is intended for distributors, project contractors, and OEM buyers who need a dedicated RFID configuration rather than a multi-method residential smart lock.
Key Features
- RFID induction card access for controlled entry
- Narrow 316 × 31 × 19 mm aluminum-alloy lock panel
- Designed for compatible thermally broken aluminum door systems
- Powder-coated gunmetal and silver finish options
- Optional round handle or square handle configuration
- Supplied with a Thermally Broken Aluminum 8530 lock body
- 2 kg packaged unit weight for project and export planning
- Packed 10 sets per export carton
- RFID cards are supplied separately; confirm the required card quantity with sales
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Length | 316 mm |
| Width | 31 mm |
| Height | 19 mm |

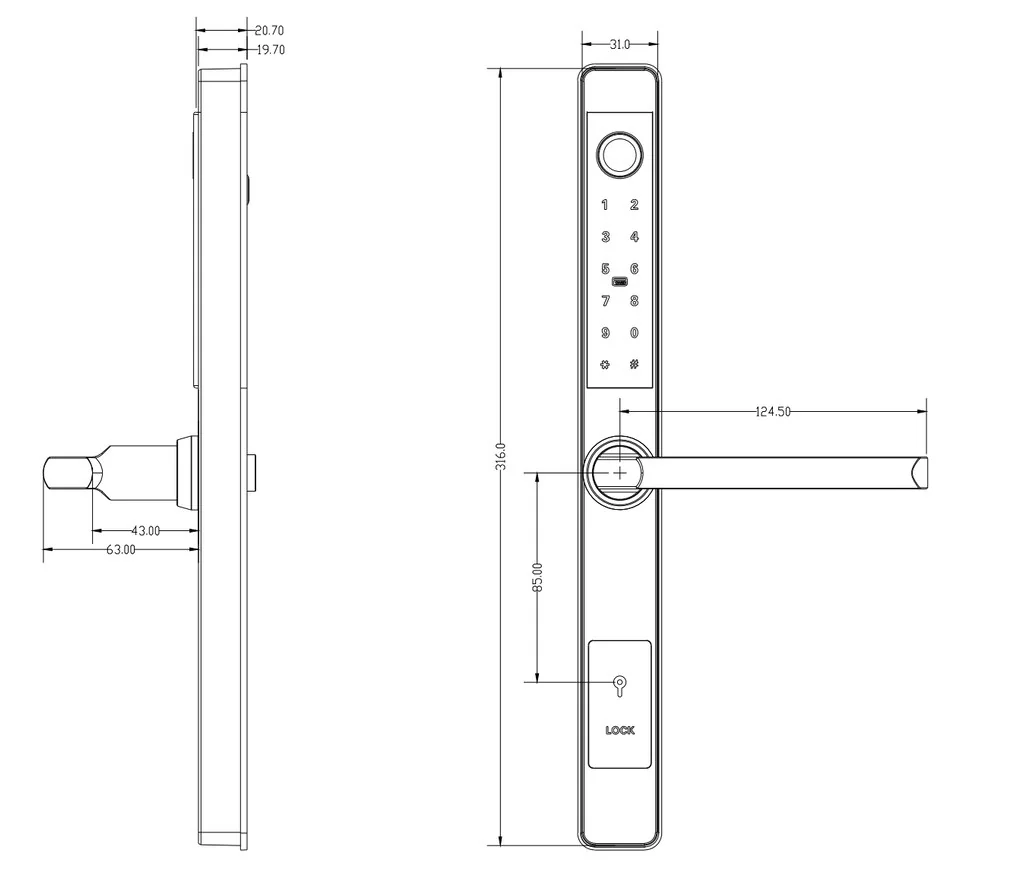

Dimension Drawing

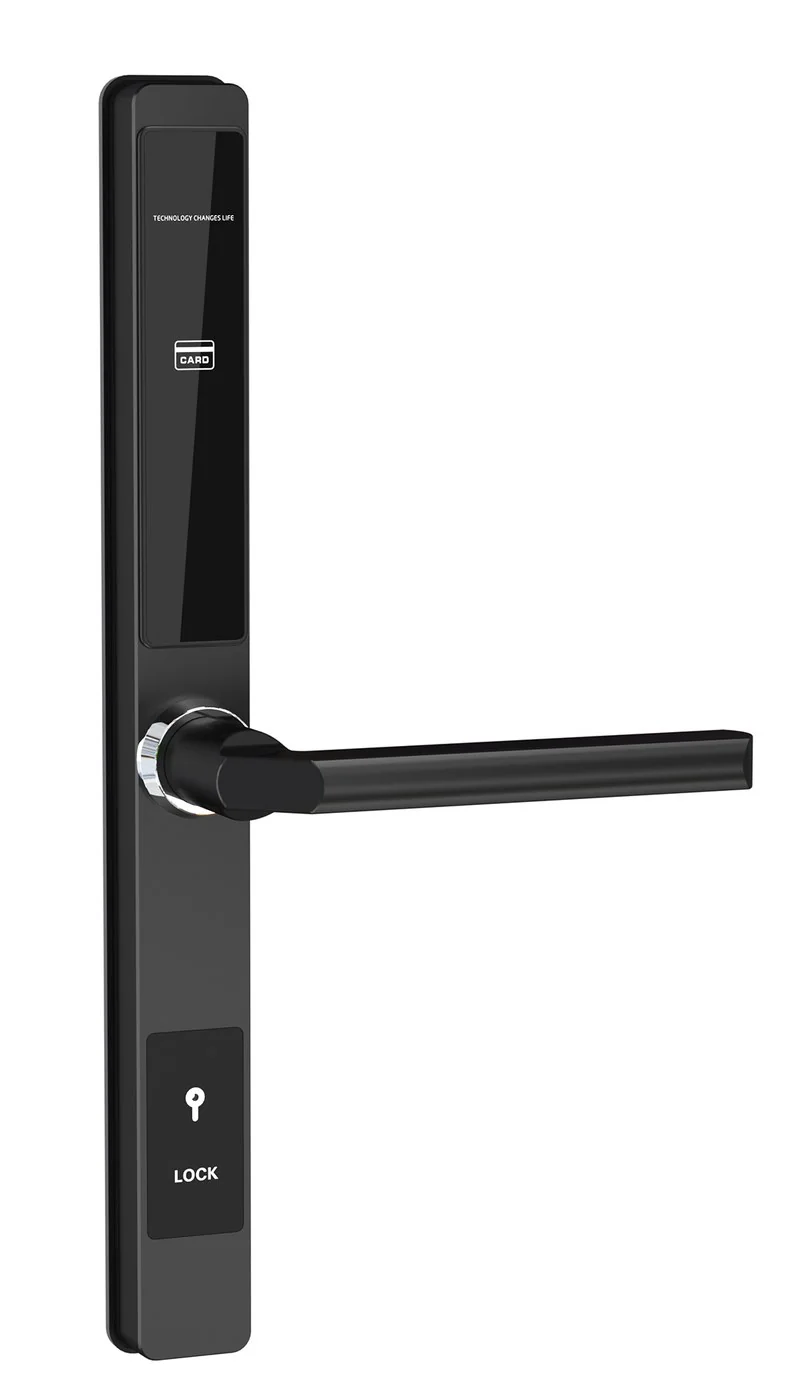

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- **Unit weight:** 2 kg
- **Unit package size:** 39 × 20 × 15.5 cm
- **Carton size:** 72 × 41 × 37.5 cm
- **Quantity per carton:** 10 sets

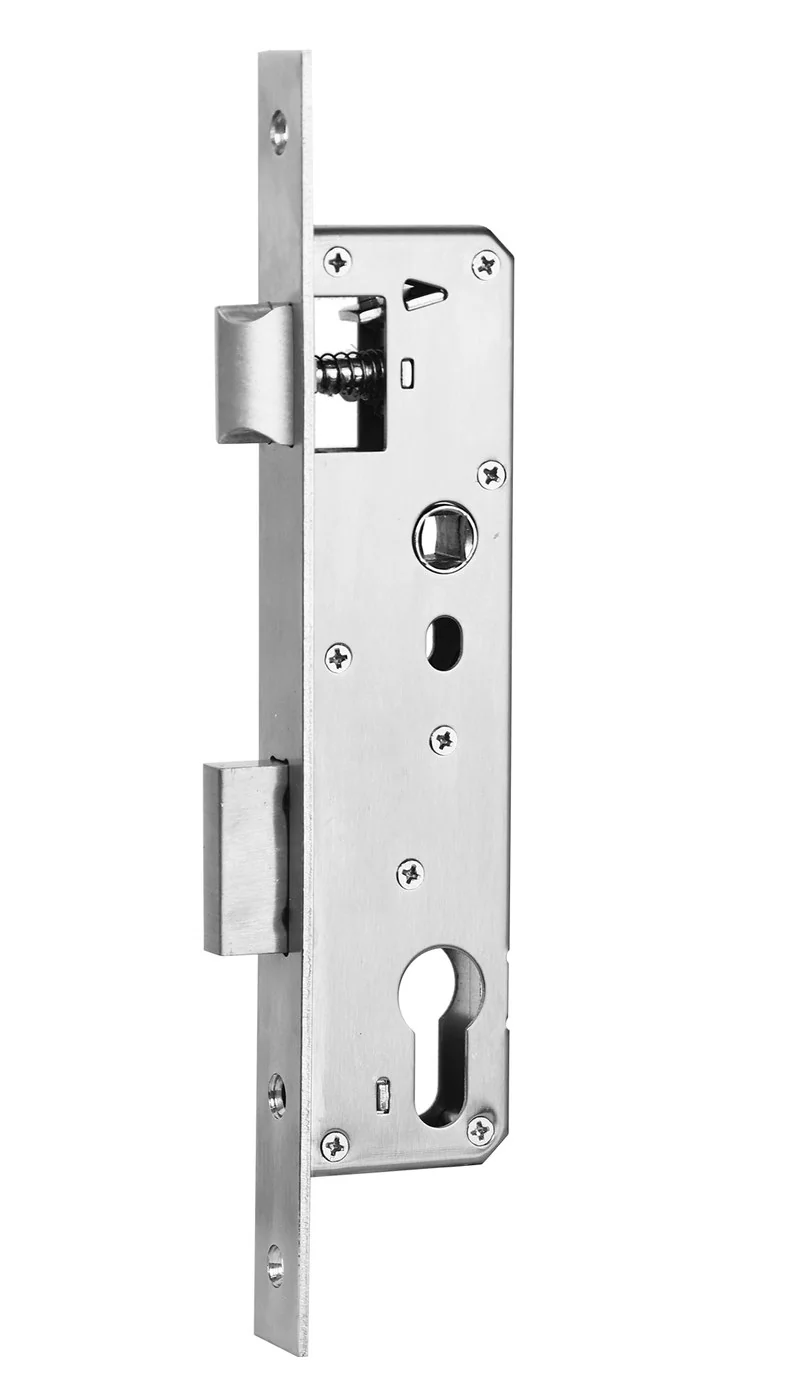

Standard Lock Body
The standard configuration includes a Thermally Broken Aluminum 8530 lock body. Buyers should confirm the existing door profile, mortise dimensions, opening direction, and installation drawings before placing a project order.
OEM / ODM
OEM and ODM requirements can be discussed based on the intended door system and project specifications. The documented product options include gunmetal or silver powder-coated finishes and a choice of round or square handles.
Private labeling, customized packaging, RFID card quantities, electronic-board configurations, and APP requirements should be confirmed with sales because these options are not specified in the standard datasheet. For an accurate quotation, provide the door type, door profile or drawing, required quantity, handle preference, finish, card quantity, and destination country.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | DQRFID Version |
| Product category | Thermally Broken Aluminum Lock |
| Access method | RFID induction card |
| Main material | Aluminum alloy |
| Available colors | Gunmetal / Silver |
| Surface finish | Powder-coated |
| Handle options | Round handle / Square handle |
| Panel dimensions | 316 × 31 × 19 mm |
| Standard lock body | Thermally Broken Aluminum 8530 |
| Unit weight | 2 kg |
| Carton quantity | 10 sets |
| APP / Connectivity | Confirm with sales |
FAQs
What type of door is the DQRFID lock designed for?
The DQRFID RFID Thermally Broken Aluminum Lock is intended for compatible thermally broken aluminum door systems. Its narrow 31 mm panel makes it relevant for aluminum profiles, but the door profile and installation dimensions must be checked before ordering.
Which unlocking methods does this model support?
This version uses RFID induction card access. No fingerprint, keypad, mechanical key, APP, Bluetooth, or Wi-Fi access method is stated in the supplied datasheet, so any additional requirement should be confirmed with sales.
How do I confirm whether the 8530 lock body fits my door?
Provide the door profile drawing, existing mortise dimensions, door opening direction, and installation photos. The standard package uses a Thermally Broken Aluminum 8530 lock body, but compatibility depends on the construction of the specific aluminum door system.
Can this model be customized for OEM orders?
OEM requirements for branding, packaging, finish, handle type, RFID card quantity, and electronic configuration can be reviewed for the DQRFID model. Minimum order quantity and customization feasibility should be confirmed with sales according to the requested specification.
What information is needed to request a quotation?
Send the required quantity, destination country, door type, door profile or technical drawing, preferred gunmetal or silver finish, round or square handle choice, and required RFID card quantity. Also state whether you need private labeling, customized packaging, or a specific electronic or APP configuration.
