DQ Keypad Thermally Broken Aluminum Lock with Standalone or TTLock Solution
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The DQ keypad thermally broken aluminum lock is designed for aluminum door projects requiring a narrow 31 mm panel and keypad-based access control. Buyers can select either a standalone electronic configuration or a TTLock solution, depending on the required management method.
Its aluminum-alloy construction, IP65 waterproof rating and 8530 thermally broken aluminum lock body make this model suitable for distributors, door manufacturers and project contractors evaluating an integrated lock set for narrow-frame aluminum door systems.
Key Features
- DQ narrow-panel design for thermally broken aluminum doors
- Keypad access for code-based entry
- Available as a standalone lock without APP management
- Optional TTLock solution for projects requiring an APP-based system
- Aluminum-alloy front and rear panel construction
- IP65 waterproof protection
- Gunmetal and silver color options
- Slim panel width of 31 mm
- Supplied with a Thermally Broken Aluminum 8530 lock body
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Panel length | 316 mm |
| Panel width | 31 mm |
| Panel height/depth | 21.5 mm |

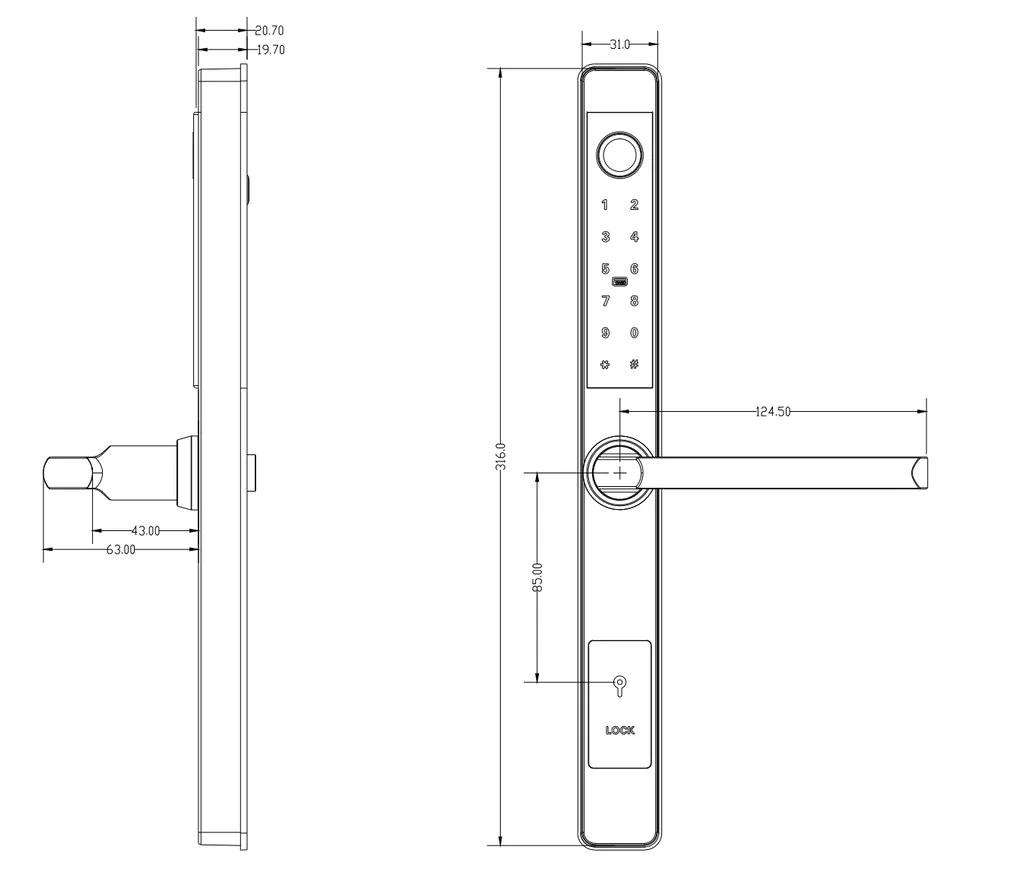

Dimension Drawing
Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 2 kg
- Unit package size: 39 × 20 × 15.5 cm
- Export carton size: 72 × 41 × 37.5 cm
- Quantity per carton: 10 sets

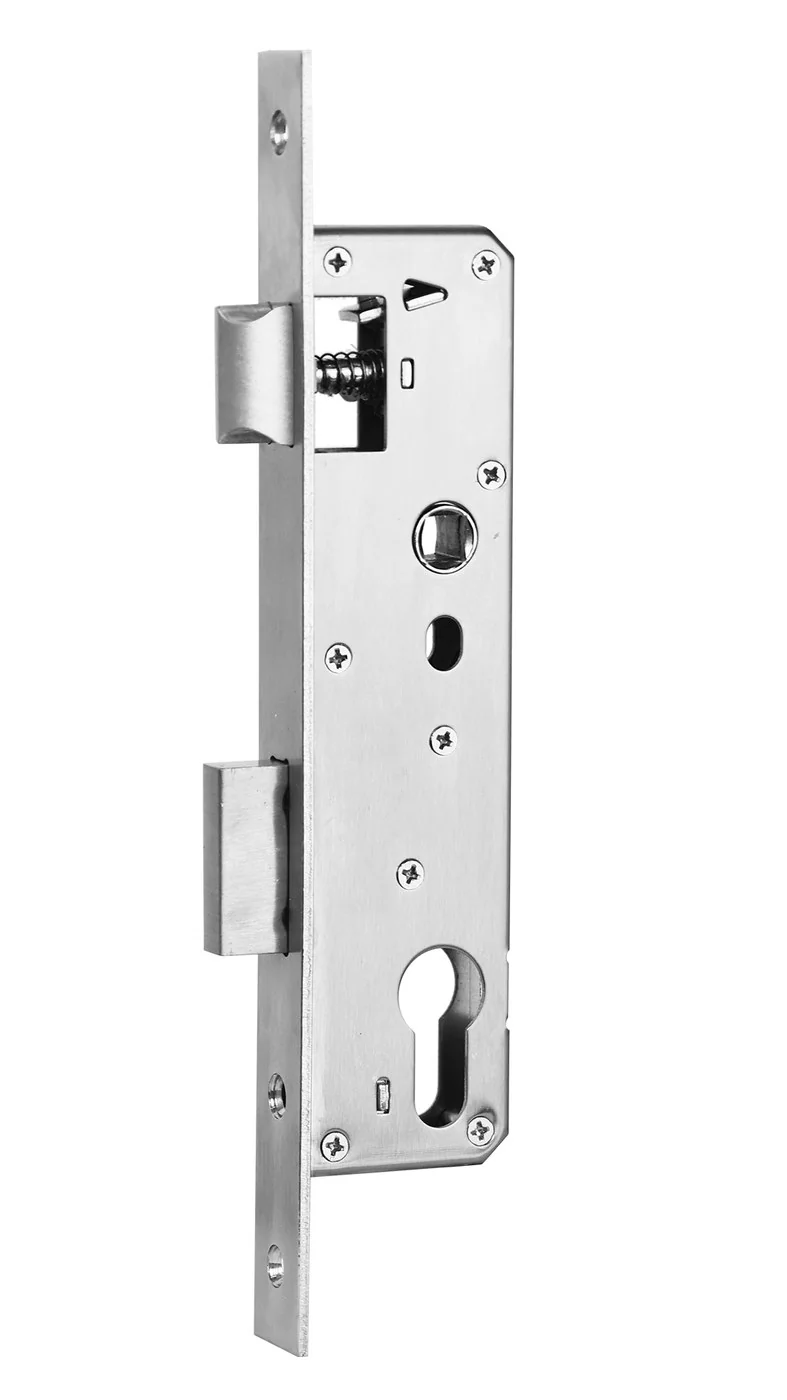

Standard Lock Body
The standard configuration uses a Thermally Broken Aluminum 8530 lock body. Buyers should provide the door profile, existing lock-body dimensions, opening direction and installation drawings so compatibility can be confirmed before bulk production.
OEM / ODM
OEM and ODM enquiries are accepted for distributor programs, aluminum door manufacturers and project supply orders. Private labeling, gunmetal or silver finish selection, customized packaging and selection between the standalone and TTLock electronic solutions can be discussed according to the order requirements.
Control-board, APP and other project-specific configuration requests should be confirmed with sales. For an accurate quotation, provide the door type, door profile or drilling drawing, required quantity, preferred solution and destination country.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | DQ |
| Product category | Thermally Broken Aluminum Lock |
| Access method | Keypad |
| Electronic options | Standalone lock or TTLock solution |
| Panel material | Aluminum alloy |
| Available colors | Gunmetal, silver |
| Protection rating | IP65 waterproof |
| Panel dimensions | 316 × 31 × 21.5 mm |
| Standard lock body | Thermally Broken Aluminum 8530 |
| Unit weight | 2 kg |
| Unit package | 39 × 20 × 15.5 cm |
| Export carton | 72 × 41 × 37.5 cm |
FAQs
What type of door is the DQ keypad lock designed for?
The DQ keypad thermally broken aluminum lock is intended for thermally broken aluminum door systems and other compatible narrow-frame aluminum profiles. Its panel is 31 mm wide, but final suitability must be checked against the door profile, drilling layout and 8530 lock-body requirements.
Which unlocking methods are available on this model?
This model uses keypad access. It is offered in two electronic configurations: a standalone version and a TTLock solution.
How can I confirm that the 8530 lock body fits my aluminum door?
Provide the door profile drawing, existing mortise dimensions, handle position, opening direction and installation-hole layout. The sales or technical team can compare these details with the Thermally Broken Aluminum 8530 lock body before the order is confirmed.
Can this model be customized for an OEM or distributor order?
OEM and ODM requirements can be discussed for private labels, packaging, color selection and electronic configuration. No fixed MOQ is stated in the datasheet, so the applicable MOQ should be confirmed with sales based on the requested customization.
What information is required to request a quotation?
Send the required quantity, destination country, preferred color and choice of standalone or TTLock solution. Include the door type, door profile dimensions, opening direction and lock-body or drilling drawing where available.
