2067Password TTLock Security Door Keypad Lock with Voice Keypad
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The 2067Password is a security door keypad lock developed for distributors, access-control suppliers, residential project contractors, and OEM customers. It combines password access with the TTLock solution in a 375 mm gunmetal aluminum-alloy panel.
This voice keypad version uses an 8534 mainboard and is supplied with a Security 6068 lock body. Its long, narrow panel format is intended for security door projects where keypad access and APP-based management are required.
Key Features
- Password access through the integrated voice keypad
- TTLock solution for APP-based lock management
- Voice keypad version for guided keypad operation
- 8534 mainboard configuration
- Powder-coated aluminum-alloy construction
- Gunmetal panel finish
- Long-panel design measuring 375 × 75 × 22 mm
- Security 6068 lock body supplied as standard
- Project packaging with 8 complete sets per carton
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Specification | Measurement |
| Panel Length | 375 mm |
| Panel Width | 75 mm |
| Panel Height | 22 mm |
| Unit Package Size | 415 × 225 × 160 mm |
| Carton Size | 575 × 415 × 430 mm |

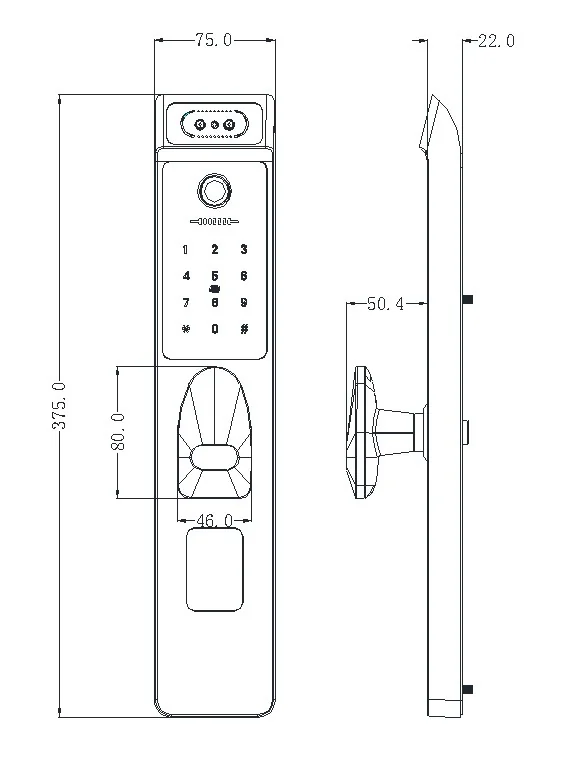

Dimension Drawing
Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.33 kg
- Unit package size: 41.5 × 22.5 × 16 cm
- Master carton size: 57.5 × 41.5 × 43 cm
- Quantity per carton: 8 sets

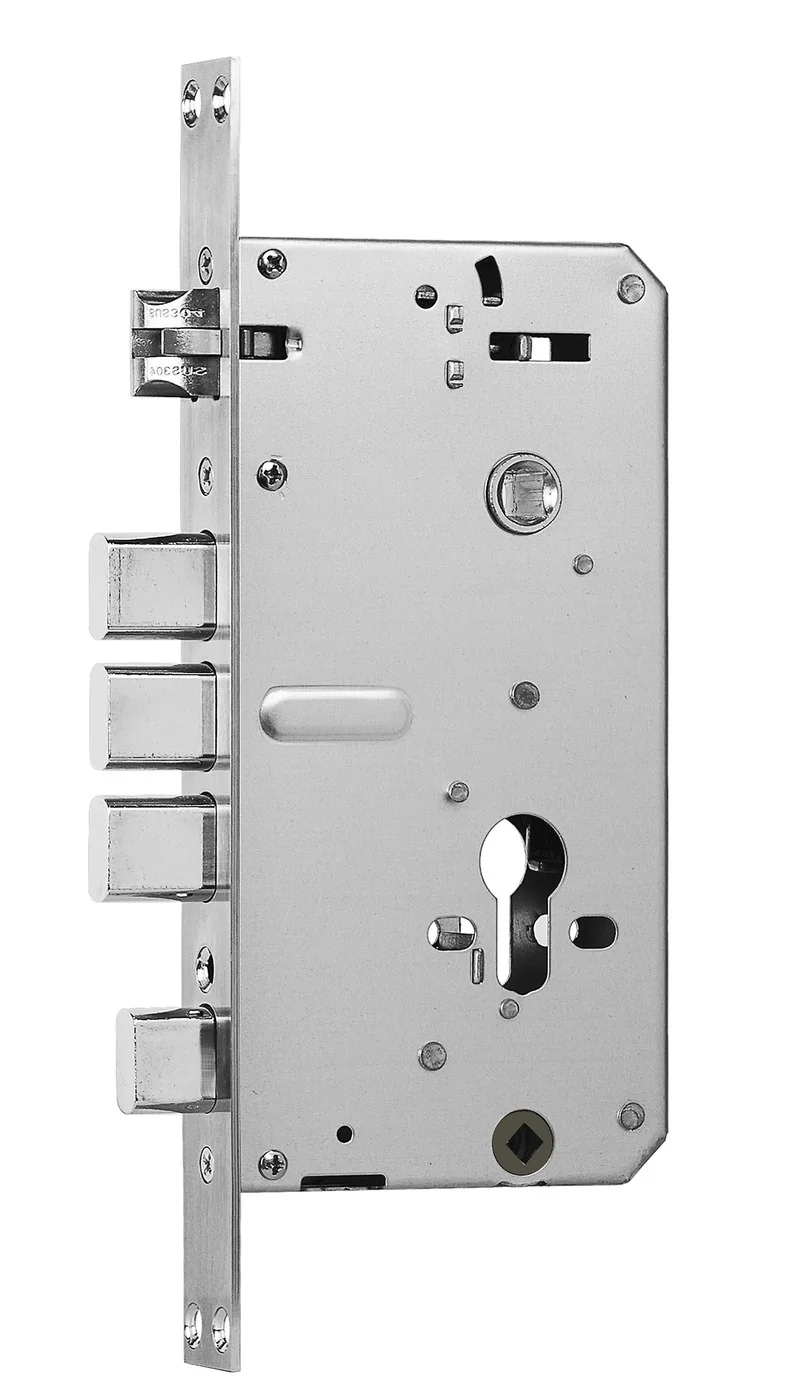

Standard Lock Body
The standard configuration includes a Security 6068 lock body. Buyers should provide the existing door preparation, backset requirements, opening direction, and lock-body drawing before order confirmation.
Compatibility with a specific security door should be checked against the supplied lock-body dimensions drawing. Alternative lock-body requirements should be confirmed with sales before production.
OEM / ODM
The 2067Password can be discussed for distributor branding, project supply, and OEM/ODM orders. Private-label marking, finish requirements, packaging design, mainboard configuration, and APP options are subject to order requirements and technical confirmation.
For an accurate quotation, provide the door type, required lock-body specification, opening direction, order quantity, branding requirements, and destination country. Request a quote with door drawings or installation dimensions when available.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | 2067Password APP |
| Product Category | Security Door Keypad Lock |
| Access Methods | Password, TTLock APP |
| Operating Version | Voice Keypad Version |
| Software Solution | TTLock |
| Mainboard | 8534 |
| Material | Aluminum Alloy |
| Finish | Powder-Coated |
| Color | Gunmetal |
| Panel Dimensions | 375 × 75 × 22 mm |
| Standard Lock Body | Security 6068 |
| Unit Weight | 3.33 kg |
FAQs
What type of door is the 2067Password designed for?
The 2067Password is designed as a keypad lock for security door applications. Final suitability depends on the door structure, opening direction, existing cutouts, and compatibility with the Security 6068 lock body.
Which unlocking methods does this model support?
This model supports password unlocking through the voice keypad and management through the TTLock APP solution. Any additional access methods should not be assumed and must be confirmed with sales.
How can I confirm whether the Security 6068 lock body fits my door?
Send the door preparation drawing, existing mortise dimensions, backset, opening direction, and door-edge photos for review. The supplied Security 6068 drawing should be compared with the project door before placing a bulk order.
Is OEM or private-label production available?
OEM/ODM requirements can be discussed for the 2067Password, including branding, finish, packaging, mainboard, and APP-related configurations. Available options and minimum order requirements depend on the requested specification and should be confirmed with sales.
What information is required for a quotation?
Provide the required quantity, destination country, door type, opening direction, lock-body requirements, branding details, and packaging preferences. Door drawings and current lock-body dimensions will help the sales team verify compatibility and prepare an accurate quotation.
