Split02-Y Powder-Coated Silver RFID Hotel Door Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The Split02-Y RFID hotel door lock is designed for hospitality buyers, distributors, and project contractors sourcing a zinc alloy electronic locking solution with a compact split-panel layout. Its powder-coated silver finish and separate upper reader cover and handle cover provide a distinctive configuration for hotel door projects requiring RFID access.
This RFID version is supplied with a 3 reverse-mount lock body. Before ordering, buyers should confirm door preparation, handing, RFID card system compatibility, and installation requirements with the sales team.
Key Features
- RFID unlocking configuration for hotel access applications
- Split-panel design with separate upper reader and handle covers
- Zinc alloy construction
- Powder-coated silver surface finish
- Compact 77 × 77 mm upper front cover
- 77 × 77 × 71 mm front handle cover
- Supplied with a 3 reverse-mount lock body
- Packed 10 sets per export carton
- Suitable for distributor, hotel project, and OEM/ODM enquiries
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Upper front cover | 77 mm |
| Front handle cover | 77 mm |

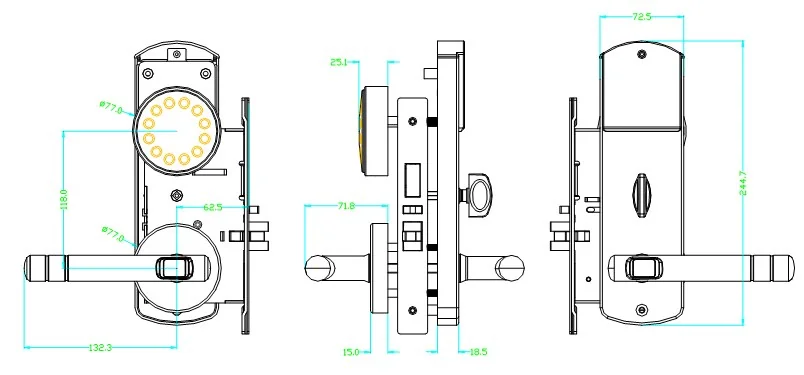

Dimension Drawing

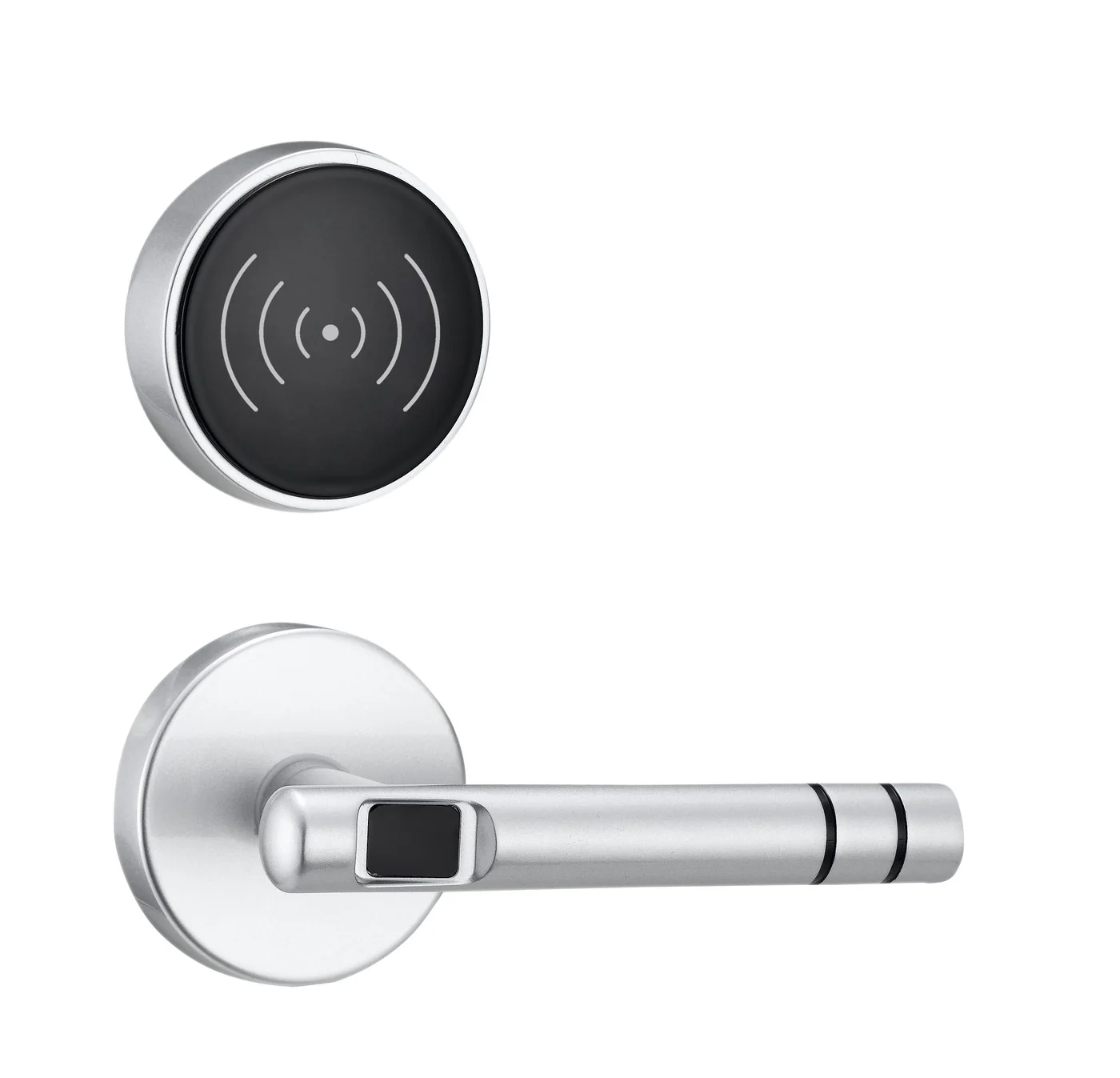

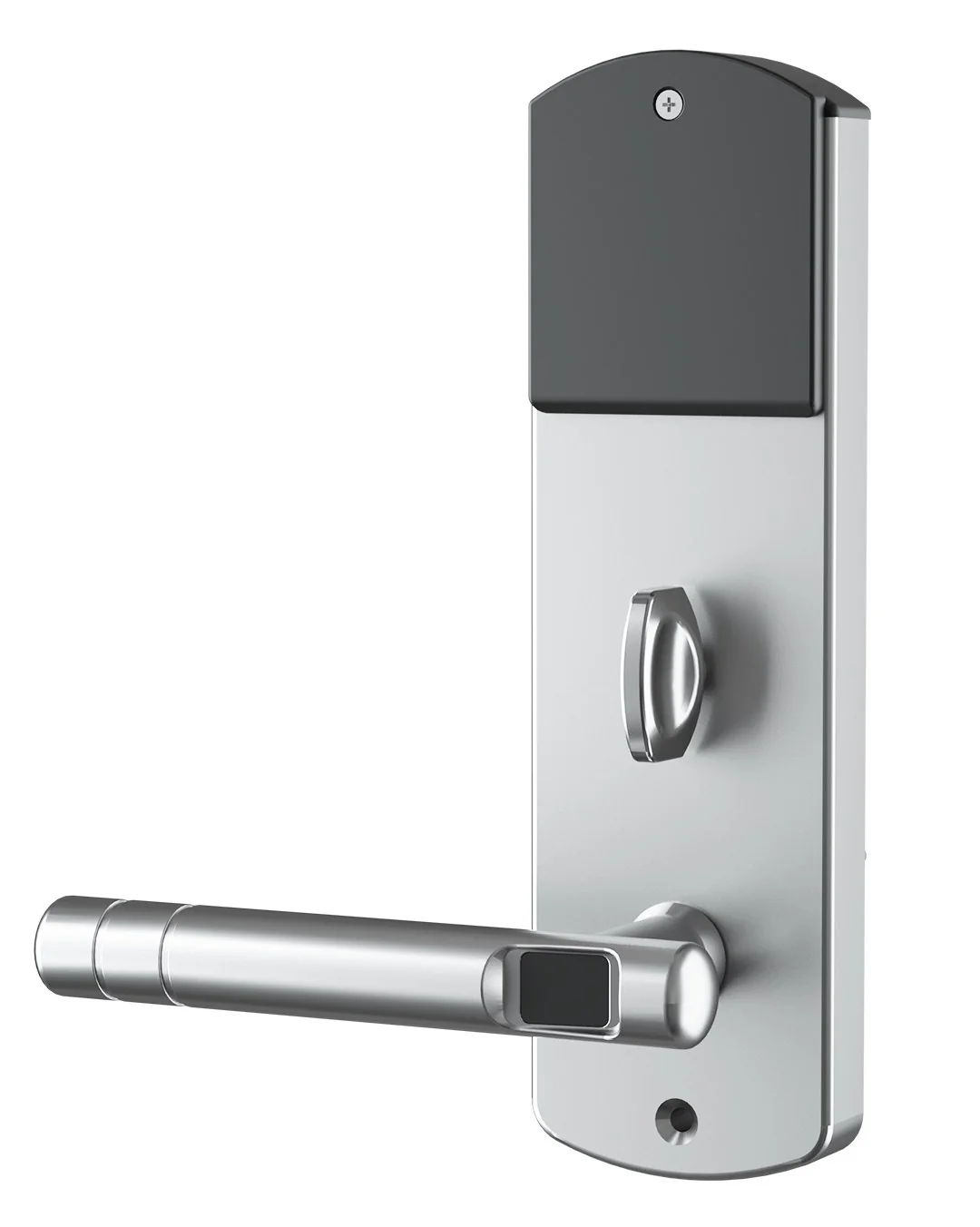

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.02 kg
- Unit size: 31 × 21 × 16 cm
- Carton size: 74 × 32 × 42 cm
- Quantity: 10 sets per carton
Standard Lock Body
The Split02-Y is listed with a 3 reverse-mount lock body. Buyers should provide door drawings, opening direction, existing mortise details, and installation requirements so the lock-body fit can be confirmed before bulk production.
OEM / ODM
OEM and ODM requirements for the Split02-Y can be discussed according to the project. Private labeling, finish changes, customized packaging, and control board or APP requirements are subject to technical and commercial confirmation with sales.
For an accurate quotation, provide the required quantity, door type, door handing, destination country, RFID system requirements, and any requested branding or packaging changes.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | Split02-Y |
| Product category | Hotel RFID Lock |
| Version | RFID version |
| Unlock method | RFID |
| Main material | Zinc alloy |
| Color / finish | Powder-coated silver |
| Upper front cover | 77 × 77 × 25 mm |
| Front handle cover | 77 × 77 × 71 mm |
| Standard lock body | 3 reverse-mount lock body |
| Unit weight | 3.02 kg |
| Unit packaging size | 31 × 21 × 16 cm |
| Export carton size | 74 × 32 × 42 cm |
FAQs
What type of project is the Split02-Y intended for?
The Split02-Y is an RFID hotel door lock intended for hospitality projects, hotel lock distributors, renovation contractors, and OEM/ODM buyers. Door preparation and installation compatibility should be checked before ordering.
Which unlocking methods does this model support?
This version supports RFID unlocking. Keypad, fingerprint, mobile APP, and other unlocking methods are not specified for this SKU.
Can this lock work with an existing hotel card management system?
RFID card system compatibility is not stated in the datasheet. Buyers should provide details of the existing encoder, cards, software, and management system for confirmation with sales.
Is OEM branding available, and what is the MOQ?
OEM/ODM requirements for the Split02-Y, including branding, finish, packaging, and electronic configuration, should be discussed with sales. MOQ depends on the requested customization and order details; no fixed MOQ is stated in the datasheet.
What information is needed to request a quotation?
Send the required quantity, destination country, door type, door handing, lock-body requirements, and RFID system details. Include any private-label, finish, packaging, control board, or APP requirements that need to be evaluated.
