Split02-Gunmetal Zinc Alloy RFID Hotel Lock
PRODUCT PARAMETERS
Description
Configuration notice: Features, APP/platform, protection rating, battery, lock body, and accessories depend on the quoted model and version. Confirm the final specification in writing before ordering.
Product Overview
The Split02-Gunmetal is an RFID hotel lock developed for hospitality projects requiring a substantial zinc alloy housing and a dark powder-coated finish. Its split-panel format, gunmetal appearance, and specified 3 reverse-mount lock body make this SKU suitable for hotel buyers, distributors, and contractors evaluating lock compatibility for new installations or refurbishment projects.
The model operates through RFID access. Hotel card compatibility, management software, encoder requirements, and connectivity configuration should be confirmed with sales before ordering.
Key Features
- RFID access configuration for hotel guestroom applications
- Split-panel hotel lock design
- Zinc alloy construction
- Powder-coated gunmetal finish
- Rear cover dimensions of 244 × 72 × 75 mm
- Supplied with a 3 reverse-mount lock body
- Individual set weight of 3.02 kg
- Packed 10 sets per export carton
- Suitable for distributor, contractor, and OEM/ODM project enquiries
Specification Size (MM)
| Dimension | Size (MM) |
|---|---|
| Rear cover | 244 mm |

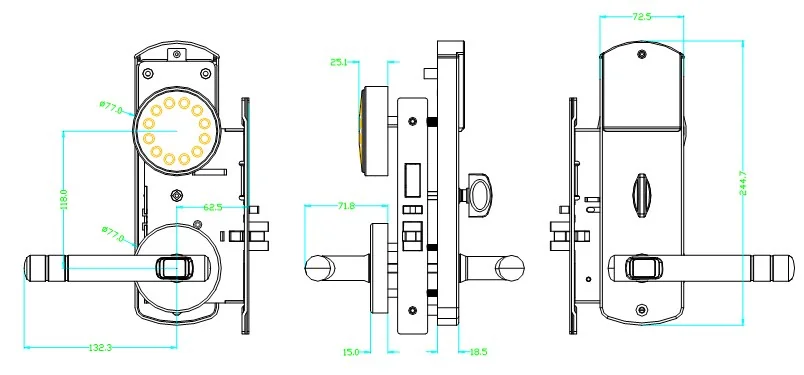

Dimension Drawing

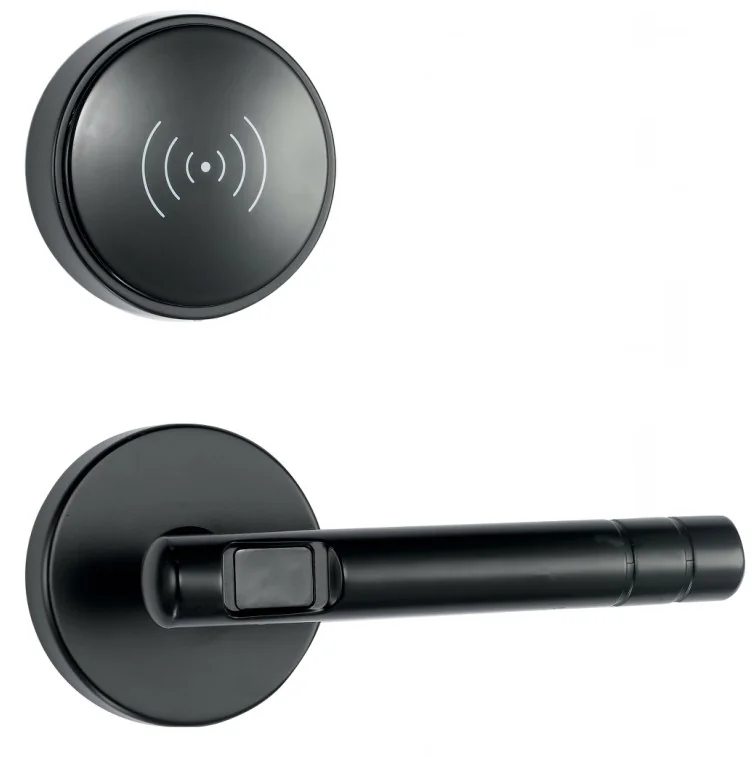

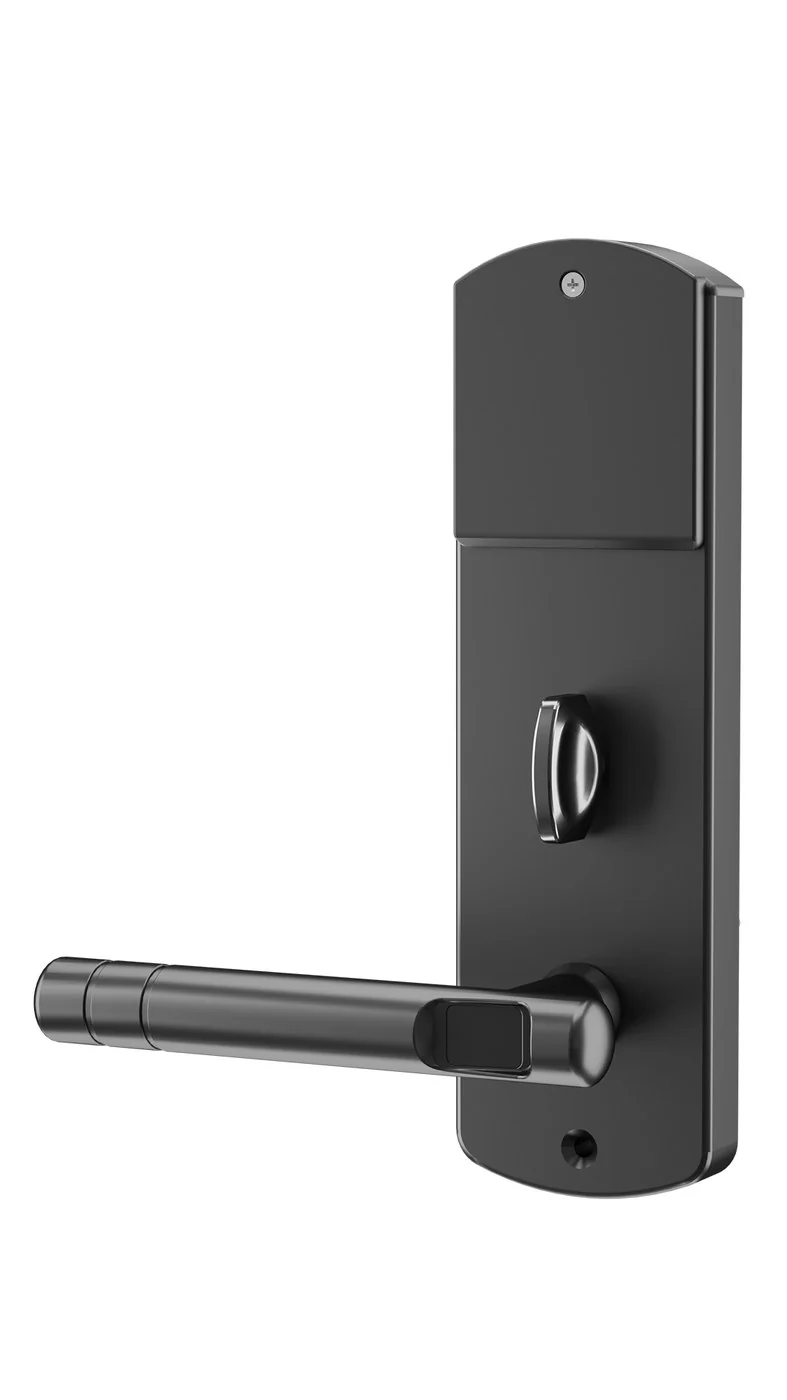

Product Photos
Product views from the datasheet. Use the left gallery to switch and zoom.
Packaging
- Unit weight: 3.02 kg
- Unit size: 31 × 21 × 16 cm
- Carton size: 74 × 32 × 42 cm
- Packing quantity: 10 sets per carton
Standard Lock Body
The standard configuration includes a 3 reverse-mount lock body. Buyers should provide the existing door preparation, opening direction, mortise dimensions, and installation drawings for compatibility confirmation before bulk production.
OEM / ODM
For OEM or ODM evaluation, provide the required branding, finish, packaging format, RFID system requirements, order quantity, destination country, and project schedule. Availability of private labeling, alternative finishes, customized packaging, management software, card encoders, or other electronic configurations must be confirmed with sales.
Request a quotation with the hotel door type, door preparation details, required quantity, destination port or address, and preferred delivery terms.
Technical Snapshot
| Item | Specification |
|---|---|
| Model | Split02-Gunmetal |
| Product category | Hotel RFID Lock |
| Access method | RFID |
| Main material | Zinc alloy |
| Color / finish | Powder-coated gunmetal |
| Rear cover dimensions | 244 × 72 × 75 mm |
| Standard lock body | 3 reverse-mount lock body |
| Unit weight | 3.02 kg |
| Unit packaging size | 31 × 21 × 16 cm |
| Carton size | 74 × 32 × 42 cm |
| Quantity per carton | 10 sets |
| APP / connectivity | Not specified; confirm with sales |
FAQs
What type of project is the Split02-Gunmetal designed for?
The Split02-Gunmetal is designed as an RFID hotel lock for hospitality door projects. Its zinc alloy construction, split-panel format, gunmetal finish, and reverse-mount lock body should be checked against the project’s door preparation and installation requirements.
Which unlocking method does this model support?
This model is specified as the RFID version and uses RFID credentials for access. Mechanical override, mobile APP access, keypad entry, or other unlocking methods are not listed in the datasheet and should not be assumed.
Is it compatible with an existing hotel card management system?
Hotel card type, encoder, software, and management-system compatibility are not specified in the datasheet. Provide the current card technology and hotel system information to sales for confirmation before placing an order.
Can this lock be supplied for OEM projects, and what is the MOQ?
OEM or ODM requirements for the Split02-Gunmetal can be submitted for evaluation, including branding, finish, packaging, and electronic system requirements. The minimum order quantity and available customization options must be confirmed with sales based on the requested configuration.
What information is required to request a quotation?
Provide the required quantity, destination country, hotel door type, door opening direction, existing mortise or lock-body dimensions, RFID system requirements, and preferred trade terms. Installation drawings or door preparation photos will help the supplier review compatibility and prepare an accurate quotation.
